Efficiencies
| Total System Efficiency | 130 lm/W |
|---|---|
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |

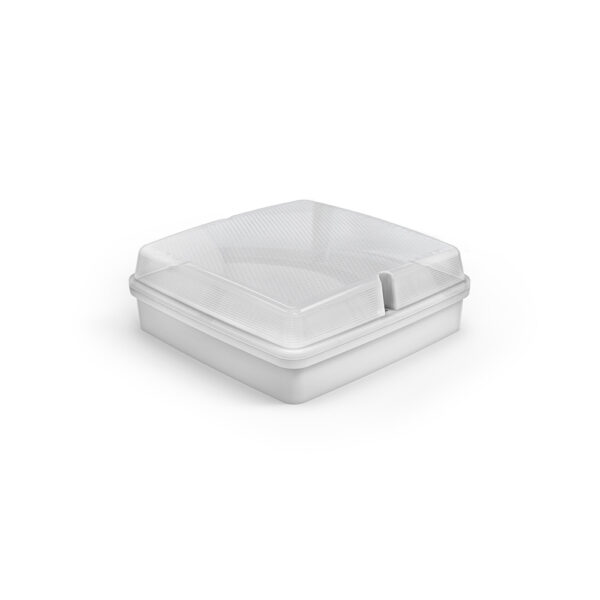

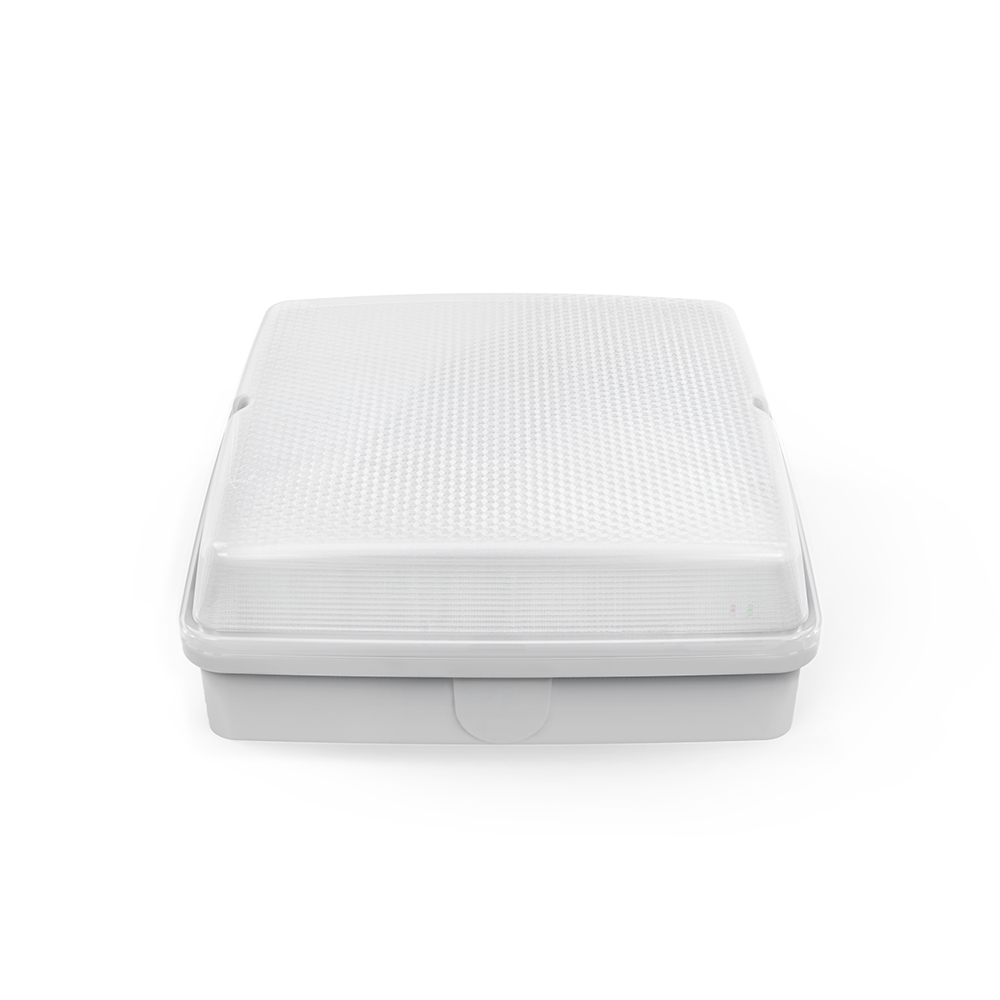

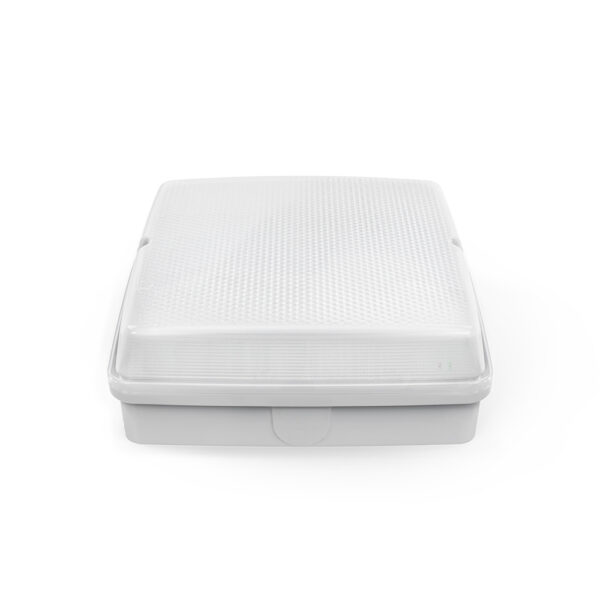

Mechanical

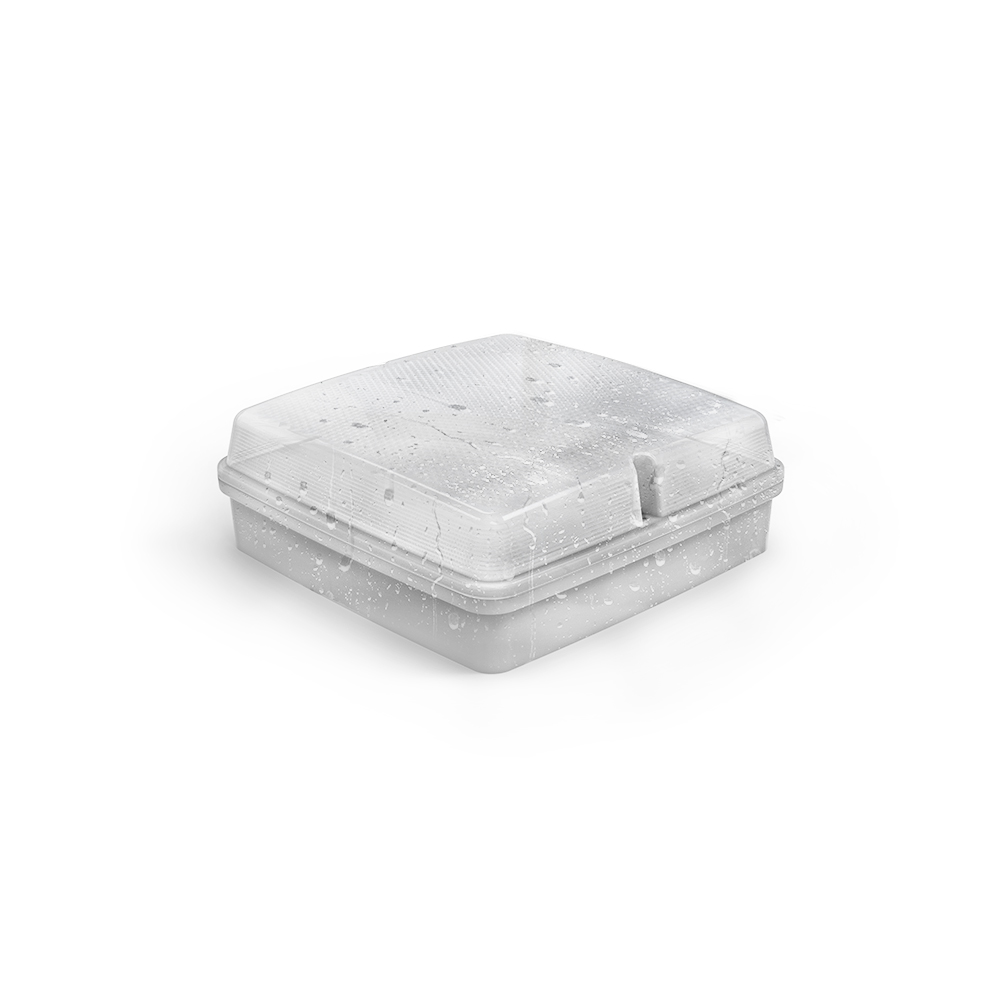

| Body Material | Polycarbonate |
|---|---|
| Diffuser Material | Polycarbonate |
| IK Rating | IK08 |
| Installation Type | Surface mount |
| IP Rating | IP65 |
Electrical
| Electrical Rating | Class I |
|---|---|
| Input Frequency | 50 Hz |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| System Max Wattage | |
| EV-QUADRO-ADV EV-QUADRO-ADV-S | 20 W |
| EV-QUADRO-EM-ADV EV-QUADRO-EM-ADV-S | 23 W |
| Working Temp Range | 0 to 40 °C |
Lamp
| Macadam Steps (SDCM) | 5-step MacAdam Ellipse |
|---|---|
| Colour Rendering Index (CRI) | >80 |
| Lamp/LED Current | 460 mA |
| Lamp/LED voltage | 36 V |
| CCT Configuration | TRI-CCT |
LED Lifetime
| LED Lifetime Ratings (Failure rate & lumen depreciation) | |||||||
|---|---|---|---|---|---|---|---|
EV-QUADRO-ADV |
| ||||||
EV-QUADRO-ADV-S |
| ||||||
EV-QUADRO-EM-ADV |
| ||||||
EV-QUADRO-EM-ADV-S |
| ||||||
| This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717. | |||||||
| TM-21 Test Hours | 9000 hrs | ||||||
Colour temperature
| 9 Watts | |
|---|---|
| 3000 K | 1100 lm |
| 4000 K | 1350 lm |
| 6000 K | 1300 lm |
| 18 Watts | |
| 3000 K | 2200 lm |
| 4000 K | 2650 lm |
| 6000 K | 2600 lm |
Driver
| Dimmable | No |
|---|---|
| Driver Included | Yes |
| Integrated Driver | No |
| Driver Type | Fixed output |
| PSTLM | 0.09 |
| SVM | 0.01 |
| Wiring Type | |
| EV-QUADRO-ADV EV-QUADRO-ADV-S | Re-wireable terminal block (3 pin) |
| EV-QUADRO-EM-ADV EV-QUADRO-EM-ADV-S | Re-wireable terminal block (4 pin) |
Sensor (S suffix)
| Adjustable Detection Area / Sensitivity | Yes |
|---|---|
| Adjustable Hold Time | Yes |
| Adjustable Standby Level | Yes |
| Adjustable Standby Period | Yes |
| Corridor Function | Yes |
| Detection Range | 10 m |
| Dusk Mode | Yes |
| Lux Adjustment | Yes |
| Sensor Type | Microwave |
| Switched Output | No |
| Time Delay | 5s-14mins |
Emergency (EM suffix)
| Replacement Battery Code | 1302 |
|---|---|
| Emergency Classification | C0:D50, C90:D50 |
| Emergency Duration | 90 mins |
| Emergency Mode | Maintained |
Compliance
| Product Design Life | 8 years |
|---|---|
| The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
| Standards |
|
Warranty
| Commercial Use Warranty | |
|---|---|
| EV-QUADRO-ADV EV-QUADRO-ADV-S | 5 RTB (Total 5 Years) |
| EV-QUADRO-EM-ADV EV-QUADRO-EM-ADV-S | 5 RTB General, 6 RTB Emergency |
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
| VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered. | |
