24V Constant Voltage IP67

$0.00

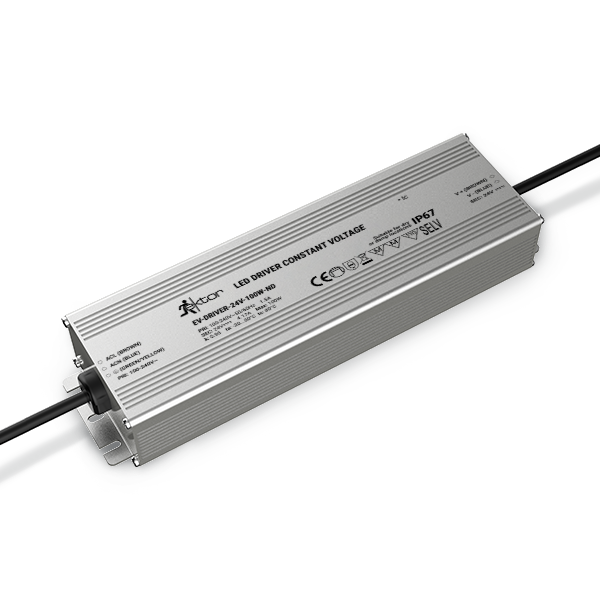

Constant Voltage Led Driver IP67 to suit 24V led arrays

SKU: Acc-24V Constant Voltage IP67 Category: Tag:

Mechanical

Body MaterialAluminium
Product FinishAnodised
IC RatingNon-IC
IP RatingIP67

Electrical

Electrical RatingClass I
Input Current
EV-DRIVER-24V-40W-ND0.5 A
EV-DRIVER-24V-100W-ND1.5 A
EV-DRIVER-24V-150W-ND1.8 A
EV-DRIVER-24V-200W-ND2.1 A
Input Frequency50/60 Hz
Input voltage100-240Vac
Inrush Current1.5 A
Power Factor0.95
Switch TypeInline
Working Temp Range-20 to 50 °C

Driver

DimmableNo
Driver ModeConstant Voltage
Driver TypeFixed output
Flex & Plug or Lead Length1000 mm
Wiring TypeRe-wireable Flex & Plug (3 pin)
Driver Power
EV-DRIVER-24V-40W-ND40 W
EV-DRIVER-24V-100W-ND100 W
EV-DRIVER-24V-150W-ND150 W
EV-DRIVER-24V-200W-ND200 W
Driver Current
EV-DRIVER-24V-40W-ND1670 mA
EV-DRIVER-24V-100W-ND4170 mA
EV-DRIVER-24V-150W-ND6250 mA
EV-DRIVER-24V-200W-ND8340 mA
Output Voltage Range24 V

Compliance

Standards
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • IEC 62493
  • AS/NZS 3100
  • EN 55015
  • EN 61000.3.2
  • EN 61000.3.3
  • EN 61547
Item CodeProduct HeightProduct LengthProduct Width
EV-DRIVER-24V-100W-ND35 mm199 mm67 mm
EV-DRIVER-24V-150W-ND40 mm220 mm70 mm
EV-DRIVER-24V-200W-ND42 mm250 mm72 mm
EV-DRIVER-24V-40W-ND31 mm182 mm58 mm
EV/DRIVER/24V/200W/ND/Line drawing
EV/DRIVER/24V/40W/ND/Line drawing
EV/DRIVER/24V/100W/ND/Line drawing
EV/DRIVER/24V/75W/ND/Line drawing
EV/DRIVER/24V/150W/ND/Line drawing
Ordering codeItem codeDescriptionAvailability
16091EV-DRIVER-24V-100W-ND100W 24V Constant Voltage Driver IP67 with 1m Flex and plug
16092EV-DRIVER-24V-150W-ND150W 24V Constant Voltage Driver IP67 with 1m Flex and plug
16093EV-DRIVER-24V-200W-ND200W 24V Constant Voltage Driver IP67 with 1m Flex and plug
16089EV-DRIVER-24V-40W-ND40W 24V Constant Voltage Driver IP67 with 1m Flex and plug

*Auto generated datasheet (beta)
