Mechanical
| IC Rating | Do not cover |
|---|---|
| Fitting Colour | |
| DK1-0AADADZX00075 DK1-0AADADZX00100 DK1-0AAJADZX00075 DK1-0AAJADZX00100 | Black |
| DK1-0AADADZX00025 DK1-0AADADZX00035 | White |
Electrical
| Working Temp Range | |
|---|---|
| DK1-0AADADZX00075 DK1-0AADADZX00100 DK1-0AAJADZX00075 DK1-0AAJADZX00100 | -20 to 45 °C |
| DK1-0AADADZX00025 DK1-0AADADZX00035 | -20 to 50 °C |
| Input Frequency | 50 Hz |
| Power Factor | 0.95 |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Input Current | |
| DK1-0AADADZX00025 DK1-0AADADZX00035 | 0.14 A |
| DK1-0AADADZX00075 DK1-0AAJADZX00075 | 0.18 A |
| DK1-0AADADZX00100 DK1-0AAJADZX00100 | 0.25 A |
| Surge Protection L-N | 2kV |
| Standby Power | 0.5 W |
| Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge. | |
Driver
| Driver Type | DALI DT6 LED Driver |
|---|---|
| DALI DT6 ~ Includes DALI-2 Driver with full support for DT6 allowing flicker free dimming with compliant DALI-2 Application controllers. | |
| Driver Code | |

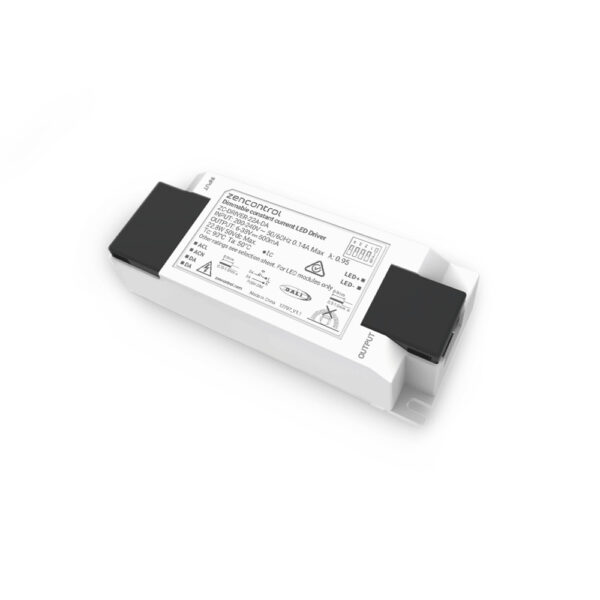

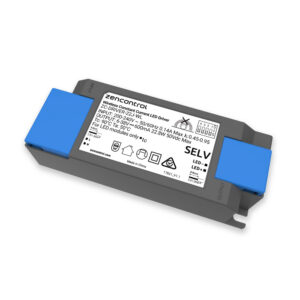

| DK1-0AADADZX00025 DK1-0AADADZX00035 | ZC-DRIVER-22A-DA-600 |

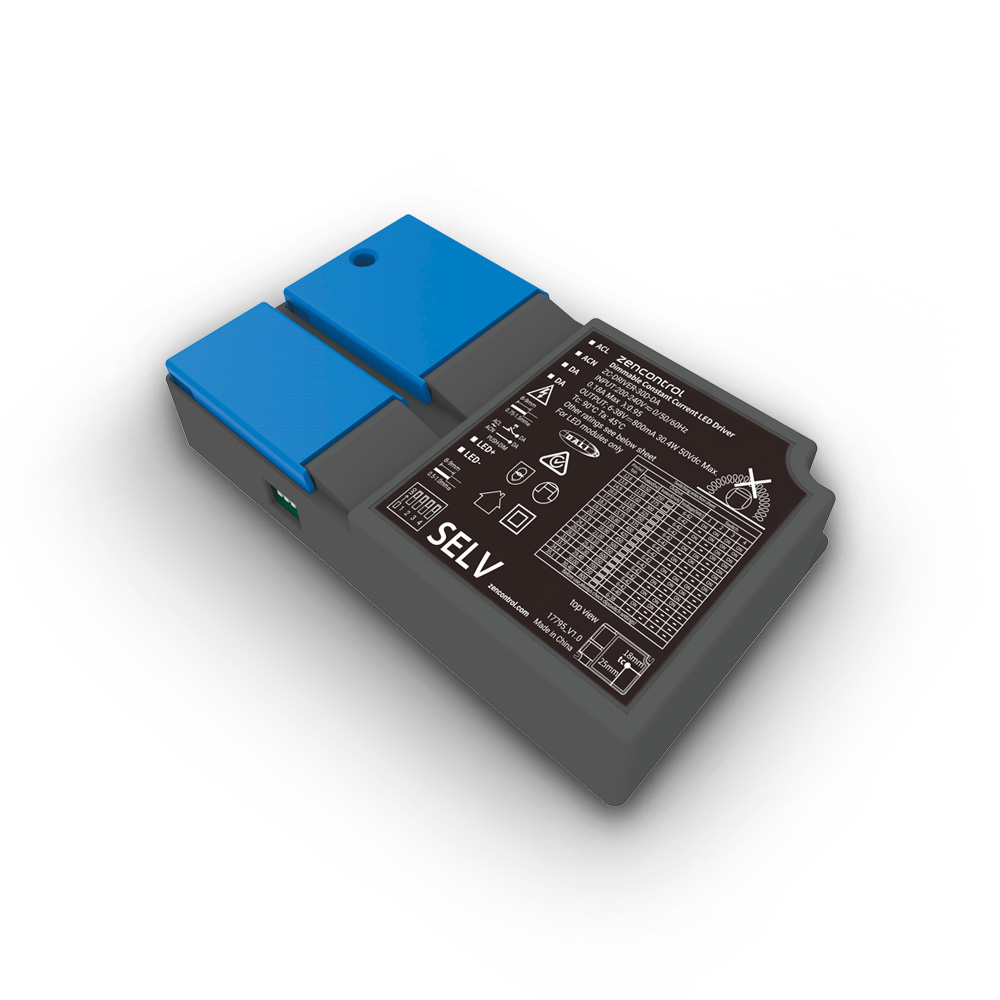

| DK1-0AADADZX00075 DK1-0AAJADZX00075 | ZC-DRIVER-30D-DA-800 |

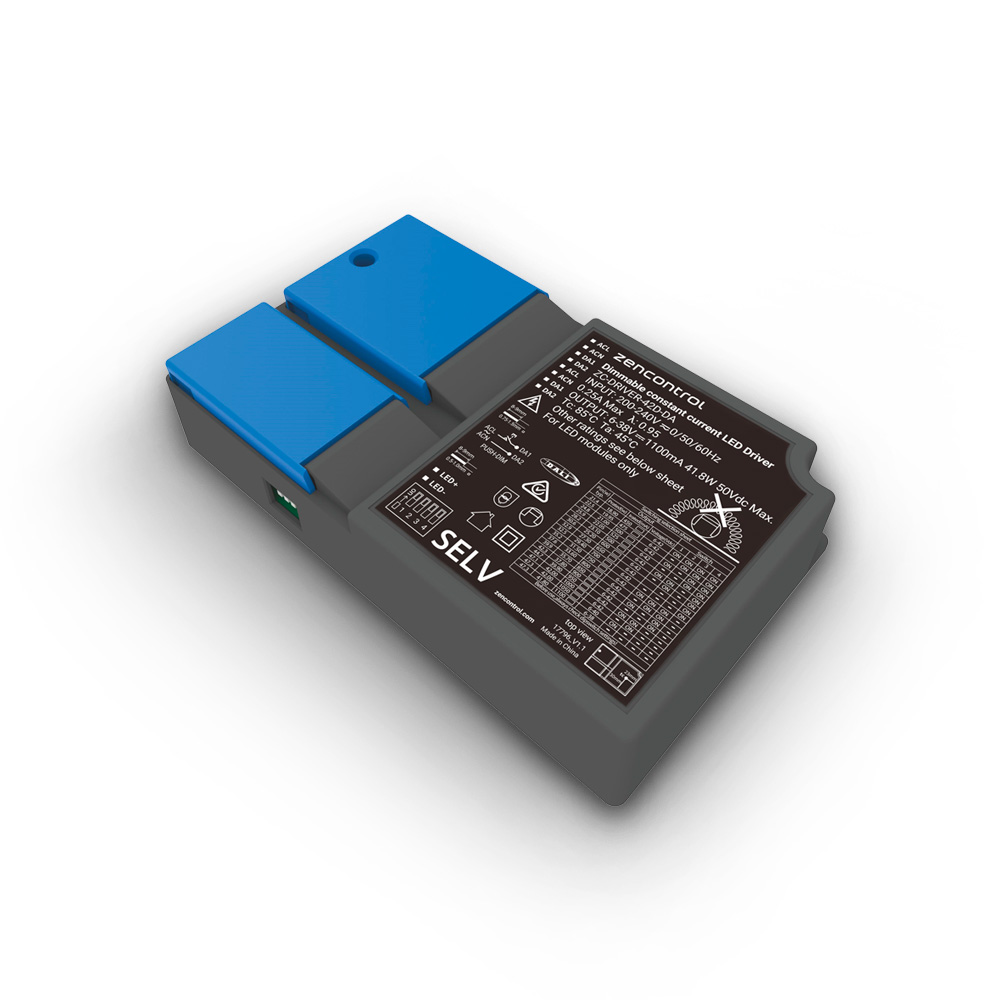

| DK1-0AADADZX00100 DK1-0AAJADZX00100 | ZC-DRIVER-42D-DA-1100 |
| Dimmable | Yes |
| Flex & Plug or Lead Length | |
| DK1-0AADADZX00025 DK1-0AADADZX00035 DK1-0AADADZX00075 DK1-0AADADZX00100 | 1200 mm |
| DK1-0AAJADZX00075 DK1-0AAJADZX00100 | 2400 mm |
| Wiring Type | |
| DK1-0AAJADZX00075 DK1-0AAJADZX00100 | CMS Plug (5 pin) |
| DK1-0AADADZX00025 DK1-0AADADZX00035 DK1-0AADADZX00075 DK1-0AADADZX00100 | Flex and Plug (2 pin) and 2 wire flying lead(DALI) |
| CMS ~ Supplied with a CMS Electracom- 5 pin plug to suit QF series wiring, model number QFP3AT | |
| Driver Mode | Constant Current |
| Driver Power | |
| DK1-0AADADZX00025 DK1-0AADADZX00035 | 22.8 W |
| DK1-0AADADZX00075 DK1-0AAJADZX00075 | 30.4 W |
| DK1-0AADADZX00100 DK1-0AAJADZX00100 | 41.8 W |
| Driver Current | |
| DK1-0AADADZX00025 | 250 mA |
| DK1-0AADADZX00035 | 350 mA |
| DK1-0AADADZX00075 DK1-0AAJADZX00075 | 750 mA |
| DK1-0AADADZX00100 DK1-0AAJADZX00100 | 1000 mA |
| Output Voltage Range | 6-38 V |
| PSTLM | |
| DK1-0AADADZX00075 DK1-0AAJADZX00075 | 0.001 |
| DK1-0AADADZX00100 DK1-0AAJADZX00100 | 0.005 |
| DK1-0AADADZX00025 DK1-0AADADZX00035 | 0.011 |
| Short Term Light Modulation (PstLM): The requirement is that PstLM should be less than or equal to 1.0. This metric measures the short-term flicker severity and ensures that flicker is not perceptible or is at a level that does not cause discomfort or health issues. | |
| SVM | |
| DK1-0AADADZX00075 DK1-0AAJADZX00075 | 0.003 |
| DK1-0AADADZX00025 DK1-0AADADZX00035 | 0.005 |
| DK1-0AADADZX00100 DK1-0AAJADZX00100 | 0.007 |
| Stroboscopic Visibility Measure (SVM): The requirement for SVM is that it should be less than or equal to 0.4. The SVM metric assesses the visibility of the stroboscopic effect, which can make moving objects appear to be stationary or moving in discrete steps, thus ensuring that this effect is minimized in lighting environments to prevent visual discomfort and safety hazards. | |
Compliance
| Standards |
|
|---|
