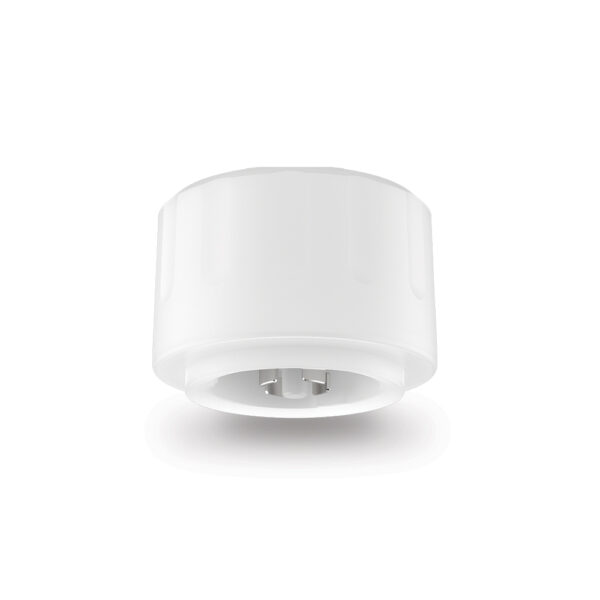

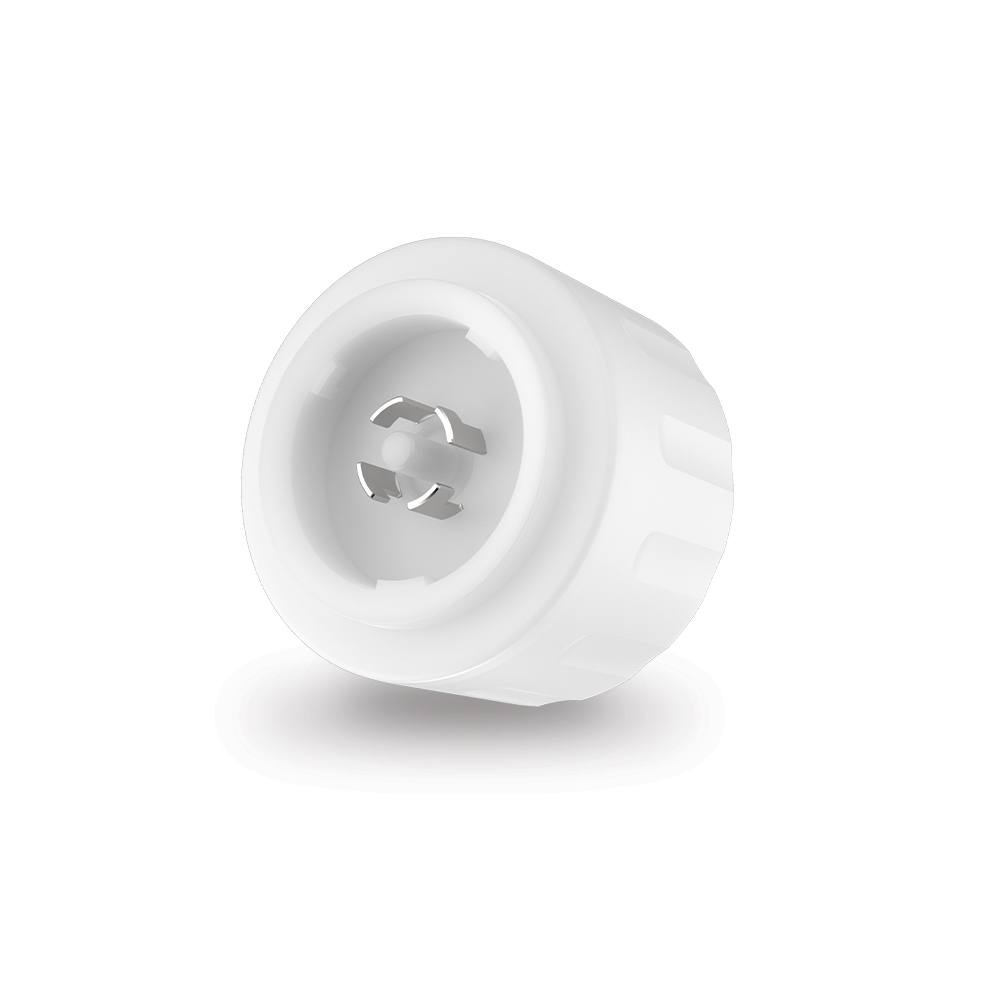

Zhaga MW Sensor

Ektor MW Sensor Zhaga 0-10V + IR

  • 5.8GHz microwave motion sensor with Zhaga Book 18 interface
  • 0-10V dimming signal output
  • IP65 rated
  • Working temperature -35°C to 60°C
  • Installation height up to 15m
  • Adjustable detection range up to 4m (at 0.3m/s)
  • Daylight sensor with adjustable threshold (5-150 Lux)
  • Adjustable dimming levels: 10%, 20%, 30%, 50%
  • Compatible with EV-HOVER-SWITCH-ADV, EV-HOVER-PRO & EV-PLANAR-PRO
  • IR remote control available (sold separately)
SKU: Acc-Zhaga MW Sensor Category:

Mechanical

IP RatingIP65

Electrical

Working Temp Range-35 to 60 °C
Input voltage11-13VDC

Driver

DimmableYes
Driver Current<30mA mA

Sensor (S suffix)

Sensor TypeMicrowave
Lux Range5-150 lx
Detection Range4 m
Switched OutputNo
Corridor FunctionYes
Lux AdjustmentYes
Manual OverrideYes
Dawn ResetNo
Dusk ModeNo
Adjustable Hold TimeYes
Adjustable Standby LevelYes
Adjustable Standby PeriodYes
Adjustable Detection Area / SensitivityYes

Warranty

Commercial Use Warranty1 RTB (Total 1 Year)
Order codeItem codeDescriptionAvailability
10801EV-SENSOR-ZHAGA-MW-IREktor MW sensor Zhaga 0-10V + IR
