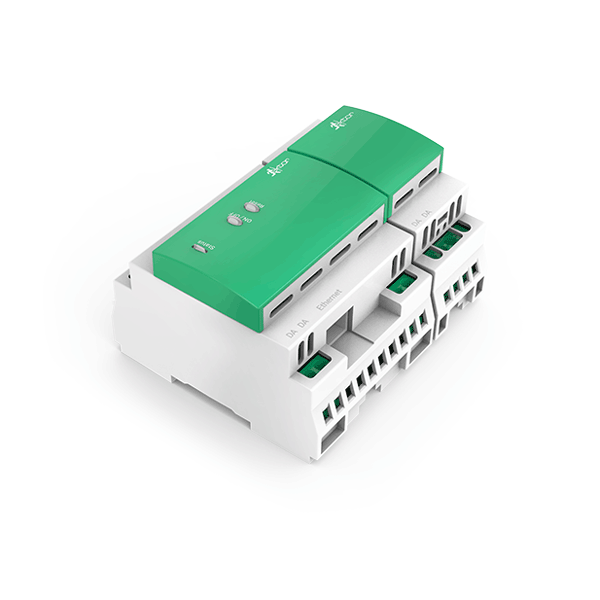

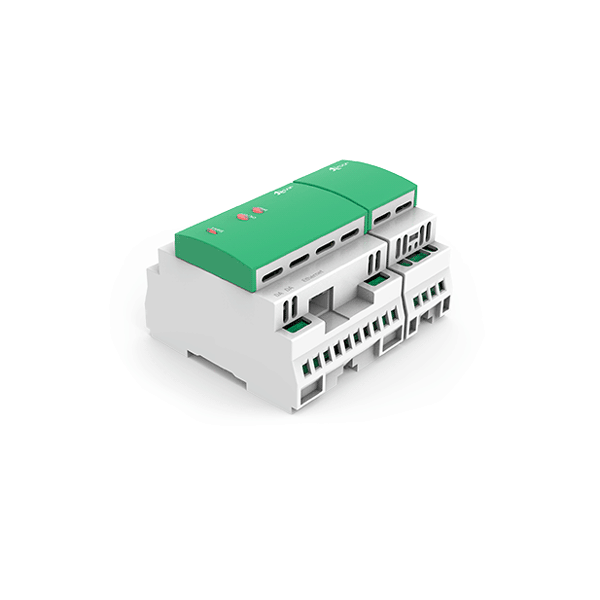

AWAC-2

$0.00

DALI Emergency Testing and Monitoring, DIN mount

Features

  • Supports up to 64 DALI DT1 emergency devices
  • DALI-2 compliant application controller
  • Protected against DALI over voltage
  • Includes DALI-2 235mA power supply
  • Automatic DALI control gear short addressing
  • Suitable for switchboard mounting on standard DIN rail
  • 10/100 TCP/IP Ethernet compatible with standard IT switches and equipment
  • 10 Years Design Life – 100,000 hours at max. ambient
SKU: AWAC-2 Category: Tags: , ,

Mechanical

Body MaterialPolycarbonate
Installation TypeDIN rail (35mm)
IP RatingIP20

Electrical

Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Working Temp Range0 to 40 °C

Compliance

Standards
  • AS/NZS 61347.2.11
  • AS/NZS 61347.1
  • AS CISPR 15
  • IEC 62386-101ed2
  • IEC 62386-103

Warranty

Commercial Use Warranty5 RTB (Total 5 Years)
AWAC/2_Dimensions
Ordering codeItem codeDescriptionAvailability
16101EV-AWAC-2-KITDALI-2 Application controller kit with ethernet gateway and 235mA DALI-2 power supply

*Auto generated datasheet (beta)
