Boxit IP65 Professional

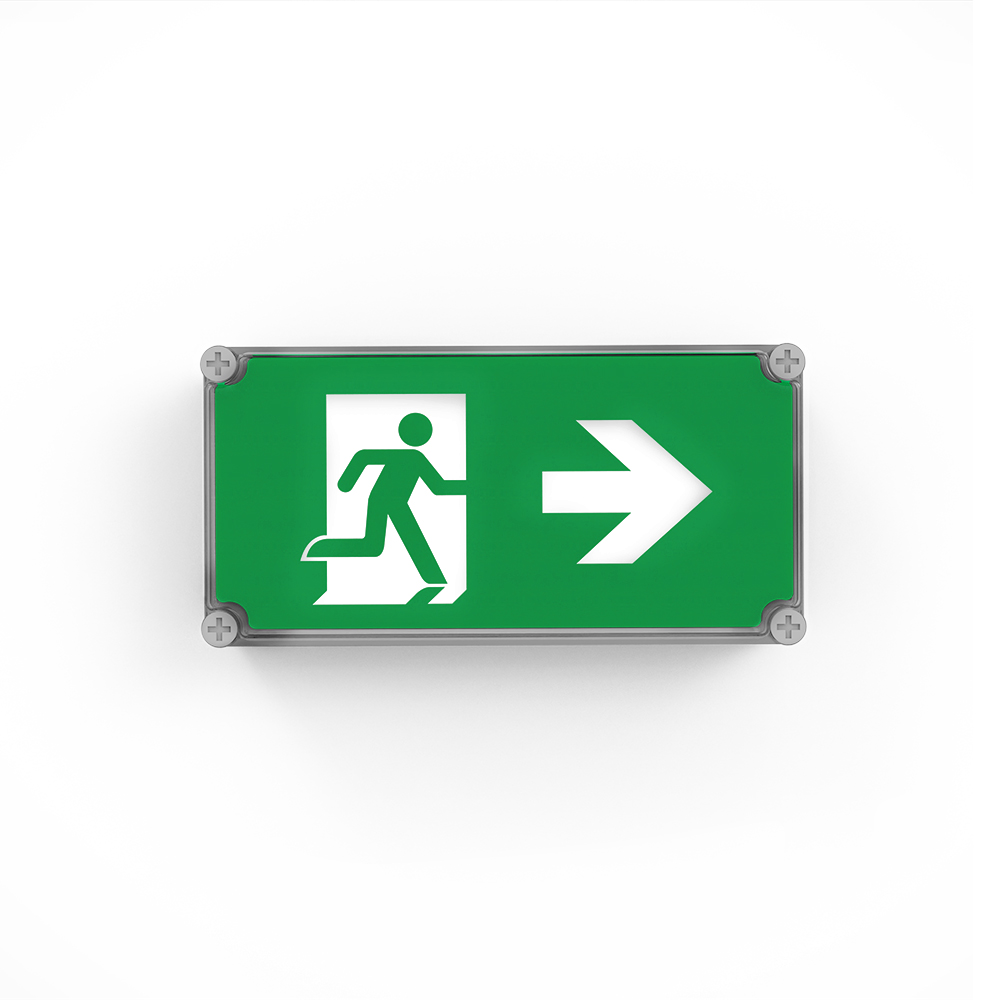

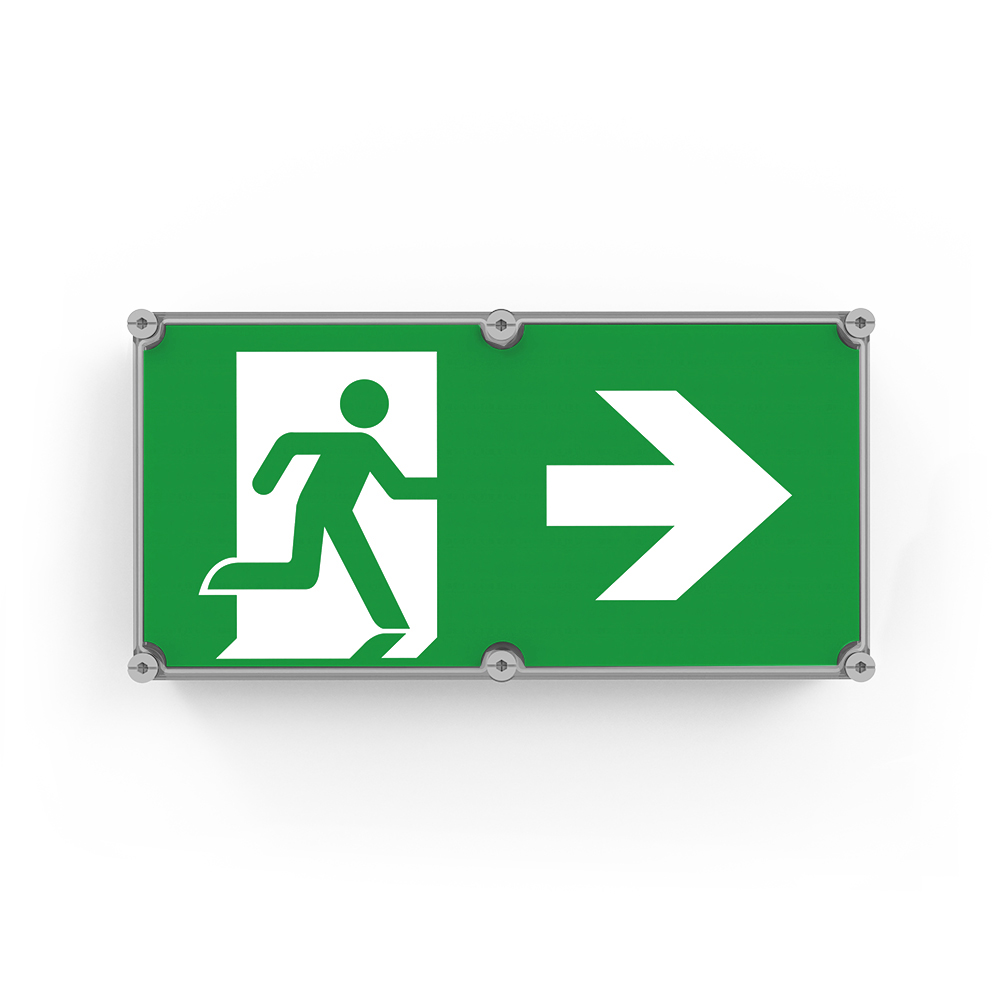

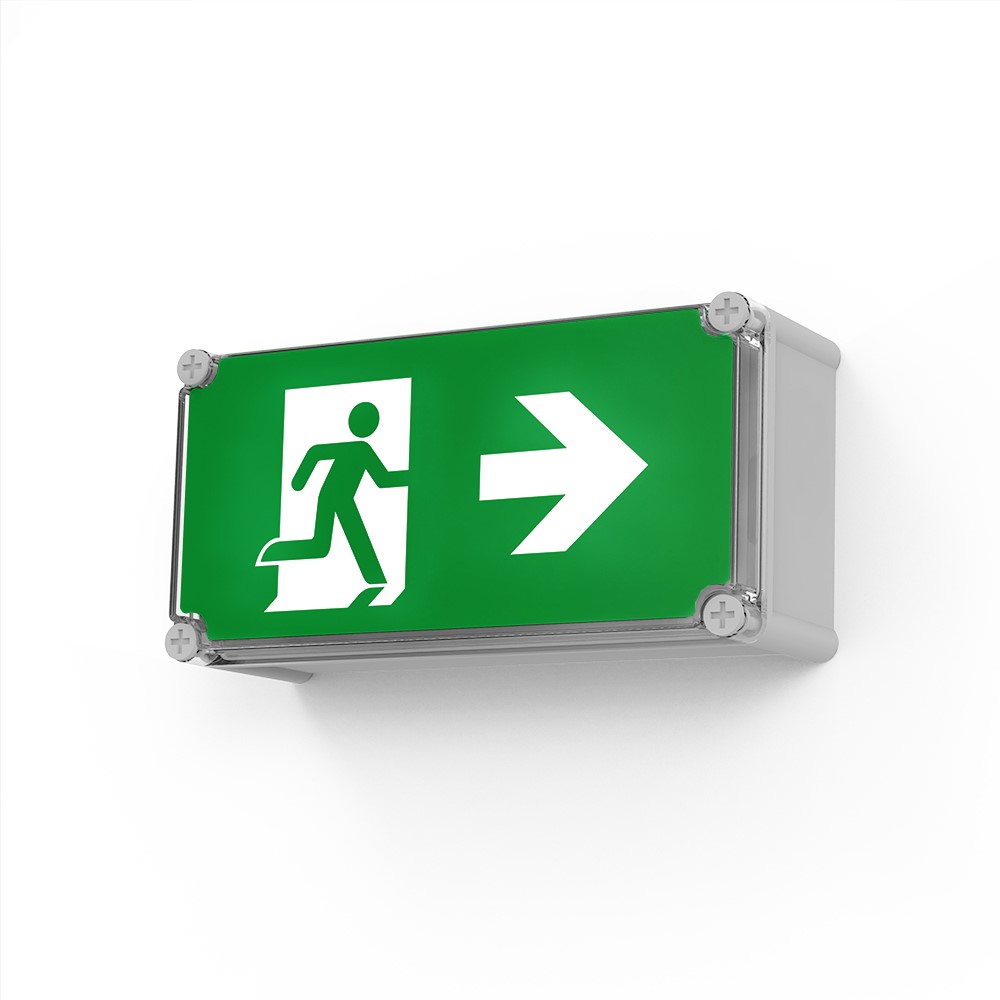

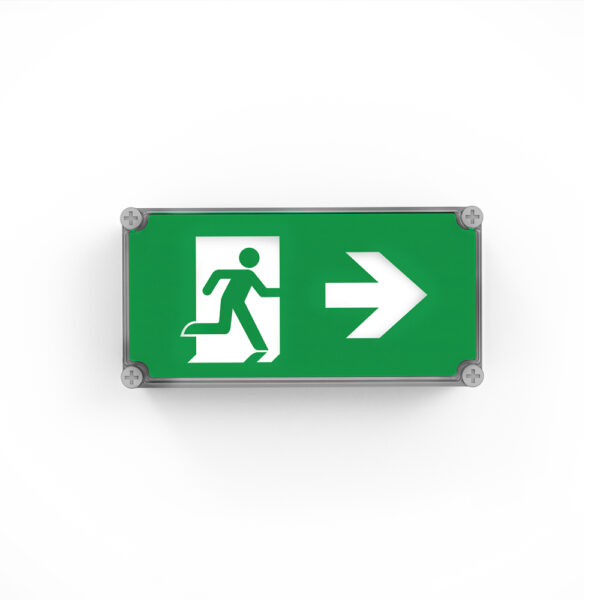

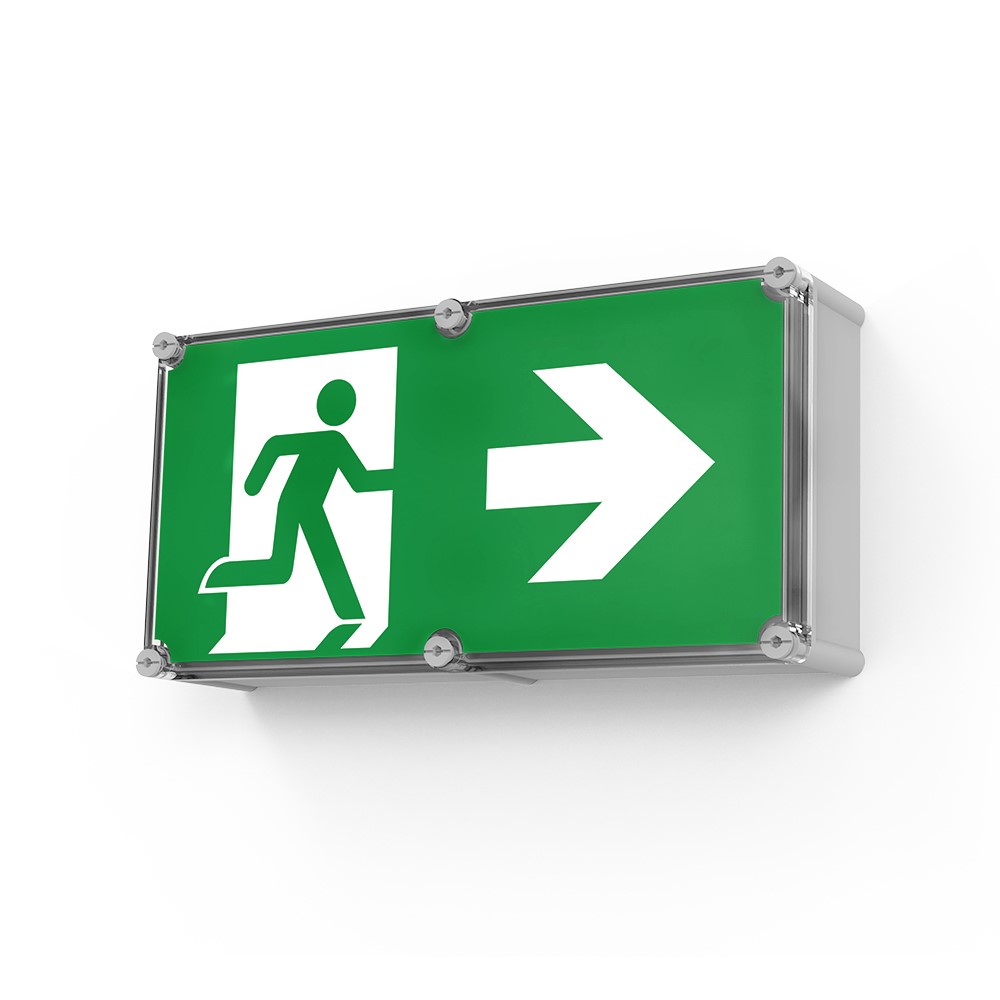

Boxit IP65 Professional Exit Sign, 24 & 40m

  • Designed to withstand wear and tear with impact rating of IK09 (front) and IK08 (side)
  • Suitable for outdoor use in harsh weather conditions with an IP65 rating
  • Self-test (AS2293/IEC62034)
  • Long-life electronics with 12 years design life at max. ambient
  • High quality lithium battery (LiFePO4) and smart charger
  • Supports maintained and non-maintained operating modes
  • Soft-start charger to reduce building load
  • DALI monitored and standalone system
  • DALI (IEC 62386-202) DT1
  • Ektor wired monitored system
SKU: Boxit IP65 Professional Category:

Mechanical

IP RatingIP65
IK Rating
EV-BOXIT-IP65-40M-PRO-DAIK08
EV-BOXIT-IP65-24M-PRO-DAIK09
Fitting ColourGrey
Body MaterialPolycarbonate
Diffuser MaterialPolycarbonate
Installation TypeSurface mount

Electrical

Working Temp Range0 to 40 °C
Input Frequency50 Hz
System Max Wattage2.5 W
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Standby Power
EV-BOXIT-IP65-24M-PRO-DA2.2 W
EV-BOXIT-IP65-40M-PRO-DA2.5 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Maximum Wattage3.5 W

Driver

Driver TypeDALI DT1 Emergency
Wiring TypeRe-wireable terminal block (5 pin)

Emergency (EM suffix)

Emergency ModeMaintained
Emergency Classification
EV-BOXIT-IP65-40M-PRO-DAC0:E5 , C90:E2.5
EV-BOXIT-IP65-24M-PRO-DACO:E2.5, C90:E2
Emergency Output Power
EV-BOXIT-IP65-24M-PRO-DA1200 mW
EV-BOXIT-IP65-40M-PRO-DA1600 mW
Replacement Battery Code
EV-BOXIT-IP65-24M-PRO-DA01302
EV-BOXIT-IP65-40M-PRO-DA01303
Emergency Duration90 mins
Emergency Lumen Output30 lm
Viewing Distance
EV-BOXIT-IP65-24M-PRO-DA24 m
EV-BOXIT-IP65-40M-PRO-DA40 m
Decal Size360x170 mm
Emergency Light Source Life24Y/10M
AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign.

Compliance

Daily Use24 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Warranty8 Year Warranty, RTB
The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page.
Commercial Use Warranty8 RTB (Total 8 Years)
Item CodeProduct HeightProduct LengthProduct Width
EV-BOXIT-IP65-24M-PRO-DA95 mm370 mm190 mm
EV-BOXIT-IP65-40M-PRO-DA138 mm555 mm278 mm
EV/BOXIT/IP65/24M/PRO/DA
EV/BOXIT/IP65/40M/PRO/DA
Order codeItem codeDescriptionAvailability
16606EV-BOXIT-IP65-24M-PRO-DABoxit Pro IP65 Wallmount Exit Light - 24M
13105EV-BOXIT-IP65-40M-PRO-DABoxit Pro IP65 Wallmount Exit Light - 40M
EV/BOXIT/IP65/24M/PRO
