Duo

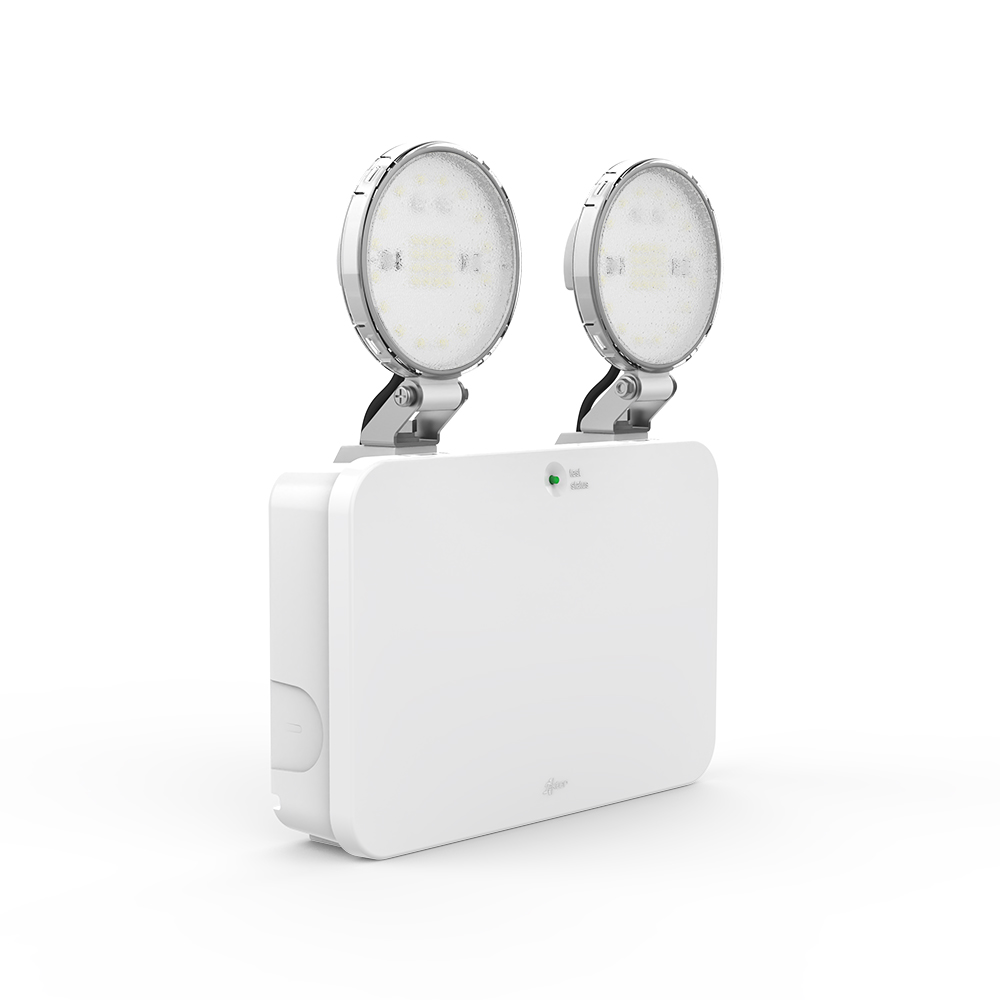

Duo IP65 Emergency Luminaire

Selected Models

  • Superior emergency output of 2 x 175lm
  • Compact design makes it ideal for various installation environments
  • High-quality performance at an economical price
  • 8 years design life at max. ambient
  • Efficient energy consumption
  • Adjust vertically (Up/Down) and horizontally (Left/Right)
  • IP65 for weatherproof rating and IK10 impact resistance
  • Supports DALI-2 wired emergency testing
  • Supports Ektor Lynk wireless emergency testing
  • Stronger emergency output of 2 x 215lm, ensuring brighter and more effective lighting
  • Compact design saves space and makes it installable in more places
  • Cost-efficient: Provides high-quality performance at an economical price
  • 6 years design life at max. ambient temperature
  • Efficient energy consumption: Optimised for minimal energy usage without compromising on brightness and functionality
  • Adjustable luminaires: Vertical (up/down) and horizontal (left/right) adjustment for optimal light positioning
  • Robust protection: Rated at IP65 for water & dust resistance and IK10 impact resistance for durability
  • Supplied with a 1.2m flex and plug for easy setup and integration
  • SafeTest – automated self-testing (AS2293/IEC62034)
  • 12 years design life at max. ambient
SKU: Duo Category:

Mechanical

IP RatingIP65
IK RatingIK10
AdjustabilityAdjustable
Fitting Colour
EV-DUO-ADV-B-DA

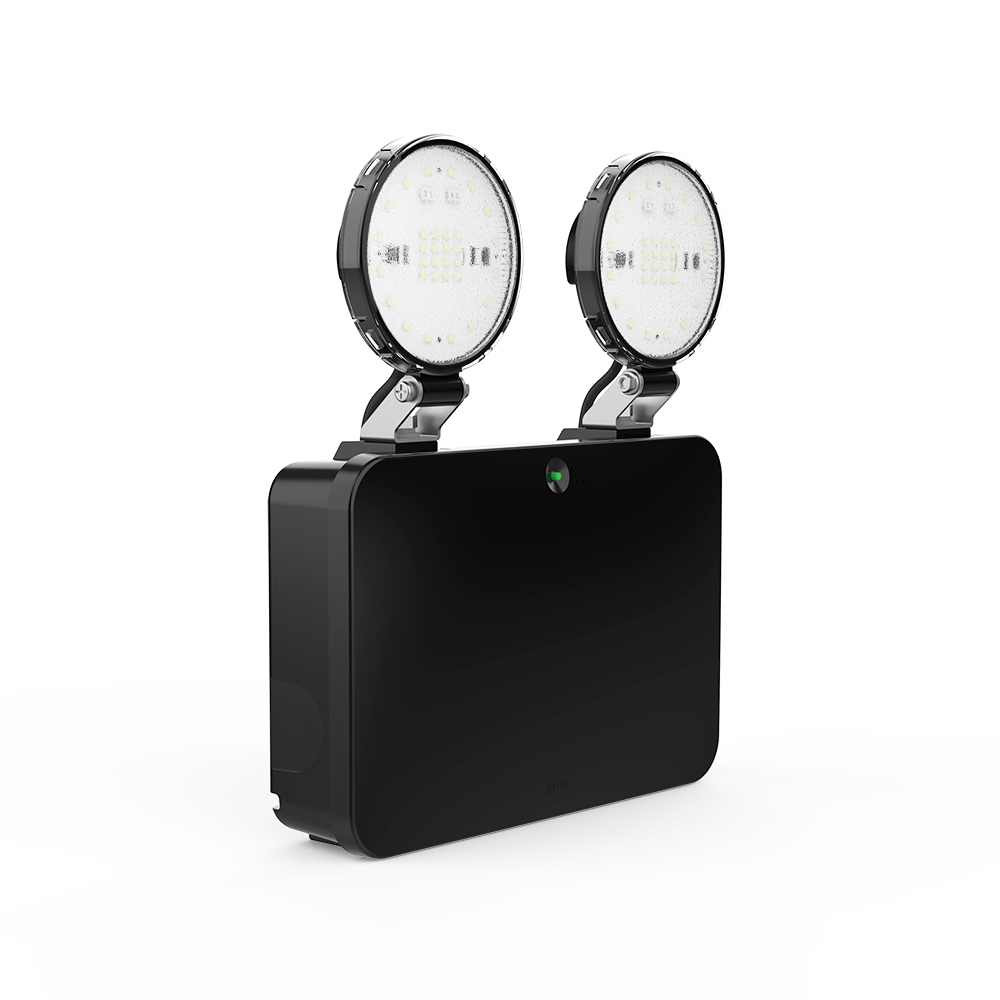

EV-DUO-CORE-B		Black
EV-DUO-ADV-DA
EV-DUO-ADV-LK
EV-DUO-CORE
EV-DUO-ONE-IP65		White
Body MaterialPolycarbonate
Diffuser MaterialPolycarbonate
Installation TypeSurface mount

Electrical

Working Temp Range0 to 40 °C
Input Frequency50 Hz
Maximum Wattage2.5 W
Input voltage
EV-DUO-ONE-IP65220-240VAC
EV-DUO-ADV-B-DA
EV-DUO-ADV-DA
EV-DUO-ADV-LK
EV-DUO-CORE
EV-DUO-CORE-B		230Vac
Standby Power1 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.

Driver

Driver Type
EV-DUO-ADV-B-DA
EV-DUO-ADV-DA		DALI DT1 Emergency
EV-DUO-CORE
EV-DUO-CORE-B		Fixed output
EV-DUO-ONE-IP65Lynk Wireless or DALI-2 with DT1
EV-DUO-ADV-LKWireless (IEC62386-104) with DT1
Driver IncludedYes
Wiring Type
EV-DUO-CORE
EV-DUO-CORE-B		Re-wireable Flex & Plug (2 pin)
EV-DUO-ADV-LKRe-wireable terminal block (2 pin)
EV-DUO-ADV-B-DA
EV-DUO-ADV-DA
EV-DUO-ONE-IP65		Re-wireable terminal block (4 pin)
Flex & Plug or Lead Length1200 mm

Emergency (EM suffix)

Emergency ModeNon-Maintained
Emergency Output Power
EV-DUO-ADV-B-DA
EV-DUO-ADV-DA
EV-DUO-ADV-LK
EV-DUO-ONE-IP65		2500 mW
EV-DUO-CORE
EV-DUO-CORE-B		2700 mW
Replacement Battery Code18096
Emergency Duration90 mins
Emergency Lumen Output
EV-DUO-ADV-B-DA
EV-DUO-ADV-DA
EV-DUO-ADV-LK
EV-DUO-ONE-IP65		350 lm
EV-DUO-CORE
EV-DUO-CORE-B		430 lm
Emergency Control
EV-DUO-ADV-B-DA
EV-DUO-ADV-DA		DALI Monitored (DT1)
EV-DUO-COREEktor SafeTest (Automatic self-test)
EV-DUO-ADV-LKIEC62386-104 (Wireless DT1)
EV-DUO-ONE-IP65Lynk Wireless or DALI-2
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
IEC62386-104 ~ Supports wireless test and monitoring over IEC62386-104 using IEC62386-202.

Compliance

Product Design Life
EV-DUO-ONE-IP6512 years
EV-DUO-CORE
EV-DUO-CORE-B		6 years
EV-DUO-ADV-B-DA
EV-DUO-ADV-DA
EV-DUO-ADV-LK		8 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty
EV-DUO-CORE
EV-DUO-CORE-B		5 RTB (Total 5 Years)
EV-DUO-ADV-B-DA
EV-DUO-ADV-DA
EV-DUO-ADV-LK		6 RTB (Total 6 Years)
EV-DUO-ONE-IP658 RTB (Total 8 Years)
Product Height270 mm
Product Length228 mm
Product Width50 mm
EV/DUO/ADV/2/1
EV/DUO/CORE/2/1
EV/DUO/ONE/IP65
DALI DT1 Emergency
Order codeItem codeDescriptionAvailability
12141EV-DUO-ADV-B-DADuo Advanced Emergency Weatherproof Luminaire - With DALI Black
12140EV-DUO-ADV-DADuo Advanced Emergency Weatherproof Luminaire - with DALI
Wireless (IEC62386-104) with DT1
Order codeItem codeDescriptionAvailability
12142EV-DUO-ADV-LKLynk Duo Advanced Emergency Weatherproof Luminaire - w/Wireless
Fixed output
Order codeItem codeDescriptionAvailability
12144EV-DUO-COREDuo Core Emergency Weatherproof Luminaire
12145EV-DUO-CORE-BDuo Core Emergency Weatherproof Luminaire - Black
Lynk Wireless or DALI-2 with DT1
Order codeItem codeDescriptionAvailability
14867EV-DUO-ONE-IP65Ektor One - Emergency weatherproof luminaire - W/Wireless and DALI
