Emergency Timer

$0.00

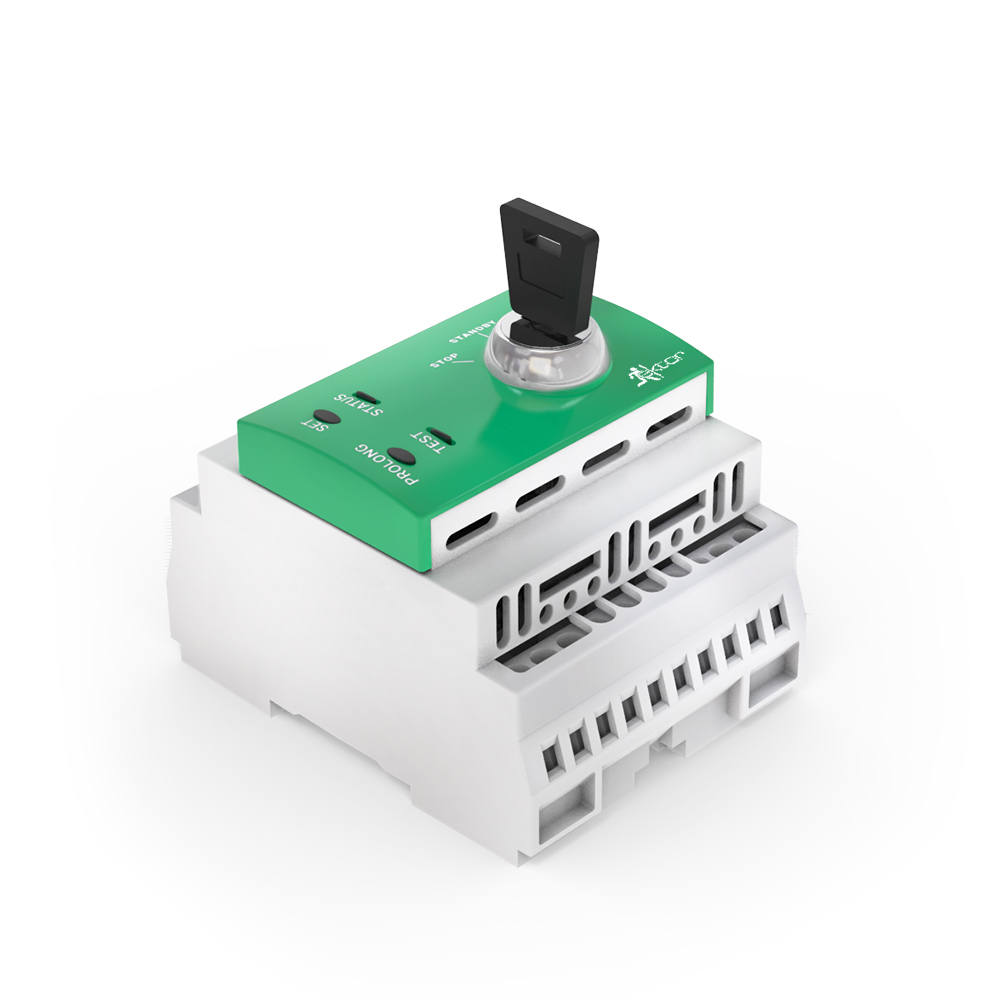

Manual Emergency Test Switch and Timer, 5x sensing circuits, DIN mount

Features

  • Easy configuration and control
  • Extended period to allow walk around
  • All-in-one unit to meet compliance needs
  • Manually operated discharge test (90/120 min duration)
  • Brown-out trigger ensures AS/NZS 60598.2.22 Clause 22.17 is met
  • Prolong, provision for time-delay to remain in emergency mode for lighting requiring cooldown
  • Long life electronics
  • 10 Years Design Life – 100,000 hours at max. ambient
  • 5 sensing circuits per unit
  • Connect up to 6 units for 30 sensing circuits
  • Suitable for switchboard mounting on standard DIN rail
  • Requires contactor (not included)
SKU: Emergency Timer Category: Tags: ,

Mechanical

Body MaterialPolycarbonate
Installation TypeDIN rail (35mm)
IP RatingIP20

Electrical

Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Working Temp Range0 to 40 °C

Compliance

Standards
  • AS/NZS 61347.2.11
  • AS/NZS 61347.1
  • AS CISPR 15
  • AS/NZS 2293.1

Warranty

Commercial Use Warranty5 RTB (Total 5 Years)
em/timer/pro
Ordering codeItem codeDescriptionAvailability
02002EV-EM-TIMEREmergency Test Switch and timer

*Auto generated datasheet (beta)
Ordering codeItem codeDescriptionAvailability
01205EV-EM-TIMER-KEYReplacement EM Timer Keys for 02002 & 11104
