Flux Core

$0.00

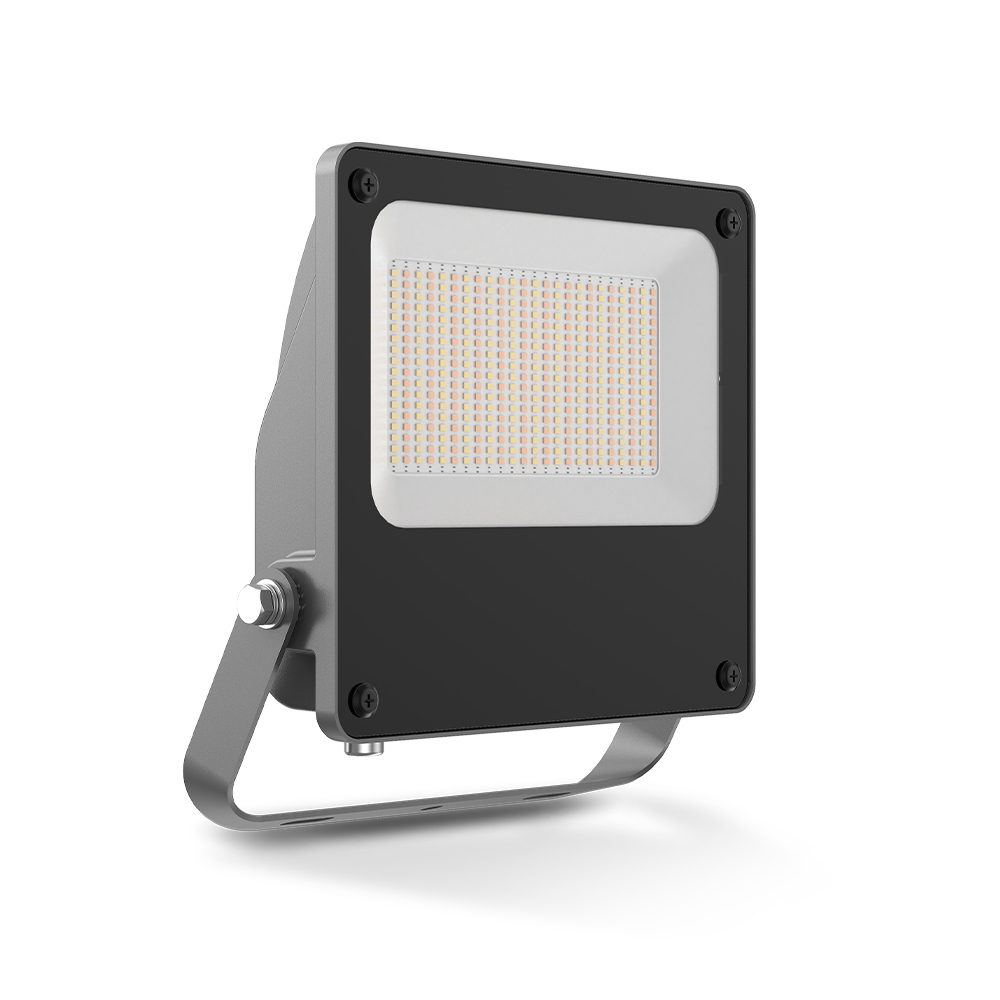

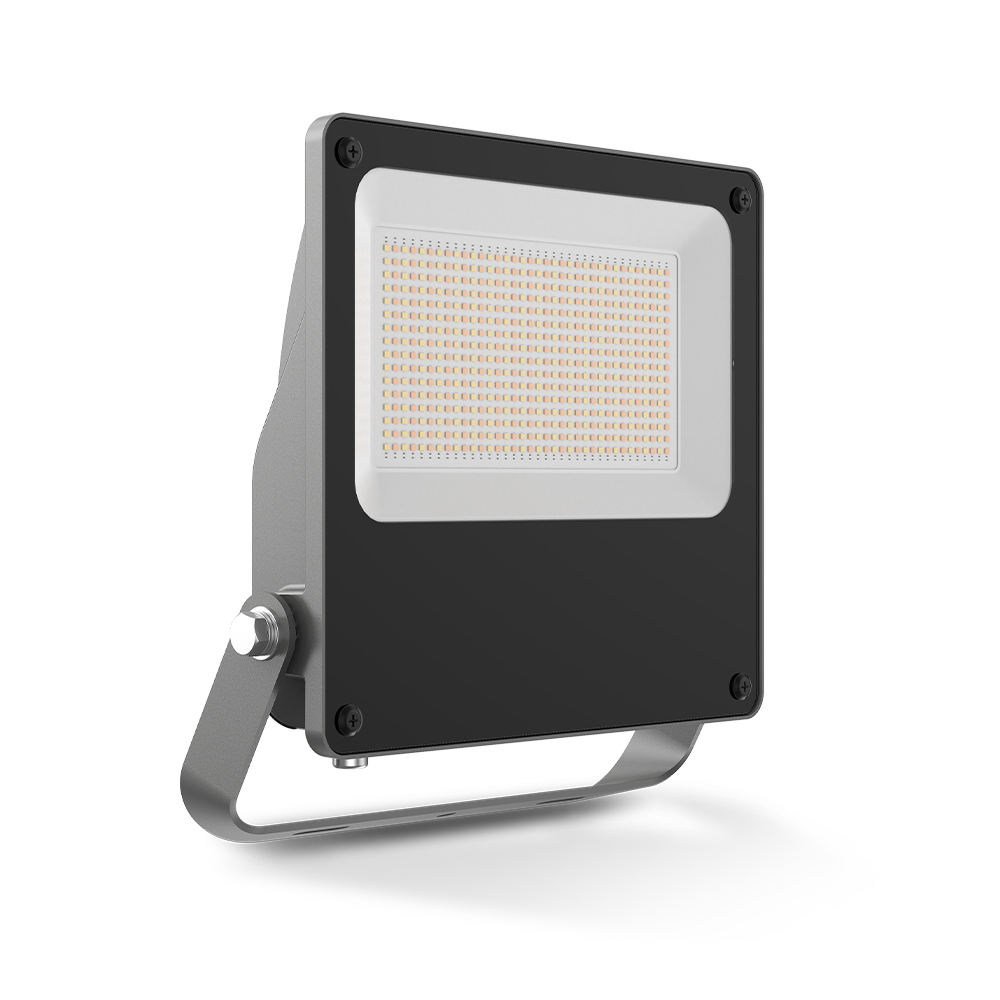

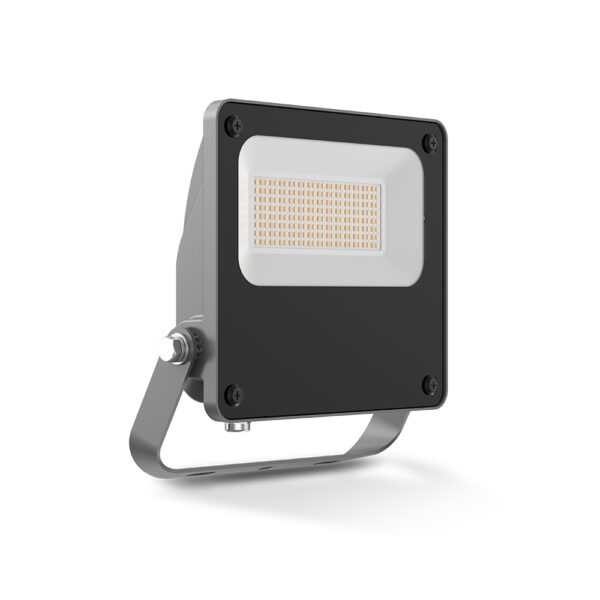

Flux Core Power Adjustable Floodlight

  • High-efficiency floodlight delivering up to 173 lm/W, maximising brightness with low power use
  • Integrated photocell enables automatic night-time operation for optimised energy efficiency
  • Activates when light levels drop below 20 lux and switches off above 80 lux
  • Power selectable design with three settings per model for adaptable brightness
  • Tri-CCT adjustable lighting with 3000K, 4000K, and 5000K
  • 50,000-hour LED lifespan reduces maintenance, for long-lasting performance
  • IP66 rating offers strong weather and moisture protection for reliable outdoor use
  • IK08 impact resistance protects against tough conditions, making it durable for high-traffic areas
  • Durable diecast aluminium body with a matt black powder-coated finish
  • 1.5m outdoor-rated input cable for easy installation
SKU: Flux Core Category: Tags: , , , ,

Efficiencies

Total System Efficiency
EV-FLUX-CORE-240-TRI170 lm/W
EV-FLUX-CORE-160-TRI172 lm/W
EV-FLUX-CORE-80-TRI173 lm/W
The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

Mechanical

IP RatingIP66
IK RatingIK08
AdjustabilityAdjustable
Fitting ColourBlack
Product FinishPowdercoated
Body MaterialAluminium
Diffuser MaterialGlass
Installation TypeSurface mount

Electrical

Working Temp Range50 °C
Input Frequency50 Hz
Switch TypeInline
Power Factor0.95
Inrush Current
EV-FLUX-CORE-80-TRI40 A
EV-FLUX-CORE-160-TRI45 A
EV-FLUX-CORE-240-TRI50 A
Inrush Duration
EV-FLUX-CORE-240-TRI
EV-FLUX-CORE-80-TRI		200uS (50%) uS
EV-FLUX-CORE-160-TRI220uS (50%) uS
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Surge Protection L-N4kV
Surge Protection L/N-PE4kV
Earth Leakage0.75 mA
Power Selection
EV-FLUX-CORE-240-TRI120 / 160 / 240 W
EV-FLUX-CORE-80-TRI40 / 60 / 80 W
EV-FLUX-CORE-160-TRI80 / 120 / 160 W

Lamp

Colour Rendering Index (CRI)>70
CCT ConfigurationTRI-CCT
Beam Angle120 °

Colour temperature

EV-FLUX-CORE-160-TRI
80 Watts
Warm White (3000 K)13400 lm
Cool White (4000 K)13850 lm
DayLight (5000 K)14000 lm
160 Watts
Warm White (3000 K)23650 lm
Cool White (4000 K)26000 lm
DayLight (5000 K)24750 lm
EV-FLUX-CORE-240-TRI
120 Watts
Warm White (3000 K)18750 lm
Cool White (4000 K)19250 lm
DayLight (5000 K)19300 lm
240 Watts
Warm White (3000 K)34600 lm
Cool White (4000 K)38400 lm
DayLight (5000 K)36200 lm
EV-FLUX-CORE-80-TRI
40 Watts
Warm White (3000 K)6750 lm
Cool White (4000 K)7000 lm
DayLight (5000 K)6950 lm
80 Watts
Warm White (3000 K)12150 lm
Cool White (4000 K)13350 lm
DayLight (5000 K)12675 lm

Driver

Driver TypeFixed output
Driver IncludedYes
Integrated DriverYes
Flex & Plug or Lead Length1500 mm
Wiring TypeFlying leads (3 wire)
Driver ModeConstant Current

Warranty

Commercial Use Warranty5 RTB (Total 5 Years)
Item CodeProduct HeightProduct LengthProduct WidthProduct Weight
EV-FLUX-CORE-160-TRI329 mm280 mm68 mm3300 g
EV-FLUX-CORE-240-TRI383 mm330 mm70 mm4900 g
EV-FLUX-CORE-80-TRI284 mm240 mm64 mm2600 g
EV/FLUX/CORE/160/TRI
EV/FLUX/CORE/240/TRI
EV/FLUX/CORE/80/TRI
Order codeItem codeDescriptionAvailability
14012EV-FLUX-CORE-160-TRI160W Power switch flood light - 160/120/80W - w/photocell - Tri-CCT
14013EV-FLUX-CORE-240-TRI240W Power switch flood light - 240/160/120W - w/photocell - Tri-CCT
14011EV-FLUX-CORE-80-TRI80W Power switch flood light - 80/60/40W - w/photocell - Tri-CCT
