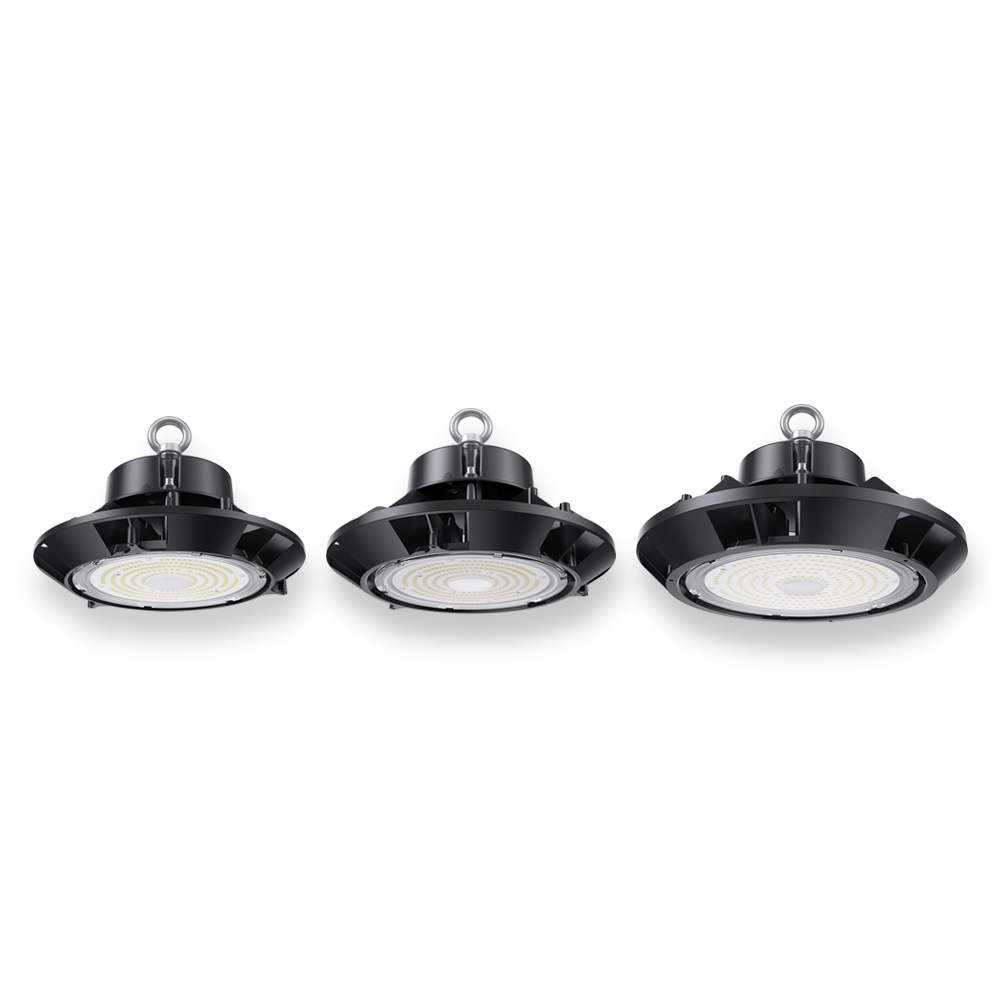

Hover Core Highbay

  • Quality highbay delivering highly energy-efficient illumination up to 170lm/W
  • 120 degree beam provides broad coverage
  • Long-lasting performance with LED lifetime of >60,000 hours
  • Designed to function in a range of temperatures, from -30 to 50°C, making it ideal for use in a variety of conditions
  • IP65 rating provides exceptional resistance to weather and moisture
  • IK08 rated, making it capable of handling the toughest industrial and commercial environments
SKU: Hover Core Category: Tags: , , , ,

Efficiencies

Total System Efficiency170 lm/W
The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

Mechanical

Body Material
EV-HOVER-CORE-120W-50K
EV-HOVER-CORE-200W-50K
Alluminium alloy
EV-HOVER-CORE-150W-50KAluminium alloy
Diffuser MaterialClear plastic
Fitting ColourBlack
IK RatingIK08
Installation TypeSuspended
IP RatingIP65

Electrical

Earth Leakage0.75 mA
Electrical RatingClass I
Input Current
EV-HOVER-CORE-120W-50K1.2 A
EV-HOVER-CORE-150W-50K1.5 A
EV-HOVER-CORE-200W-50K2 A
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Inrush Current
EV-HOVER-CORE-120W-50K80 A
EV-HOVER-CORE-150W-50K
EV-HOVER-CORE-200W-50K
100 A
Maximum Wattage
EV-HOVER-CORE-120W-50K120 W
EV-HOVER-CORE-150W-50K150 W
EV-HOVER-CORE-200W-50K200 W
Surge Protection L/N-PE4kV
Surge Protection L-N4kV
Working Temp Range-30 to 50 °C

Lamp

Macadam Steps (SDCM)5-step MacAdam Ellipse
Beam Angle120 °
CCT ConfigurationSingle
Colour Rendering Index (CRI)>80

LED Lifetime

LED Lifetime>60000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Ektor does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.
LED Lifetime Ratings (Failure rate & lumen depreciation)
EV-HOVER-CORE-120W-50K
EV-HOVER-CORE-150W-50K
Ambient Temp (°C)25 °C40 °C
L90B1048000 hrs48000 hrs
EV-HOVER-CORE-200W-50K
Ambient Temp (°C)25 °C40 °C
L90B1048000 hrs47000 hrs
This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717.
TM-21 Test Hours10000 hrs

Colour temperature

CCT5000 K
Luminaire Lumens
EV-HOVER-CORE-120W-50K20400 lm
EV-HOVER-CORE-150W-50K25500 lm
EV-HOVER-CORE-200W-50K34000 lm
All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire.

Driver

Driver Type1-10V dimmable
Flex & Plug or Lead Length1500 mm
Wiring TypeRe-wireable Flex & Plug (3 pin)
PSTLM
EV-HOVER-CORE-120W-50K0.012
EV-HOVER-CORE-200W-50K0.014
EV-HOVER-CORE-150W-50K0.017
Short Term Light Modulation (PstLM): The requirement is that PstLM should be less than or equal to 1.0. This metric measures the short-term flicker severity and ensures that flicker is not perceptible or is at a level that does not cause discomfort or health issues.
SVM
EV-HOVER-CORE-120W-50K
EV-HOVER-CORE-150W-50K
0.001
EV-HOVER-CORE-200W-50K0.012
Stroboscopic Visibility Measure (SVM): The requirement for SVM is that it should be less than or equal to 0.4. The SVM metric assesses the visibility of the stroboscopic effect, which can make moving objects appear to be stationary or moving in discrete steps, thus ensuring that this effect is minimized in lighting environments to prevent visual discomfort and safety hazards.

Energy Savings Scheme

Ipart ApprovalYes
REES ApprovalYes
VEU ApprovalYes

Compliance

Product Design Life6 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use20 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 60598.1
  • AS/NZS 60598.2.1
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15

Warranty

Commercial Use Warranty5 RTB (Total 5 Years)
VIP Warranty2 Onsite, 3 RTB (Total 5 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered.
Warranty Operating Hours15000 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).
Item CodeProduct DiameterProduct HeightProduct Weight
EV-HOVER-CORE-120W-50K234 mm166 mm1900 g
EV-HOVER-CORE-150W-50K250 mm179 mm2200 g
EV-HOVER-CORE-200W-50K280 mm184 mm
EV/HOVER/CORE/120W/50K
EV/HOVER/CORE/150W/50K
EV/HOVER/CORE/200W/50K
Order codeItem codeDescriptionAvailability

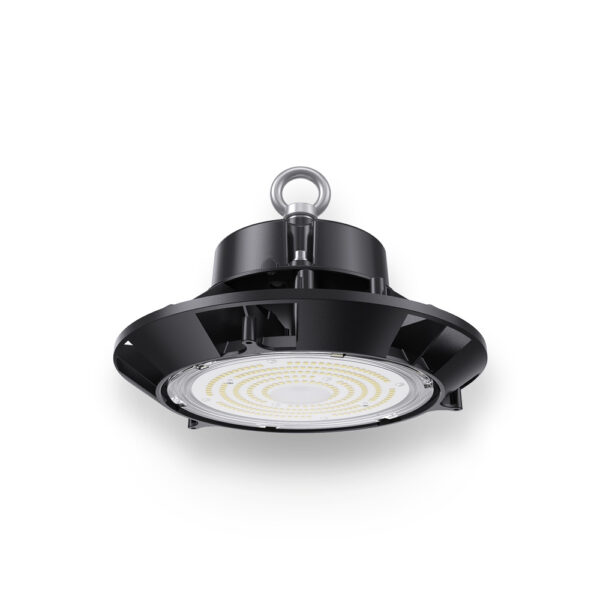

12011EV-HOVER-CORE-120W-50KHover Core 120W Highbay - 170lm/W - CRI80 - 120 degree - 5000K

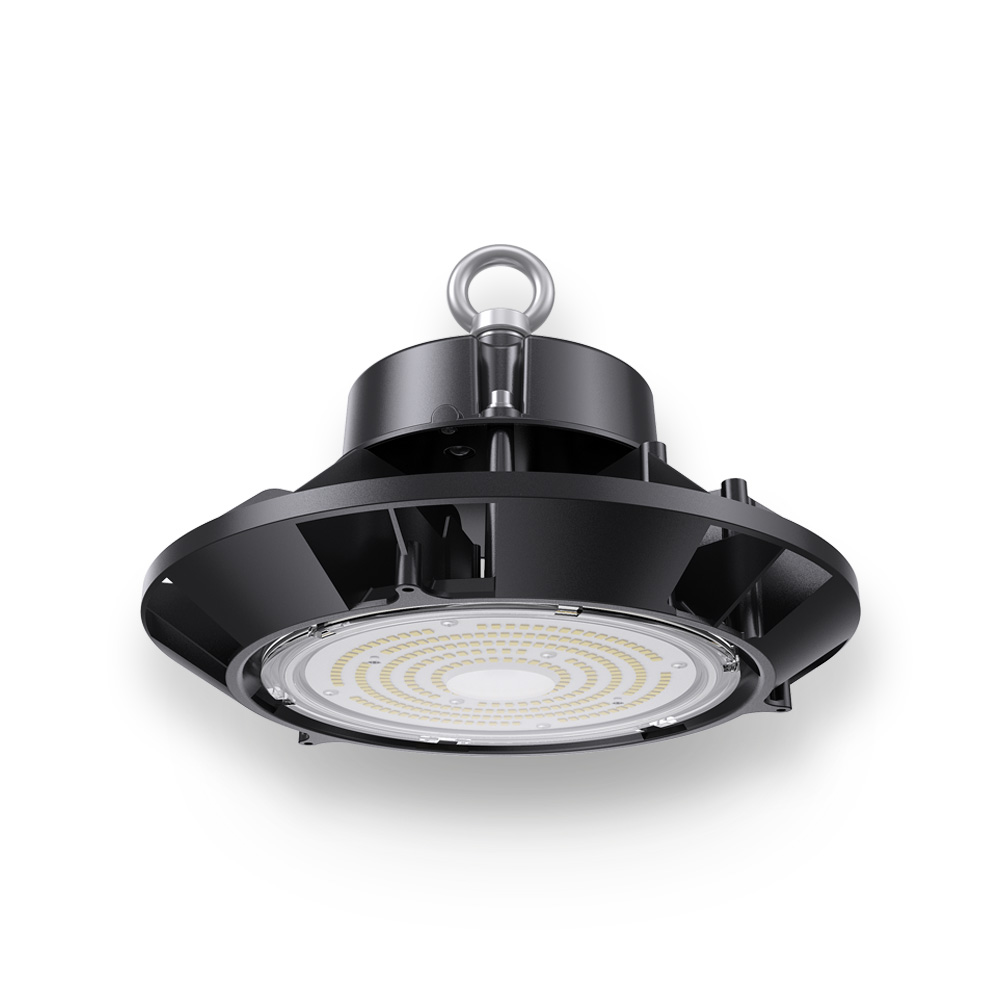

12012EV-HOVER-CORE-150W-50KHover Core 150W Highbay - 170lm/W - CRI80 - 120 degree - 5000K

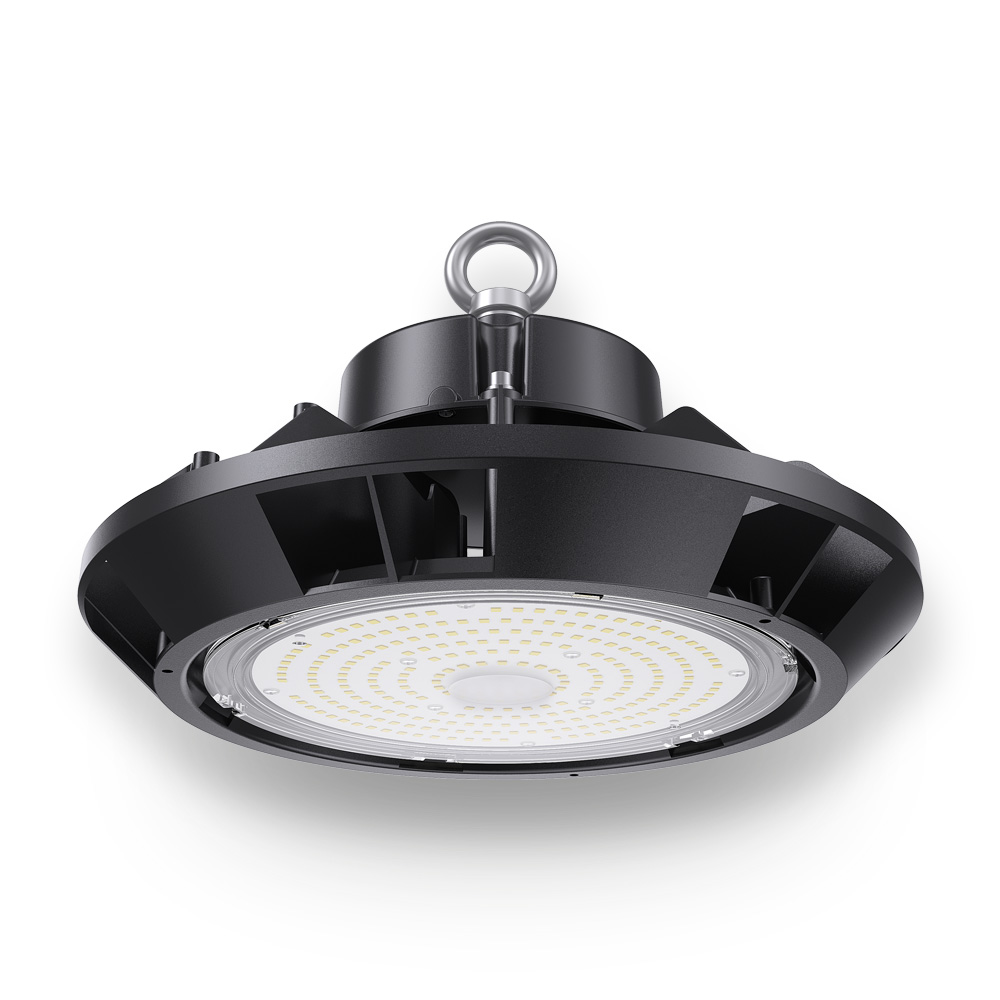

12013EV-HOVER-CORE-200W-50KHover Core 200W Highbay - 170lm/W - CRI80 - 120 degree - 5000K

*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
17719EV-HOVER-BRACKETCeiling mount bracket for Ektor Hover Core 120W and 150W highbays
16080EV-HOVER-CORE-DIFFUSERPC Diffusor for HOVER II 120W 150W 200W Highbay
16079HOVER-16079Ceiling mount bracket - Will suit EV-HOVER-CORE-200W-50K
