Ledfire Core

$0.00

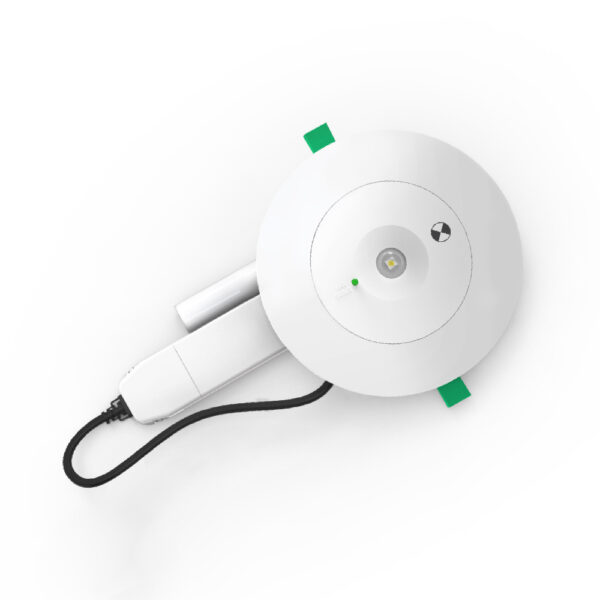

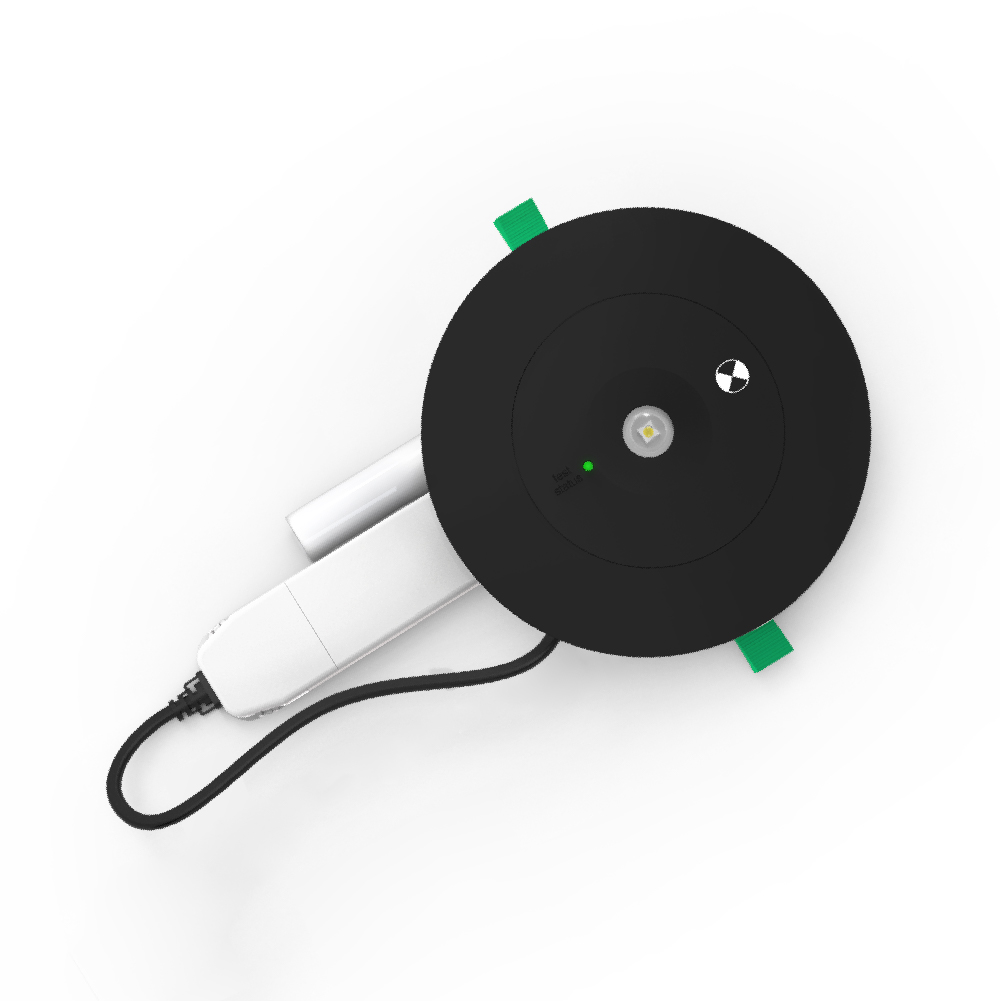

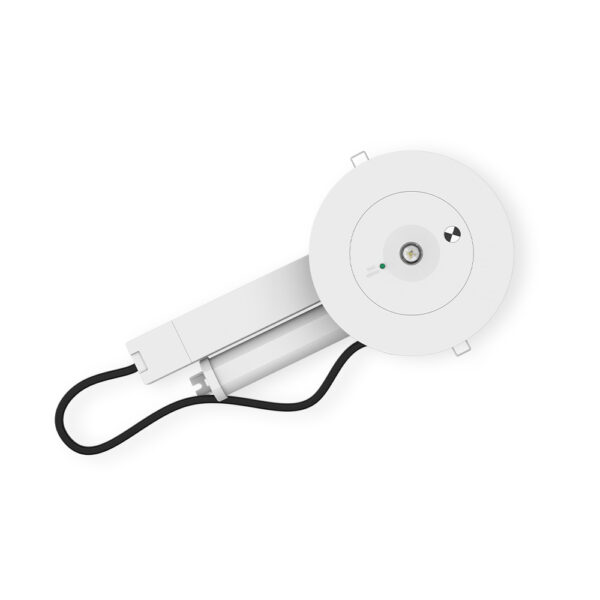

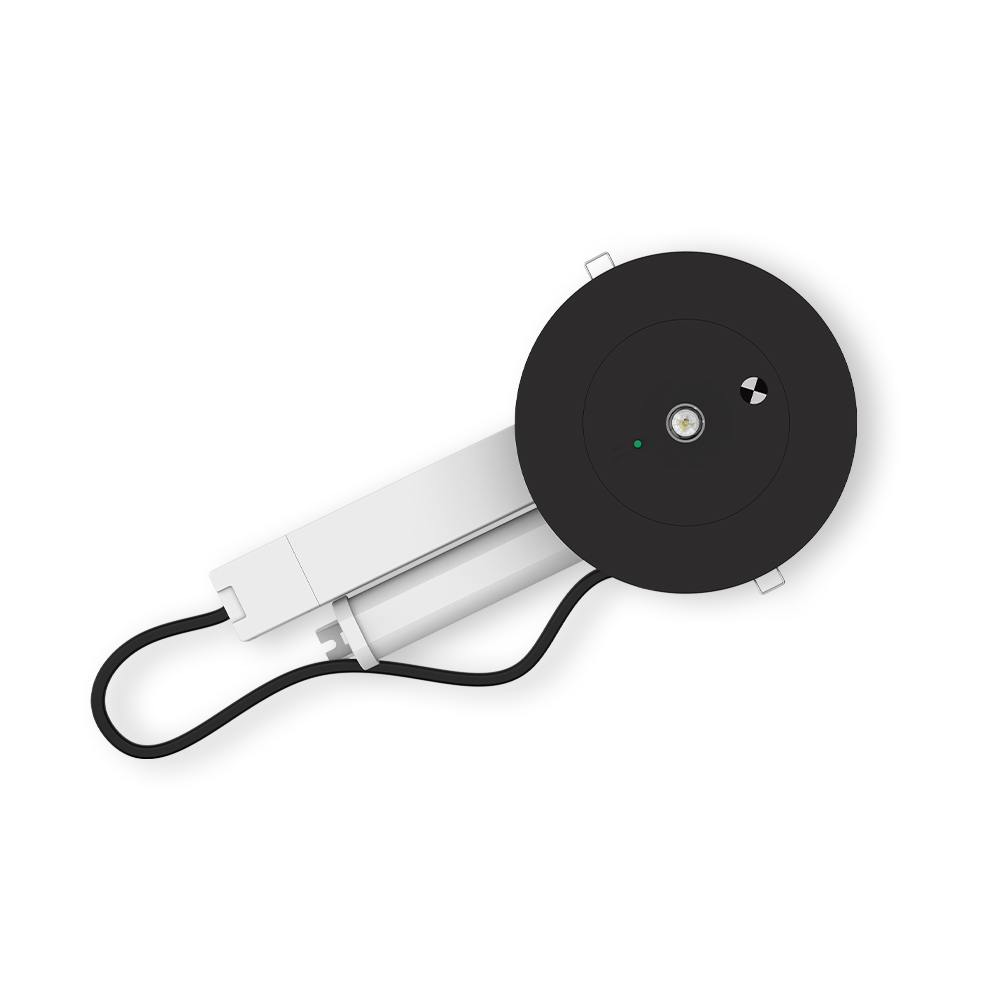

Basic Ledfire Emergency Luminaire

Features

  • Compact design
  • Non-maintained operation
  • Fully compliant (AS/NZS 2293)
  • Low energy consumption (avg. 0.45W)
  • Includes outer ring to suit hole sizes up to 130 mm
  • Long life electronics
  • 6 years design life at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Standalone (SPU)
SKU: Ledfire Core Category: Tags: , ,

Mechanical

Body MaterialPolycarbonate
Fitting ColourWhite
Installation TypeRecessed
IP RatingIP20

Electrical

Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage2 W
Standby Power0.45 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C

Lamp

CCT ConfigurationSingle
CRI>80

Colour temperature

CCT6700K
LED Wattage1.4 W

Driver

DimmableNo
Driver IncludedYes
Integrated DriverYes
Driver TypeFixed output
Flex & Plug or Lead Length1200 mm
Wiring TypeRe-wireable Flex & Plug (2 pin)

Emergency (EM suffix)

Replacement Battery Code01307
Emergency ClassificationC0:D32, C90:D32
Emergency Duration90 mins
Emergency Lumen Output189 lm
Emergency ModeNon-Maintained
Emergency Output Power1400 mW

Compliance

Product Design Life6 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty2 RTB (Total 2 Years)
Cutout70 (inner), 75-130 (outer) mm
Product Diameter84 mm
Product Height98 mm
Product Length69 mm
Product Width140 mm
EV/LEDFIRE/BASIC
Ordering codeItem codeDescriptionAvailability
11190EV-LEDFIRE-BASICLedfire Basic Emergency Luminaire - D32

*Auto generated datasheet (beta)
EV/LEDFIRE/BASIC 11190 2hr
