Ledfire Inbuilt

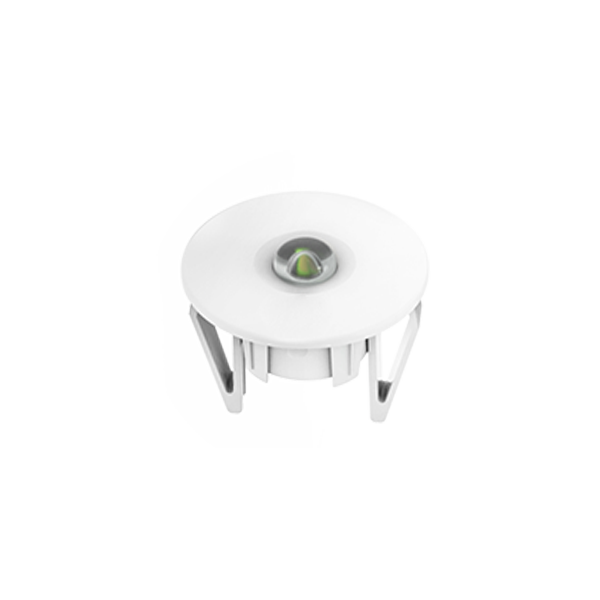

Ledfire Pro OEM Kit D32

SKU: Ledfire Inbuilt Category: Tags: , ,


Body MaterialPolycarbonate
Fitting Colour
Installation TypeRecessed
IP RatingIP20


Electrical RatingClass II
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage2 W
Standby Power0.25 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range0 to 40 °C


CCT ConfigurationSingle
Lamp/LED Current130 mA
Lamp/LED voltage9 V

Colour temperature

LED Wattage2.7 W


Driver IncludedYes
Integrated DriverNo
Driver ModeConstant Power
Driver TypeDALI DT1 Emergency
Wiring TypeRe-wireable terminal block (5 pin)

Emergency (EM suffix)

Replacement Battery Code01302
Emergency ClassificationC0:D32, C90:D32
Emergency ControlDALI Monitored (DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
Emergency Duration90 mins
Emergency Lumen Output208 lm
Emergency ModeNon-Maintained
Emergency Output Power1200 mW


Product Design Life10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.


Commercial Use Warranty5 RTB (Total 5 Years)
Cutout44 mm
Product Diameter56 mm
Product Height48 mm
Ordering codeItem codeDescriptionAvailability

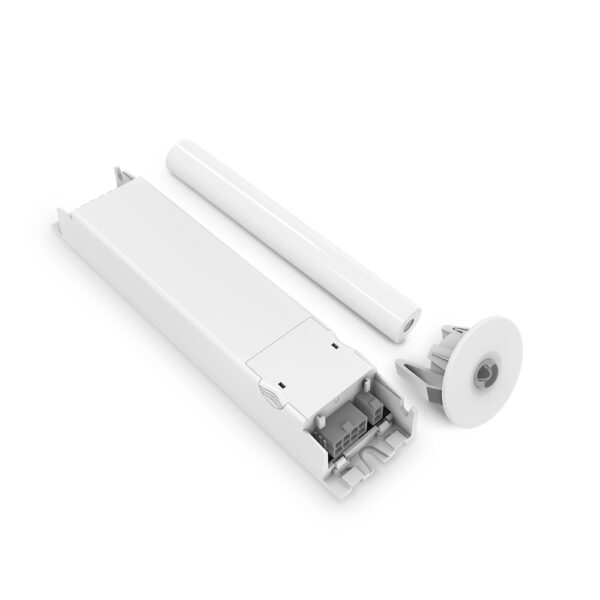

17570EV-LEDFIRE-OEM-PROLedfire Pro OEM Kit D32 White

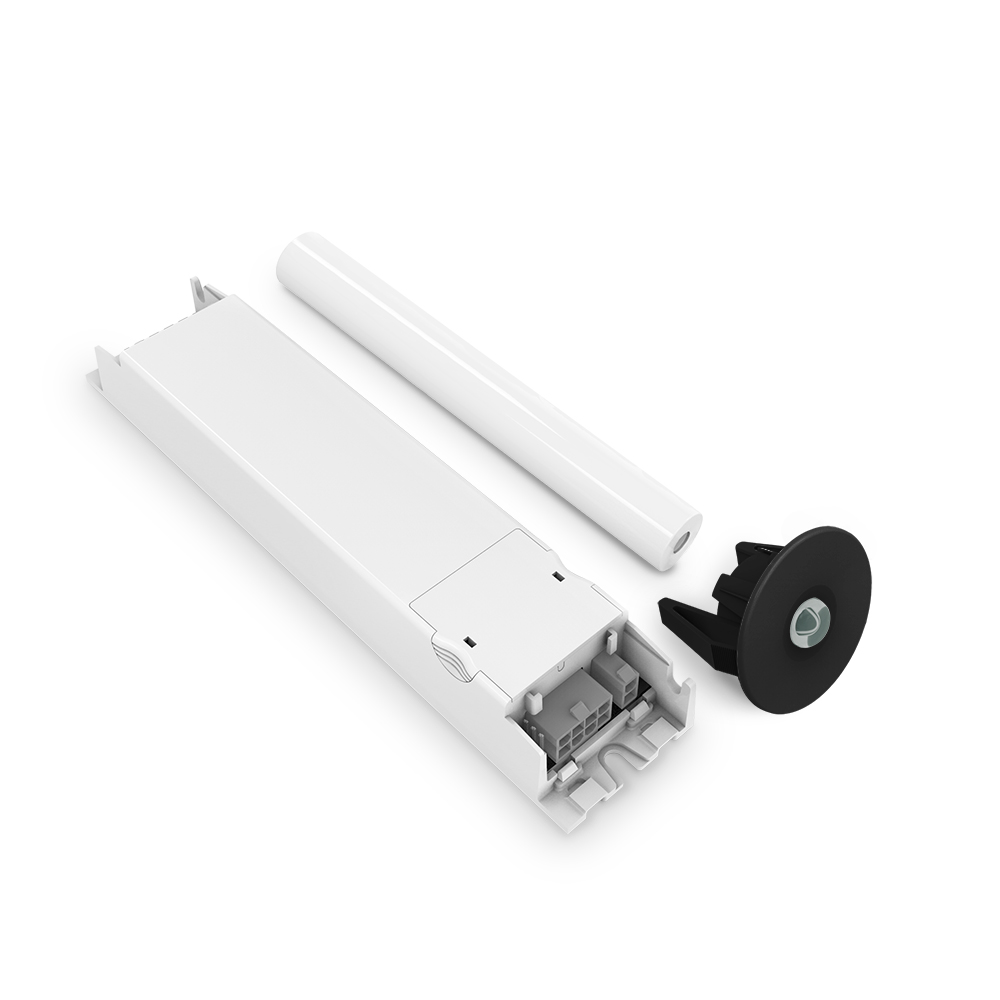

17571EV-LEDFIRE-OEM-PRO-BLedfire Pro OEM Kit D25 Black

*Auto generated datasheet (beta)
Ordering codeItem codeDescriptionAvailability
01302EV-1500mAh-6.4V-LiFeP04Battery- Stick 1500mAh 6.4V- 2 Cell LifePO4
17574EV-LEDFIRE-OEM-PRO-F&PLedfire Pro OEM Kit Flex&Plug with terminals and covers (F&P and covers only)
17568EV-LEDFIRE-OEM-PRO-JBLedfire OEM junction Box Mount - White
17569EV-LEDFIRE-OEM-PRO-SMLedfire OEM Surface Mount - White
