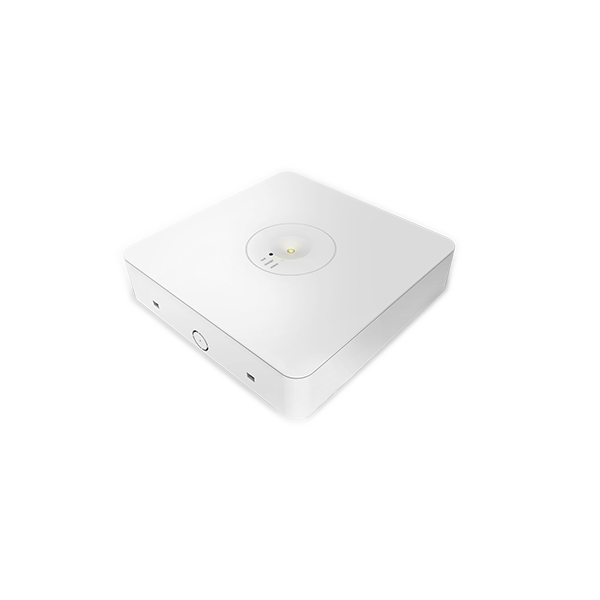

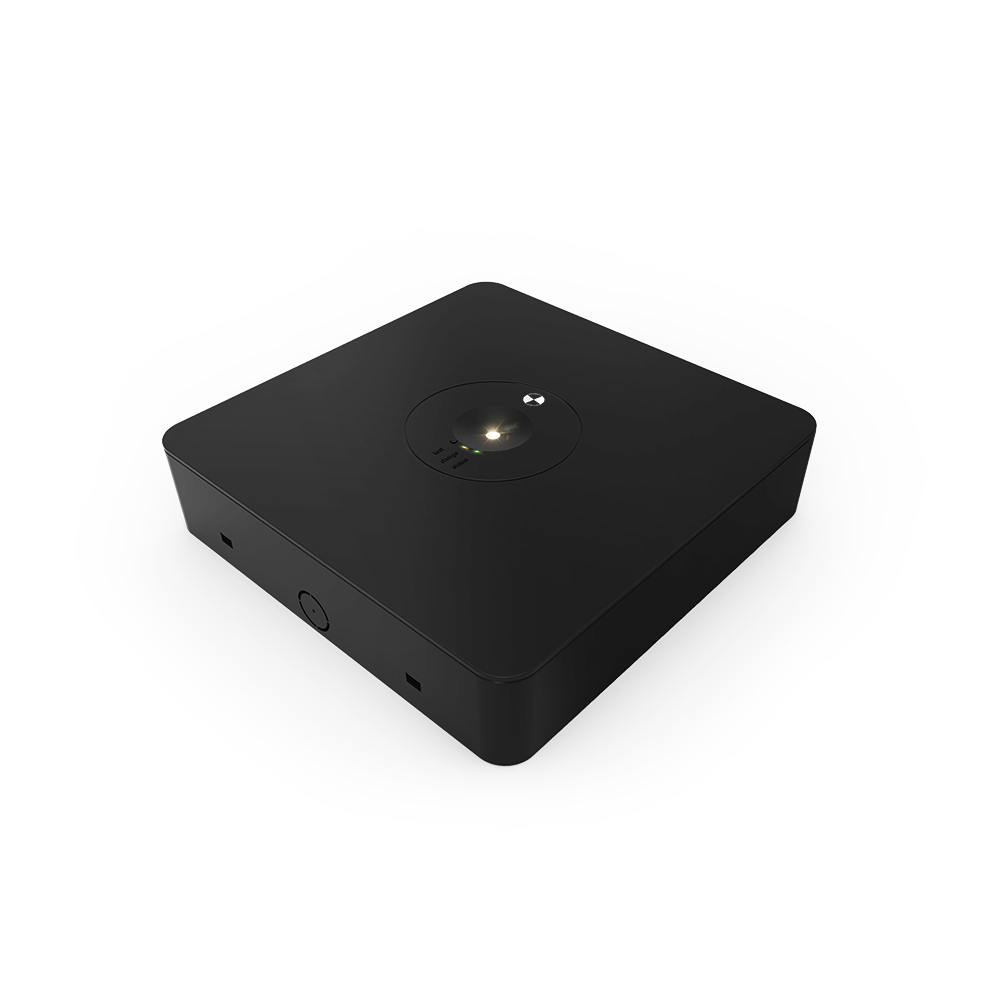

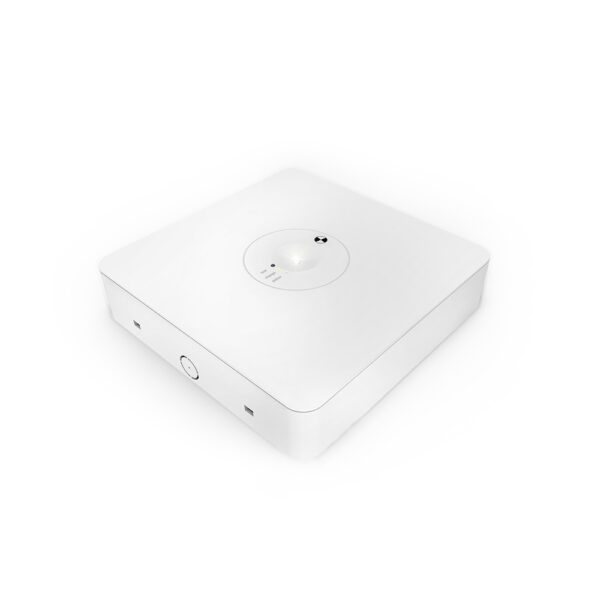

Ledfire SM Pro

Professional Surface Mounted Emergency Luminaire

  • Non-maintained operation with D80 classification
  • Soft-start charger to reduce building load
  • Lowest energy consumption (avg. <0.25W)
  • Selectable discharge rating for hazardous areas
  • Fast emergency switch-over (<0.5s) for high-task areas
  • Long life electronics
  • 12 years design life at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Standalone (SPU)
  • Self test (AS2293/ IEC62034)
  • DALI (IEC62386)
  • Ektor wired monitored system

Selected Models

  • Wireless meshing system
  • Wireless monitoring via Ektor Lynk
SKU: Ledfire SM Pro Category: Tags: , ,

Mechanical

IP RatingIP20
Fitting Colour
EV-LEDFIRE-SM-PRO-B
EV-LEDFIRE-SM-PRO-B-LK		Black
EV-LEDFIRE-SM-PRO
EV-LEDFIRE-SM-PRO-LK		White
Body MaterialPolycarbonate
Installation TypeSurface mount

Electrical

Working Temp Range0 to 40 °C
Input Frequency50 Hz
Electrical RatingClass II
Maximum Wattage3 W
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Standby Power0.25 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.

Colour temperature

LED Wattage4.3 W

Driver

Driver Type
EV-LEDFIRE-SM-PRO
EV-LEDFIRE-SM-PRO-B		DALI-DT1
EV-LEDFIRE-SM-PRO-B-LK
EV-LEDFIRE-SM-PRO-LK		WIRELESS-DT1
Driver IncludedYes
DimmableNo
Wiring TypeTerminal 5

Emergency (EM suffix)

Emergency ModeNon-Maintained
Emergency Classification
EV-LEDFIRE-SM-PRO-BC0:D80 C90:D80
EV-LEDFIRE-SM-PRO
EV-LEDFIRE-SM-PRO-B-LK
EV-LEDFIRE-SM-PRO-LK		C0:D80, C90:D80
Emergency Output Power4300 mW
Replacement Battery Code01303
Emergency Duration90 mins
Emergency Lumen Output370 lm
Emergency Control
EV-LEDFIRE-SM-PRO
EV-LEDFIRE-SM-PRO-B		DALI-DT1
EV-LEDFIRE-SM-PRO-B-LK
EV-LEDFIRE-SM-PRO-LK		WIRELESS-DT1

Compliance

Product Design Life12 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty0Y8Y
Product Height53 mm
Product Length230 mm
Product Width230 mm
EV/LEDFIRE/SM
EV/LEDFIRE/PRO/4/1_dimensions
EV/LEDFIRE/PRO/2/1_dimensions
DALI-DT1
Order codeItem codeDescriptionAvailability
01689EV-LEDFIRE-SM-PROLedfire Surface Mounted Emergency Luminaire -D80
01690EV-LEDFIRE-SM-PRO-BLedfire Surface Mounted Emergency Luminaire Black - D80
WIRELESS-DT1
Order codeItem codeDescriptionAvailability
10209EV-LEDFIRE-SM-PRO-B-LKEktor Lynk Ledfire Surface Mount EM Luminaire - D80 - Blk - PRO W/wireless
10208EV-LEDFIRE-SM-PRO-LKEktor Lynk Ledfire Surface Mounted Emergency Luminaire - D80 - PRO W/wireless

Compliance

Instruction Manual

Datasheet


*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
01303EV-3000mAh-6.4V-LiFeP04LiFePO4 Battery 6.4V 3000mAh
11967EV-DAUGHTERBOARD-LKEktor Lynk wireless daughterboard
12909EV-LEDFIRE-SM-CANSurface Mount Can IP20 for EV-LEDFIRE - White
12910EV-LEDFIRE-SM-CAN-BSurface Mount Can IP20 for EV-LEDFIRE - Black

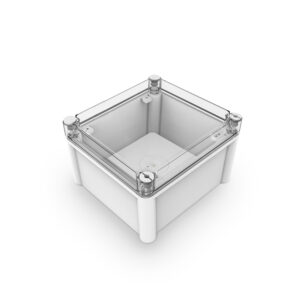

03923EV-LEDFIRE-SM-CASELedfire surface mount Weatherproof case IP66

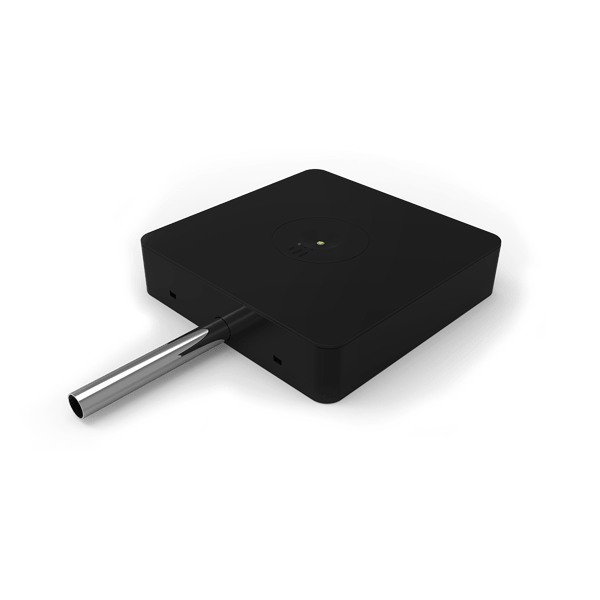

02004EV-RODMOUNT-BLKRodmount Brackets only for roof and luminaire body - Black (Rod size -25mm)

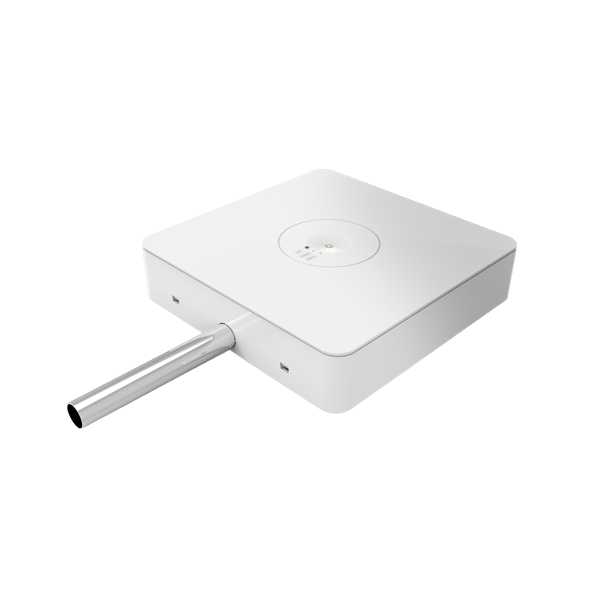

01990EV-RODMOUNT-WHTRodmount Brackets only for roof and luminaire body - White (Rod size 25mm)
