Ledfire

Emergency Luminaire

  • Long life electronics

Selected Models

  • Non-maintained operation with D63 classification
  • Soft-start charger to reduce building load
  • Lowest energy consumption (avg. <0.25W)
  • Fast emergency switch-over (<0.5s) for high-task areas
  • 8 years design life at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Standalone (SPU)
  • Self test (AS2293/ IEC62034)
  • DALI (IEC62386)
  • Non-maintained operation with D50 classification
  • Fully compliant (AS/NZS 2293)
  • Low energy consumption (avg. 0.45W)
  • Includes outer ring to suit hole sizes up to 130 mm
  • 6 years design life at max. ambient
  • Non-maintained operation with D80 classification
  • Low energy consumption (avg. 1.0W)
  • Includes outer ring to suit hole sizes up to 140 mm
  • 6 years design life at max. ambient temperatures
  • High quality lithium battery (LiFePO4) and smart charger
  • SafeTest – automated self-testing (AS2293/IEC62034)
  • SafeTest automatic self-testing
  • Ektor ONE – Lynk Wireless and DALI-2 monitoring
  • Selectable discharge rating for hazardous areas
  • 12 years design life at max. ambient
  • Ektor wired monitored system
  • Wireless monitoring via Ektor Lynk
  • Wireless meshing system
SKU: Ledfire Category:

Mechanical

IP RatingIP44 Front Face Only
Fitting Colour
EV-LEDFIRE-ADV-B-DA
EV-LEDFIRE-CORE-B

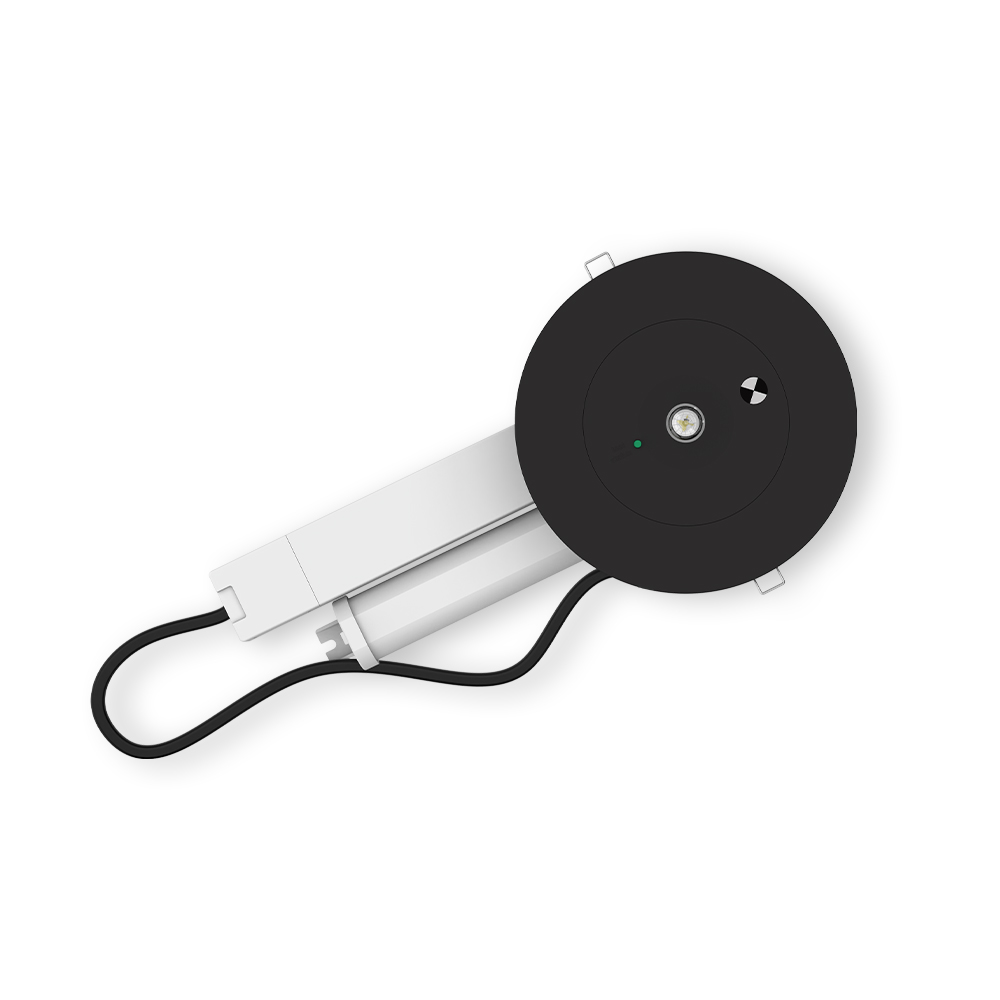

EV-LEDFIRE-ONE-B
EV-LEDFIRE-PRO-B
EV-LEDFIRE-PRO-B-LK		Black
EV-LEDFIRE-CORE

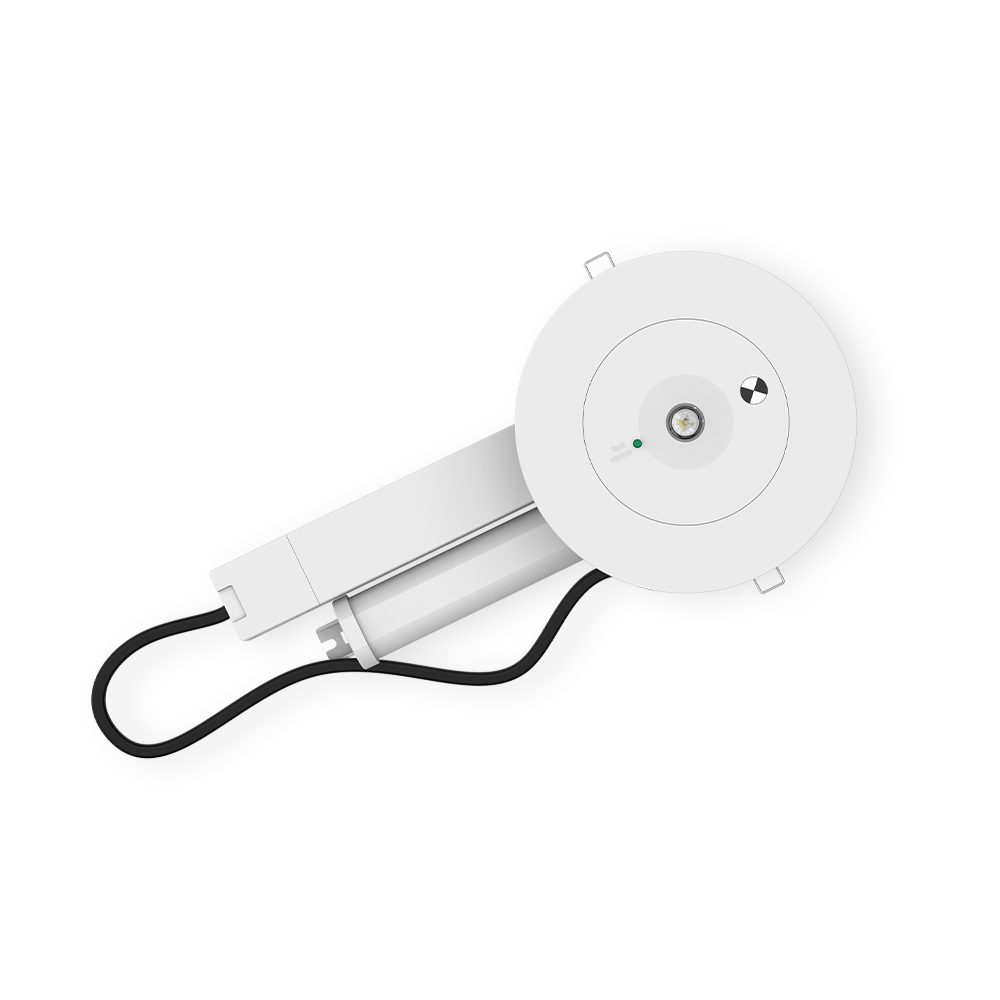

EV-LEDFIRE-ONE
EV-LEDFIRE-PRO-LK		White
Body MaterialPolycarbonate
Installation TypeRecessed

Electrical

Working Temp Range0 to 40 °C
Input Frequency50 Hz
Maximum Wattage
EV-LEDFIRE-CORE
EV-LEDFIRE-CORE-B		1.6 W
EV-LEDFIRE-CORE
EV-LEDFIRE-CORE-B		2 W
EV-LEDFIRE-ADV-B-DA
EV-LEDFIRE-ONE
EV-LEDFIRE-ONE-B
EV-LEDFIRE-PRO-B
EV-LEDFIRE-PRO-B-LK
EV-LEDFIRE-PRO-LK		2.5 W
Input voltage
EV-LEDFIRE-ONE
EV-LEDFIRE-ONE-B		220-240VAC
EV-LEDFIRE-CORE
EV-LEDFIRE-CORE-B		220-240Vac
EV-LEDFIRE-ADV-B-DA
EV-LEDFIRE-CORE
EV-LEDFIRE-CORE-B
EV-LEDFIRE-PRO-B
EV-LEDFIRE-PRO-B-LK
EV-LEDFIRE-PRO-LK		230Vac
Standby Power
EV-LEDFIRE-ADV-B-DA
EV-LEDFIRE-ONE
EV-LEDFIRE-ONE-B
EV-LEDFIRE-PRO-B
EV-LEDFIRE-PRO-B-LK
EV-LEDFIRE-PRO-LK		0.25 W
EV-LEDFIRE-CORE
EV-LEDFIRE-CORE-B		0.45 W
EV-LEDFIRE-CORE
EV-LEDFIRE-CORE-B		1 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.

Colour temperature

LED Wattage4.3 W

Driver

Driver Type
EV-LEDFIRE-ADV-B-DA
EV-LEDFIRE-PRO-B		DALI DT1 Emergency
EV-LEDFIRE-CORE
EV-LEDFIRE-CORE-B		Fixed output
EV-LEDFIRE-ONE
EV-LEDFIRE-ONE-B		Lynk Wireless or DALI-2 with DT1
EV-LEDFIRE-PRO-B-LK
EV-LEDFIRE-PRO-LK		Wireless (IEC62386-104) with DT1
Driver IncludedYes
Flex & Plug or Lead Length1200 mm
Wiring Type
EV-LEDFIRE-ONE
EV-LEDFIRE-ONE-B		Flex and Plug (2 pin) and Junction Box (4P)
EV-LEDFIRE-ADV-B-DA
EV-LEDFIRE-CORE
EV-LEDFIRE-CORE-B
EV-LEDFIRE-PRO-B
EV-LEDFIRE-PRO-B-LK
EV-LEDFIRE-PRO-LK		Re-wireable Flex & Plug (2 pin)
Junction Box (4p) ~ The rewireable 4 pole junction box allows for the easy wiring of soft wiring DALI-2 looms when used with soft-wiring systems.
DimmableNo

Emergency (EM suffix)

Emergency ModeNon-Maintained
Emergency Classification
EV-LEDFIRE-CORE
EV-LEDFIRE-CORE-B		C0:D50, C90:D50
EV-LEDFIRE-ADV-B-DAC0:D63, C90:D63
EV-LEDFIRE-CORE
EV-LEDFIRE-CORE-B
EV-LEDFIRE-PRO-B
EV-LEDFIRE-PRO-B-LK
EV-LEDFIRE-PRO-LK		C0:D80, C90:D80
EV-LEDFIRE-ONE
EV-LEDFIRE-ONE-B		D63
Emergency Output Power
EV-LEDFIRE-CORE
EV-LEDFIRE-CORE-B		1500 mW
EV-LEDFIRE-ADV-B-DA
EV-LEDFIRE-ONE
EV-LEDFIRE-ONE-B		2100 mW
EV-LEDFIRE-PRO-B
EV-LEDFIRE-PRO-B-LK
EV-LEDFIRE-PRO-LK		2900 mW
EV-LEDFIRE-CORE
EV-LEDFIRE-CORE-B		3800 mW
Replacement Battery Code
EV-LEDFIRE-CORE
EV-LEDFIRE-CORE-B		01300
EV-LEDFIRE-ADV-B-DA01302
EV-LEDFIRE-PRO-B
EV-LEDFIRE-PRO-B-LK
EV-LEDFIRE-PRO-LK		01303
EV-LEDFIRE-CORE
EV-LEDFIRE-CORE-B		53023
Emergency Duration90 mins
Emergency Lumen Output
EV-LEDFIRE-CORE
EV-LEDFIRE-CORE-B		250 lm
EV-LEDFIRE-ADV-B-DA
EV-LEDFIRE-ONE
EV-LEDFIRE-ONE-B		330 lm
EV-LEDFIRE-PRO-B
EV-LEDFIRE-PRO-B-LK
EV-LEDFIRE-PRO-LK		380 lm
EV-LEDFIRE-CORE
EV-LEDFIRE-CORE-B		400 lm
Emergency Control
EV-LEDFIRE-ADV-B-DA
EV-LEDFIRE-PRO-B		DALI Monitored (DT1)
EV-LEDFIRE-CORE
EV-LEDFIRE-CORE-B		Ektor SafeTest (Automatic self-test)
EV-LEDFIRE-PRO-B-LK
EV-LEDFIRE-PRO-LK		IEC62386-104 (Wireless DT1)
EV-LEDFIRE-ONE
EV-LEDFIRE-ONE-B		Lynk Wireless or DALI-2
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
IEC62386-104 ~ Supports wireless test and monitoring over IEC62386-104 using IEC62386-202.

Compliance

Product Design Life
EV-LEDFIRE-ONE
EV-LEDFIRE-ONE-B
EV-LEDFIRE-PRO-B
EV-LEDFIRE-PRO-B-LK
EV-LEDFIRE-PRO-LK		12 years
EV-LEDFIRE-CORE
EV-LEDFIRE-CORE-B		6
EV-LEDFIRE-CORE
EV-LEDFIRE-CORE-B		6 years
EV-LEDFIRE-ADV-B-DA8 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty
EV-LEDFIRE-CORE
EV-LEDFIRE-CORE-B		5 RTB (Total 5 Years)
EV-LEDFIRE-ADV-B-DA6 RTB (Total 6 Years)
EV-LEDFIRE-ONE
EV-LEDFIRE-ONE-B
EV-LEDFIRE-PRO-B
EV-LEDFIRE-PRO-B-LK
EV-LEDFIRE-PRO-LK		8 RTB (Total 8 Years)
Item CodeProduct HeightCutoutProduct DiameterProduct Width
EV-LEDFIRE-ADV-B-DA26 mm70 (inner), 75-130 (outer) mm84 mm140 mm
EV-LEDFIRE-ONE26 mm70/75-130 mm84 mm140 mm
EV-LEDFIRE-ONE-B26 mm70/75-130 mm84 mm140 mm
EV-LEDFIRE-PRO-B26 mm70 (inner), 75-130 (outer) mm84 mm140 mm
EV-LEDFIRE-CORE16 mm70 (inner), 75-130 (outer) mm84 mm140 mm
EV-LEDFIRE-CORE-B16 mm70 (inner), 75-130 (outer) mm84 mm140 mm
EV-LEDFIRE-PRO-B-LK16 mm70 (inner), 75-130 (outer) mm84 mm140 mm
EV-LEDFIRE-PRO-LK16 mm70 (inner), 75-130 (outer) mm84 mm140 mm
EV/LEDFIRE/ADV
EV/LEDFIRE/CORE
EV/LEDFIRE/ONE
EV/LEDFIRE/PRO
DALI DT1 Emergency
Order codeItem codeDescriptionAvailability
10973EV-LEDFIRE-ADV-B-DALedfire Advanced Emergency Luminaire DALI - Black - D63 - W/F&P
01697EV-LEDFIRE-PRO-BLedfire Pro Emergency Luminaire Black - D80
Fixed output
Order codeItem codeDescriptionAvailability
14861EV-LEDFIRE-CORELedfire Core Emergency Luminaire - Series II - D80
01696EV-LEDFIRE-CORELedfire Core Emergency Luminaire - D50
14862EV-LEDFIRE-CORE-BLedfire Core Emergency Luminaire - Series II - D80 - Black
11405EV-LEDFIRE-CORE-BLedfire Core Emergency Luminaire Black - D50
Lynk Wireless or DALI-2 with DT1
Order codeItem codeDescriptionAvailability
14863EV-LEDFIRE-ONEEktor One Ledfire Emergency Luminaire - Series II - D80 - W/Wireless and DALI
14864EV-LEDFIRE-ONE-BEktor One Ledfire Emergency Luminaire - Series II - D80 - W/Wireless and DALI
Wireless (IEC62386-104) with DT1
Order codeItem codeDescriptionAvailability
10253EV-LEDFIRE-PRO-B-LKEktor Lynk Ledfire Emergency Luminaire - D80 - Black - PRO W/wireless
10252EV-LEDFIRE-PRO-LKEktor Lynk Ledfire Emergency Luminaire - D80 - PRO W/wireless
Order codeItem codeDescriptionAvailability
01303EV-3000mAh-6.4V-LiFeP04LiFePO4 Battery 6.4V 3000mAh
00705EV-CMS-2.4M-5PINCMS 2.4M 5 Pin Plug Set - with Green Plug to suit GEN III ledfires
11790EV-CMS-5CORE-DALI-F&PCMS 2.5M 5 core DALI flex and plug with bootlaced ends
12800EV-DOME-SM-HEADDome vandal resistant fitting Head Only - IP65/IK10 with ceiling bracket
11088EV-GEN-DALI-JBJunction box to suit Generation 3 Products
12909EV-LEDFIRE-SM-CANSurface Mount Can IP20 for EV-LEDFIRE - White
12910EV-LEDFIRE-SM-CAN-BSurface Mount Can IP20 for EV-LEDFIRE - Black
