Mercury Remote Surface Mount

$0.00

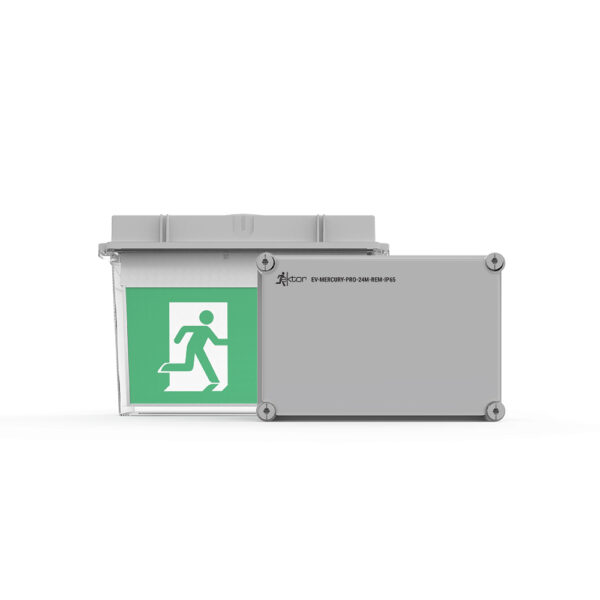

Mercury Remote Mount Emergency Exit, 24m

  • Designed for low temperature environments such as cold rooms and freezers
  • Single and double-sided decals
  • Soft-start charger to reduce building load
  • IP65 weatherproof case with remote driver
  • Fast emergency switch-over (<0.5s) for high-task areas

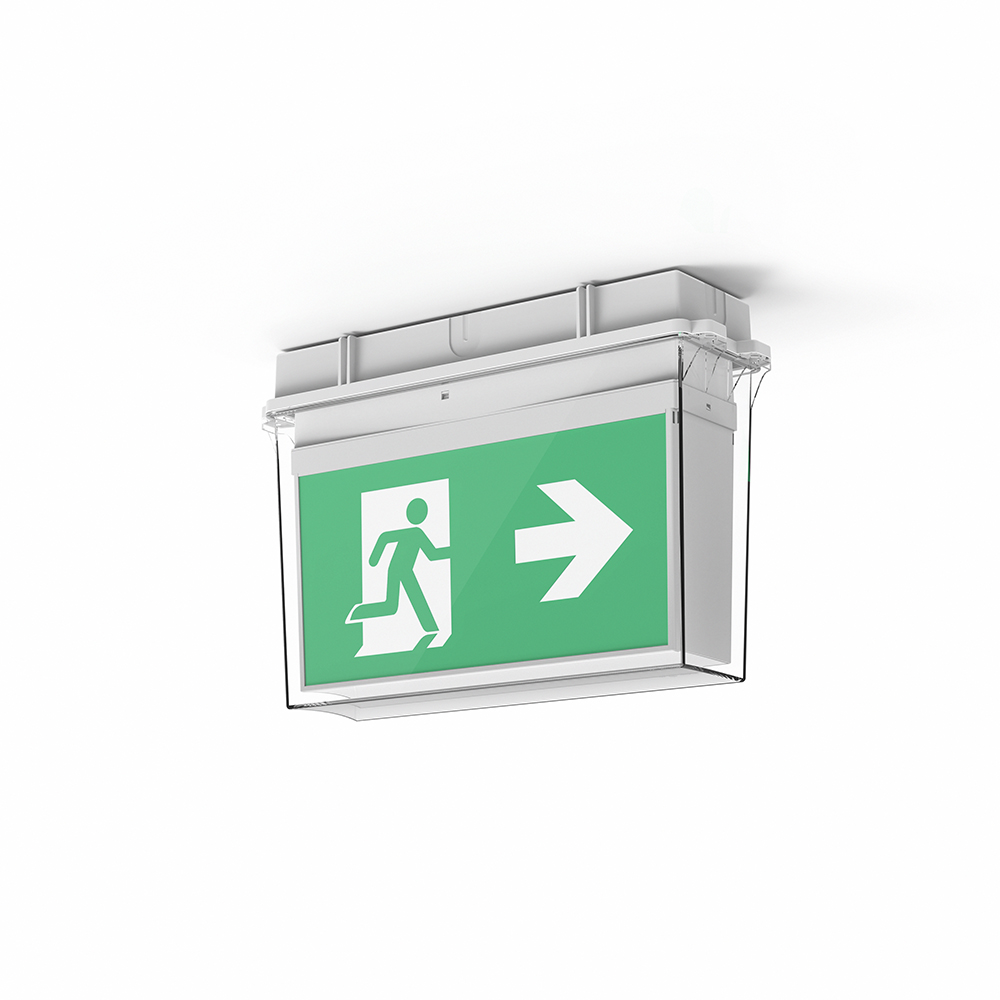

  • Wall, ceiling, chain and rod mounting (with rod mount kit)
  • Long life electronics
  • 12 years design life at max. ambient
  • High quality Lithium battery (LiFePO4) and smart charger
  • Standalone (SPU)
  • DALI (IEC62386)
  • Self test (AS2293 / IEC62034)
  • Working temperature range of -40ºC to 40ºC (Main exit enclosure), 0ºC to 40ºC (Remote control box)
  • Ektor wired monitored system
  • Wireless upgrade via Ektor Lynk (optional)
SKU: Mercury Remote Surface Mount Category: Tags: , , ,

Mechanical

IP RatingIP65
IK RatingIK10
Fitting ColourWhite
Body MaterialPolycarbonate
Diffuser MaterialPolycarbonate
Installation TypeSurface mount

Electrical

Working Temp Range-40 to 40 °C
Input Frequency50 Hz
Maximum Wattage3 W
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Standby Power1.9 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.

Driver

Driver TypeDALI DT1 Emergency
Driver IncludedYes

Emergency (EM suffix)

Emergency ModeMaintained
Emergency ClassificationC0:E8, C90:E8, C180:D10
Emergency Output Power1000 mW
Replacement Battery Code01302
Emergency Duration90 mins
Emergency Lumen Output60 lm
Viewing Distance24 m
Decal Size300 x 150 mm
Emergency ControlDALI Monitored (DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.

Compliance

Product Design Life12 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty8 RTB (Total 8 Years)
EV/MERCURY/PRO/REM/IP65
Order codeItem codeDescriptionAvailability
11871EV-MERCURY-PRO-24M-REM-IP65Mercury Pro Exit Light with remote driver and battery in IP65 case

*Auto generated datasheet (beta)
EV/MERCURY/PRO/24M/REM/IP65
