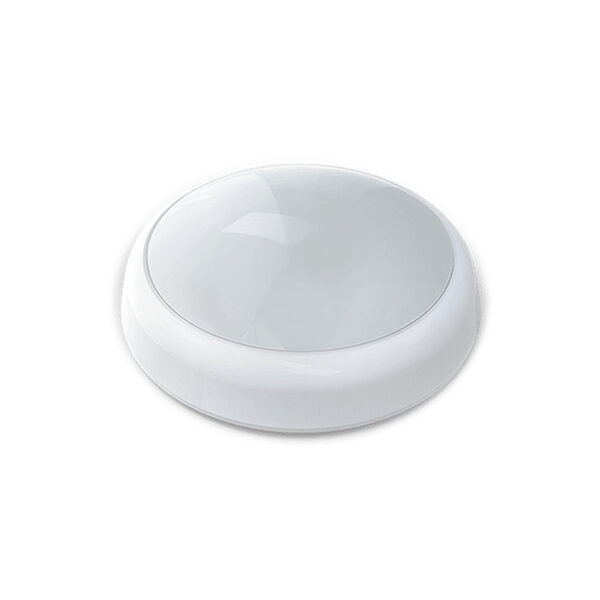

Mechanical
| IP Rating | IP54 |
|---|---|
| Fitting Colour | White |
| Body Material | Polycarbonate |
| Diffuser Material | Polycarbonate |
| Installation Type | Surface mount |
| IK Rating | IK08 |
Electrical
| Working Temp Range | 0 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Switch Type | Inline |
| Maximum Wattage | |
| EV-PEARL-IP54 | 13.5 W |
| EV-PEARL-IP54-S | 14.5 W |
| EV-PEARL-EM-IP54-LITE | 16 W |
| EV-PEARL-EM-IP54-LITE-S | 17 W |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Standby Power | 14.5 W |
| Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge. | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| CCT Configuration | TRI-CCT |
LED Lifetime
| LED Lifetime | |
|---|---|
| EV-PEARL-IP54-S | 54000 hrs |
| EV-PEARL-EM-IP54-LITE EV-PEARL-EM-IP54-LITE-S EV-PEARL-IP54 | >54,000 hrs |
| This is the Reported LED Lifetime in Hours based on TM-21. Ektor does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
| LED Lifetime Rating | L70 B10 |
| TM-21 Test Hours | 9000 hrs |
Colour temperature
| EV-PEARL-EM-IP54-LITE EV-PEARL-IP54
| |||||||||||
EV-PEARL-EM-IP54-LITE-S
| |||||||||||
EV-PEARL-IP54-S
| |||||||||||
Driver
| Driver Type | Fixed output |
|---|---|
| Driver Included | Yes |
| Integrated Driver | No |
| Dimmable | No |
| Wiring Type | |
| EV-PEARL-IP54 EV-PEARL-IP54-S | Re-wireable terminal block (3 pin) |
| EV-PEARL-EM-IP54-LITE EV-PEARL-EM-IP54-LITE-S | Re-wireable terminal block (4 pin) |
Sensor (S suffix)
| Sensor Type | Microwave |
|---|---|
| Lux Range | 3-1000 lx |
| Detection Range | 6 m |
| Time Delay | 12 |
| Switched Output | Yes |
| Switched Output Rating | 125 W |
| Corridor Function | No |
| Lux Adjustment | Yes |
| Manual Override | No |
| Dawn Reset | No |
| Dusk Mode | Yes |
| Adjustable Hold Time | Yes |
| Adjustable Standby Level | No |
| Adjustable Standby Period | No |
| Adjustable Detection Area / Sensitivity | Yes |
| Load Types | LED |
Emergency (EM suffix)
| Emergency Mode | Maintained |
|---|---|
| Emergency Classification | C0:D32, C90:D32 |
| Emergency Output Power | 3300 mW |
| Replacement Battery Code | 01302 |
| Emergency Duration | 90 mins |
| Emergency Lumen Output | 312 lm |
Compliance
| Product Design Life | |
|---|---|
| EV-PEARL-IP54-S | 6 years |
| EV-PEARL-EM-IP54-LITE EV-PEARL-EM-IP54-LITE-S EV-PEARL-IP54 | 8 years |
| The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
| Standards |
|
Warranty
| VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
|---|---|
| VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered. | |
| Commercial Use Warranty | |
| EV-PEARL-IP54 EV-PEARL-IP54-S | 5 RTB (Total 5 Years) |
| EV-PEARL-EM-IP54-LITE EV-PEARL-EM-IP54-LITE-S | 5 RTB General, 6 RTB Emergency |
