Pearl Core IP20

$0.00

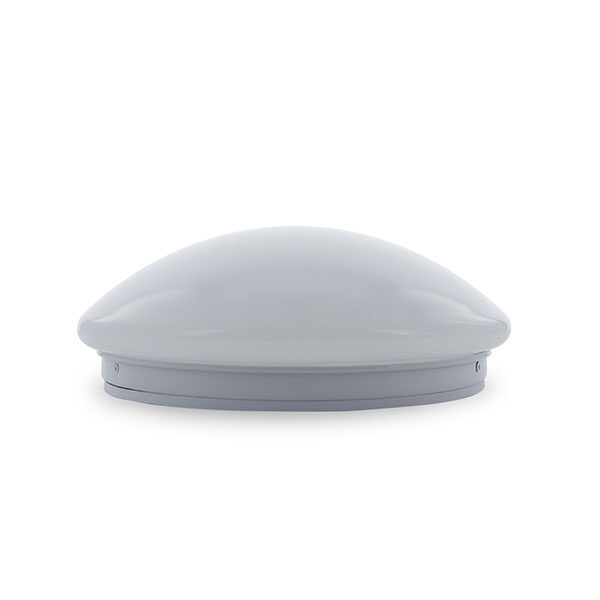

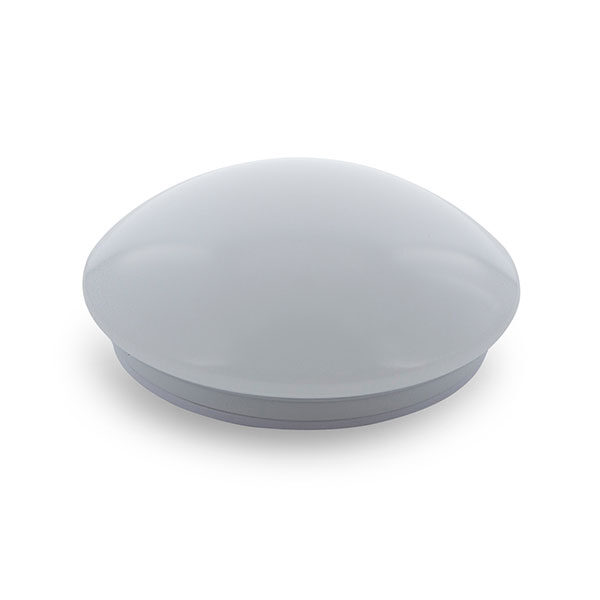

Pearl Core Circular IP20, Tri-Colour, 380 mm

  • Tri-colour selection
  • Insect resistant twist and lock seal
  • Fully compliant (AS/NZS 2293.3)
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Long life electronics
  • 6 years design life at max. ambient
  • Standalone (SPU)
SKU: Pearl Core IP20 Category: Tags: , , ,

Mechanical

Body MaterialPolycarbonate
Diffuser MaterialPolycarbonate
Fitting ColourWhite
Installation TypeSurface mount
IP RatingIP20

Electrical

Electrical RatingClass I
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage31 W
Switch TypeInline
Working Temp Range0 to 40 °C

Lamp

CCT ConfigurationTRI-CCT
Colour Rendering Index (CRI)>80

LED Lifetime

TM-21 Test Hours9000 hrs

Colour temperature

3000 K1870 lm
4000 K2100 lm
5000 K1925 lm

Driver

DimmableNo
Driver IncludedYes
Integrated DriverNo
Driver TypeFixed output
Wiring TypeRe-wireable terminal block (4 pin)

Emergency (EM suffix)

Replacement Battery Code01302
Emergency ClassificationC0:D25, C90:D25
Emergency Duration90 mins
Emergency Lumen Output230 lm
Emergency ModeMaintained
Emergency Output Power2700 mW

Compliance

Product Design Life6 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty
  • 5Y return to base on General lighting components
  • 6Y return to base on Emergency lighting components
VIP Warranty2 Onsite, 3 RTB (Total 5 Years)
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered.
Product Diameter380 mm
Product Height113 mm
EV/3013/EM/LITE
Ordering codeItem codeDescriptionAvailability
11050EV-3013-EM-LITE26W 395mm Opal acrylic LED Oyster emergency Lite D32 Tri colour

*Auto generated datasheet (beta)
Ordering codeItem codeDescriptionAvailability
01302EV-1500mAh-6.4V-LiFeP04LiFePO4 Battery 6.4V 1500mAh
EV/3013/EM/LITE (EM)
IES File

IES File


EV/3013/EM/LITE (4000K)
IES File

IES File
