Efficiencies
| Total System Efficiency | |
|---|---|
| EV-PLANAR-PRO-150W-30105D-50K EV-PLANAR-PRO-150W-60105D-50K EV-PLANAR-PRO-200W-30105D-50K EV-PLANAR-PRO-200W-60105D-50K EV-PLANAR-PRO-300W-30105D-50K-DA | 170 lm/W |
| EV-PLANAR-PRO-400W-30105D-50K | 172 lm/W |
| EV-PLANAR-PRO-400W-60105D-50K | 175 lm/W |
| The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. | |
Mechanical
| IP Rating | IP66 |
|---|---|
| IK Rating | IK10 |
| Fitting Colour | Silver |
| Body Material | Aluminium alloy |
| Diffuser Material | Polycarbonate |

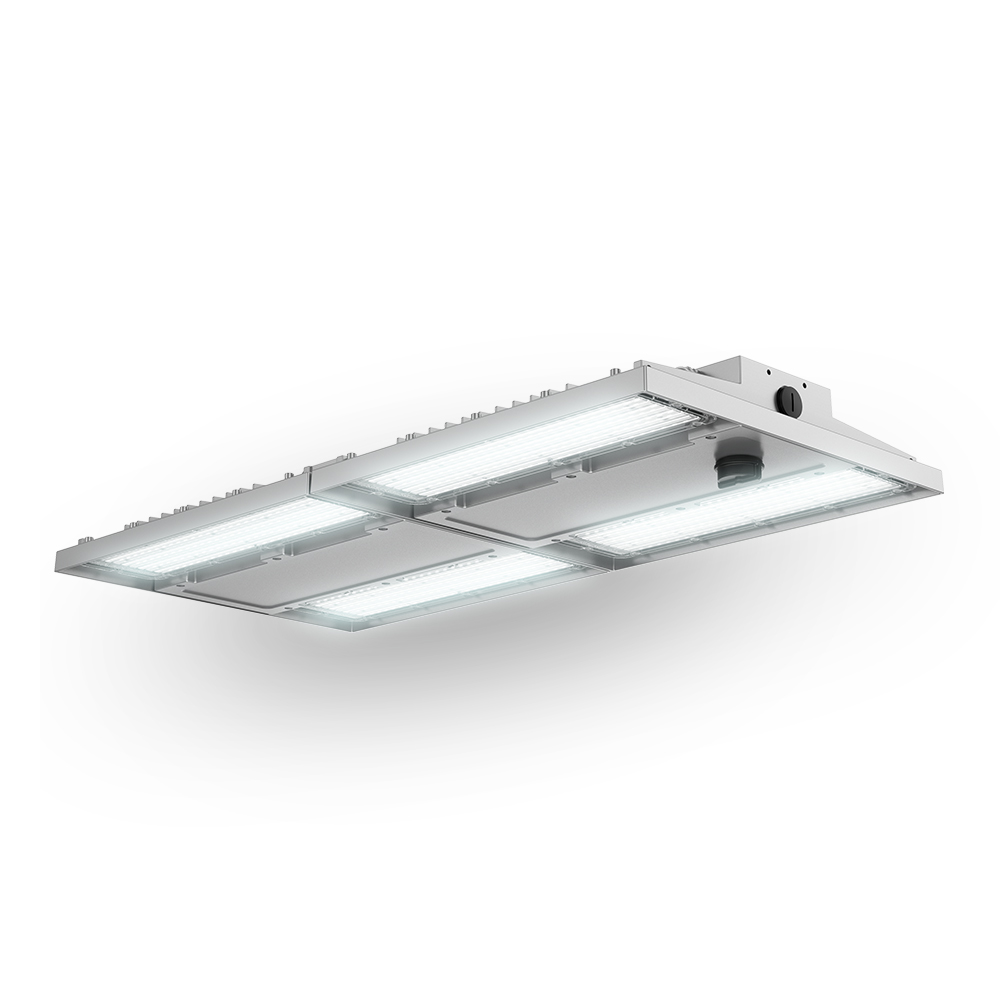

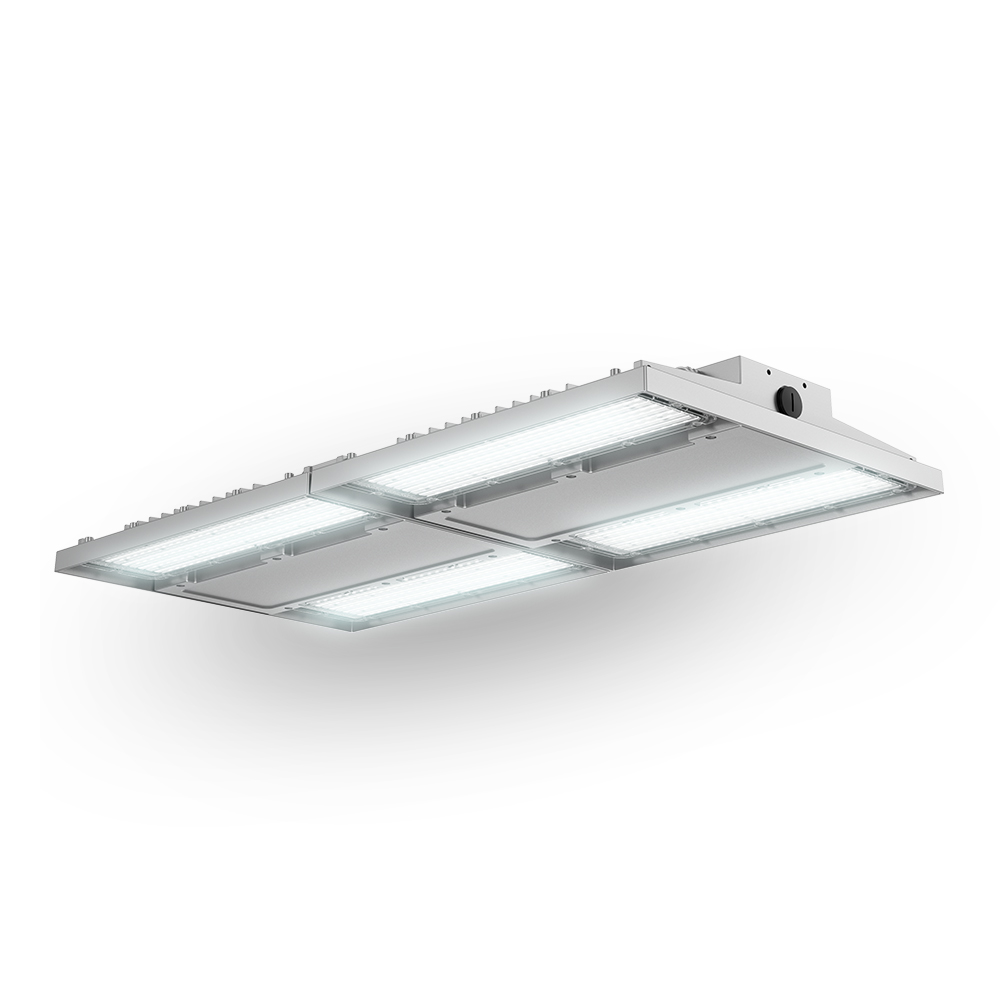

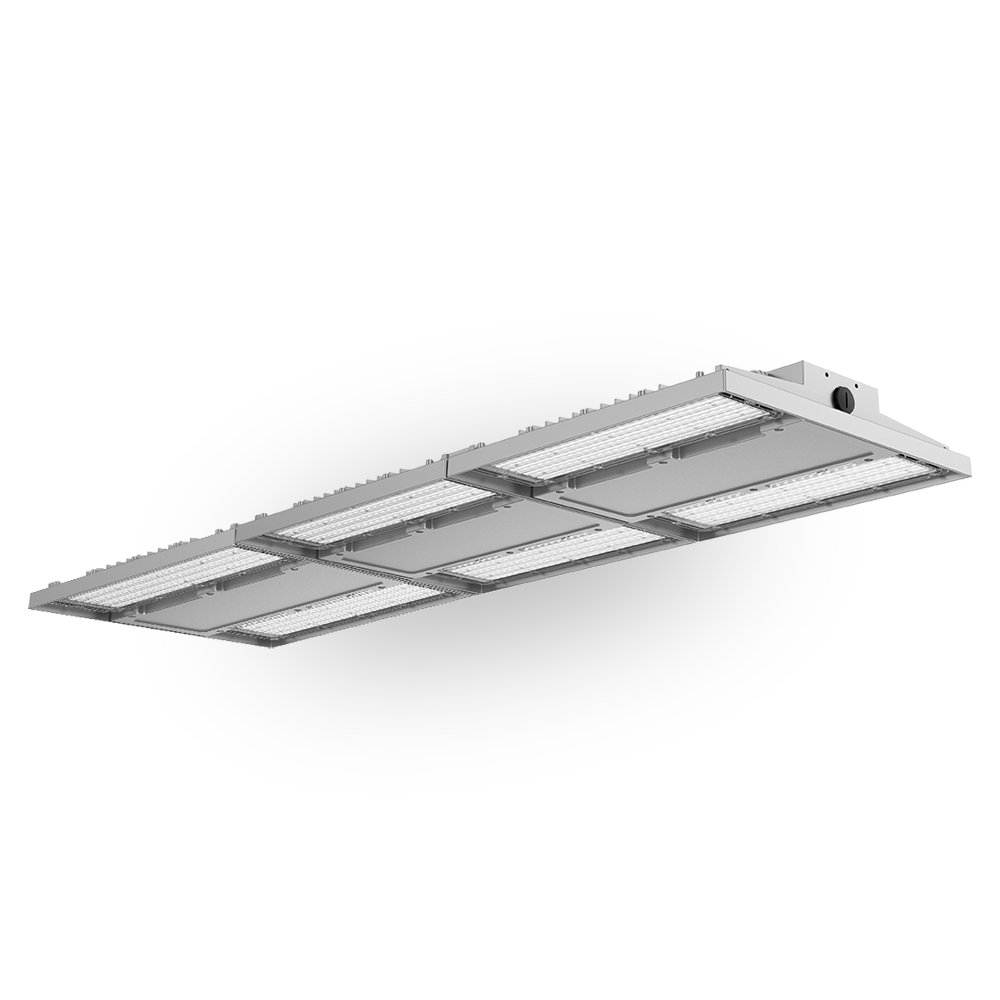

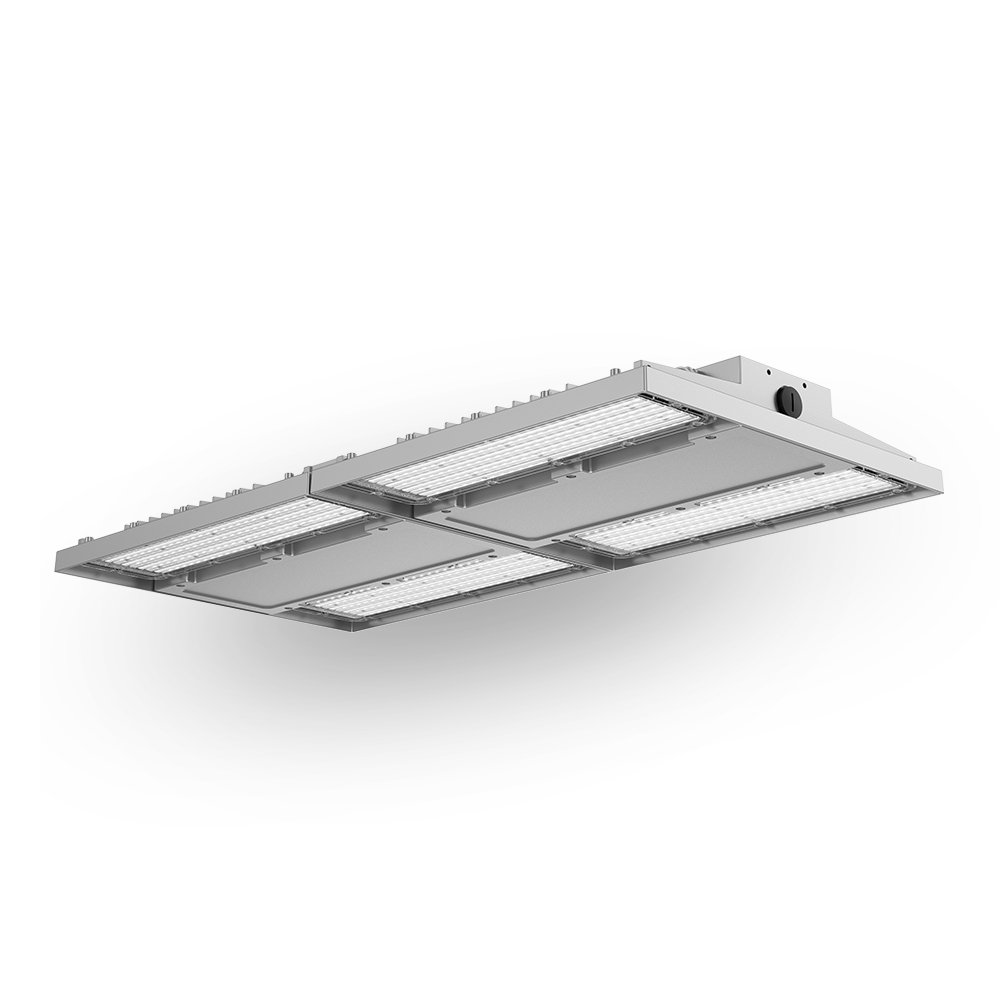

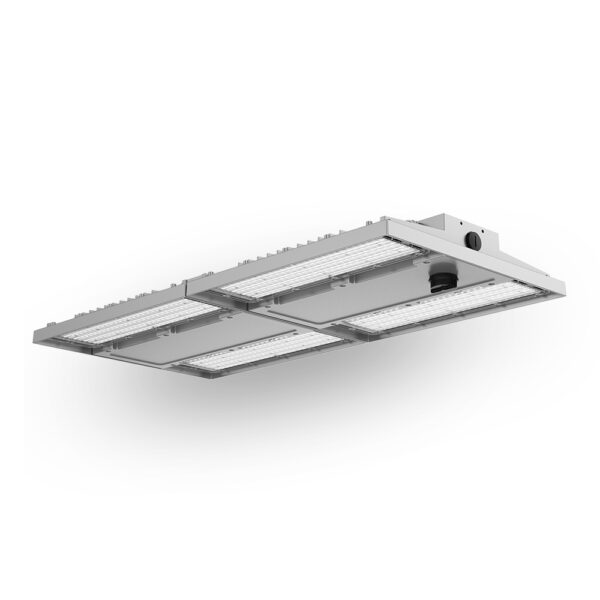

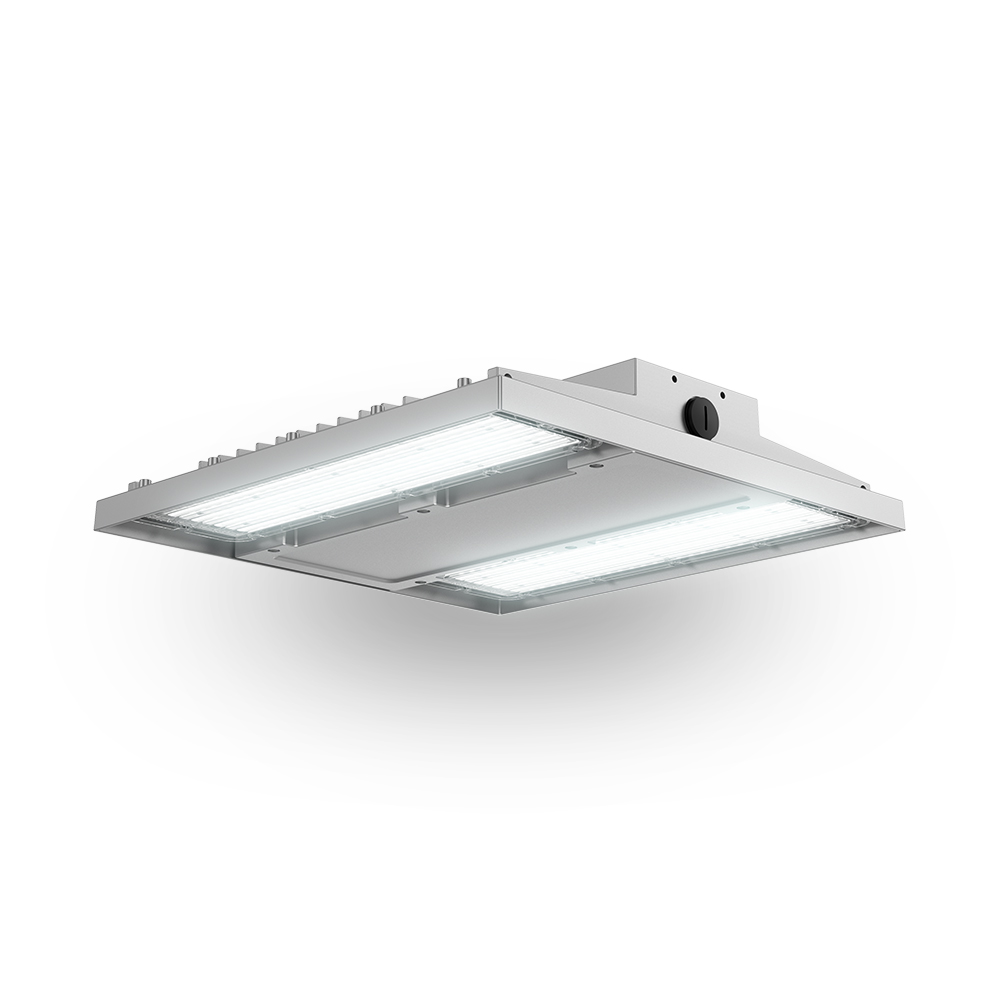

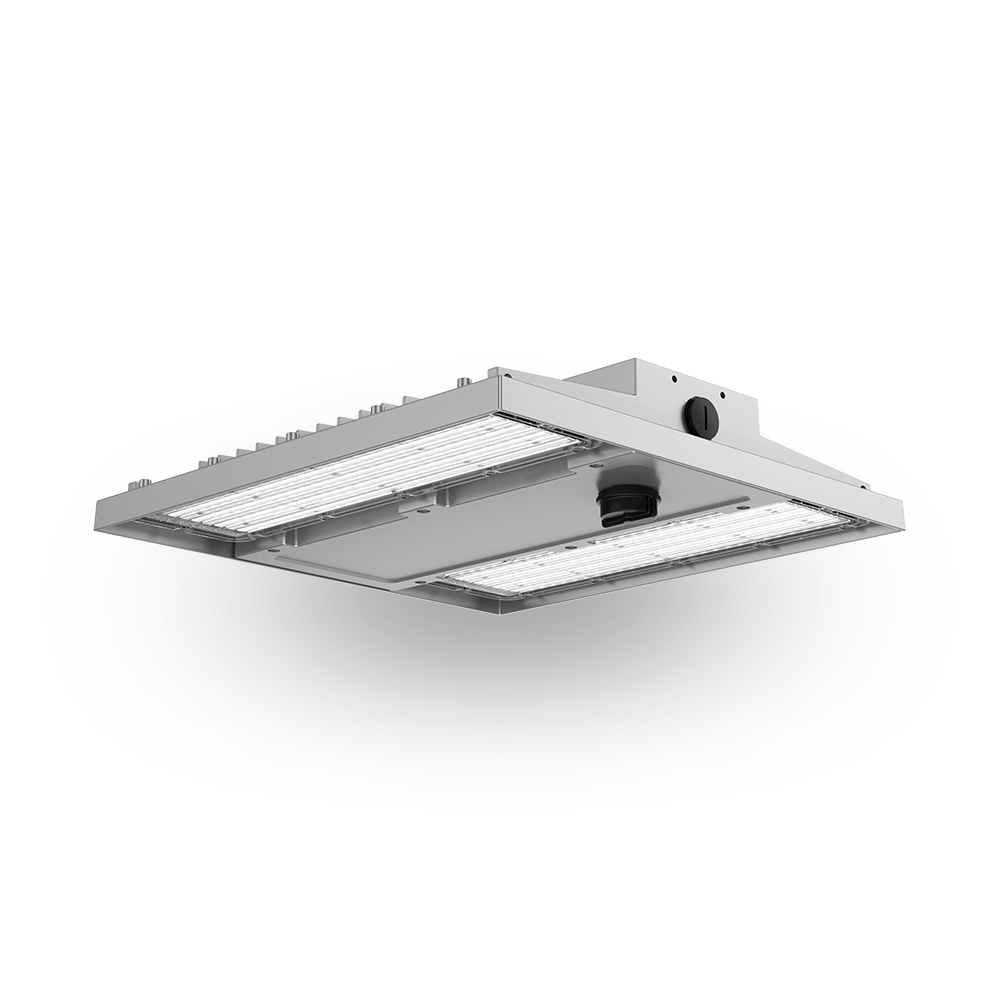

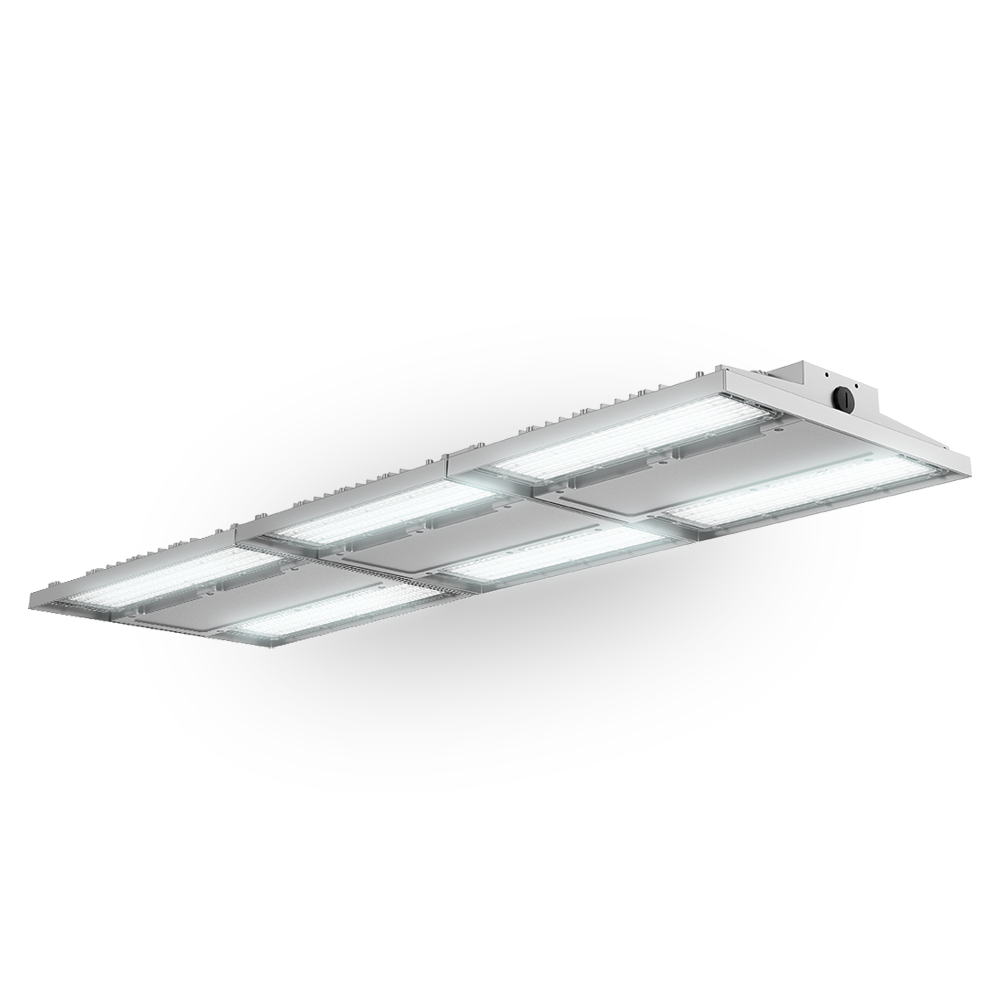

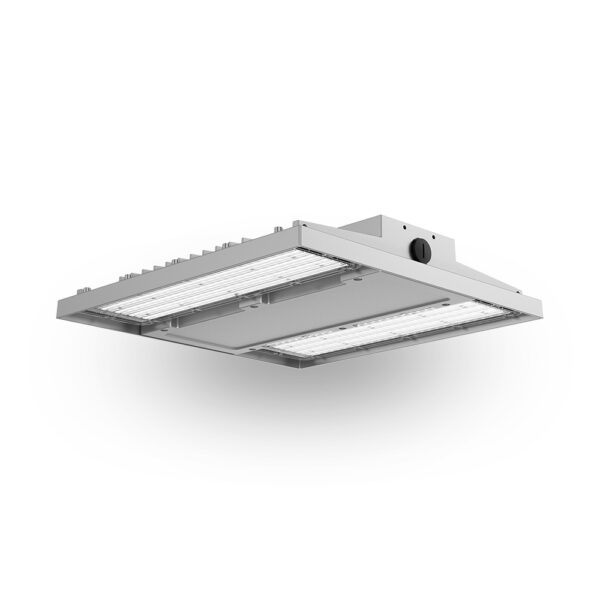

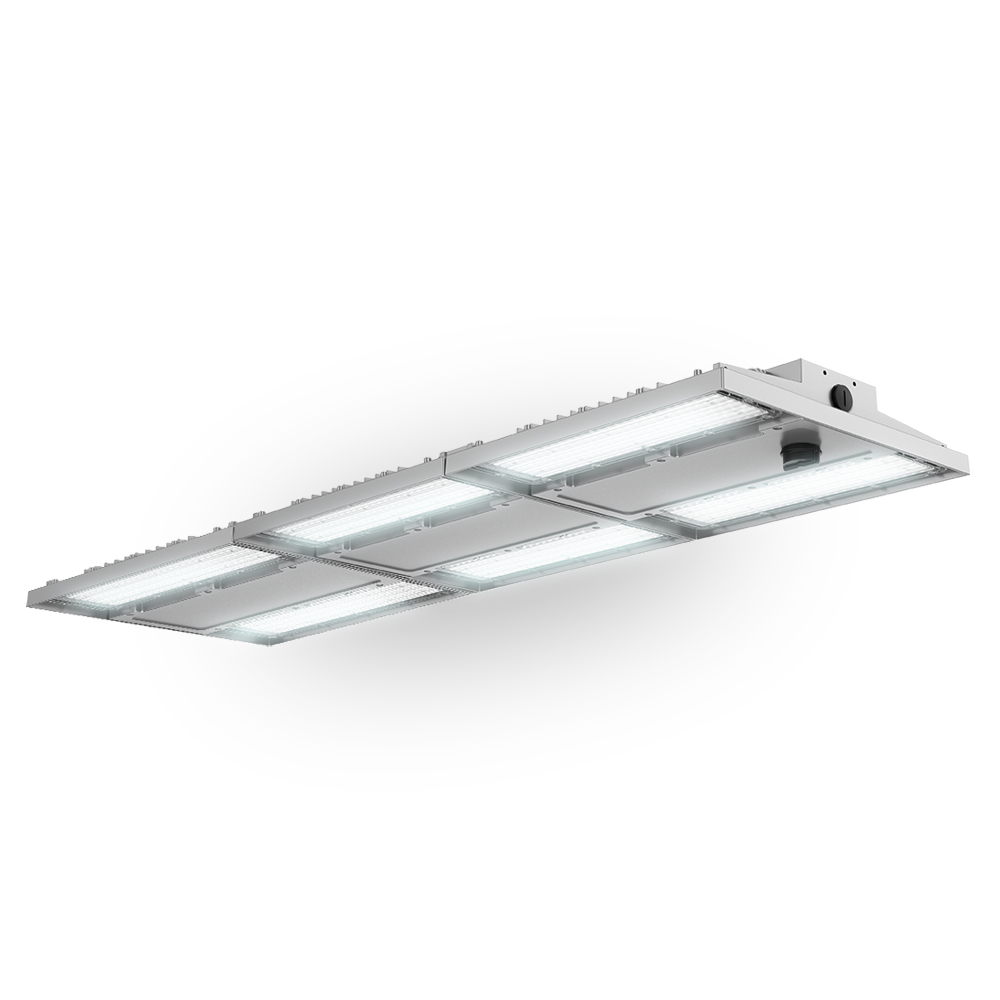

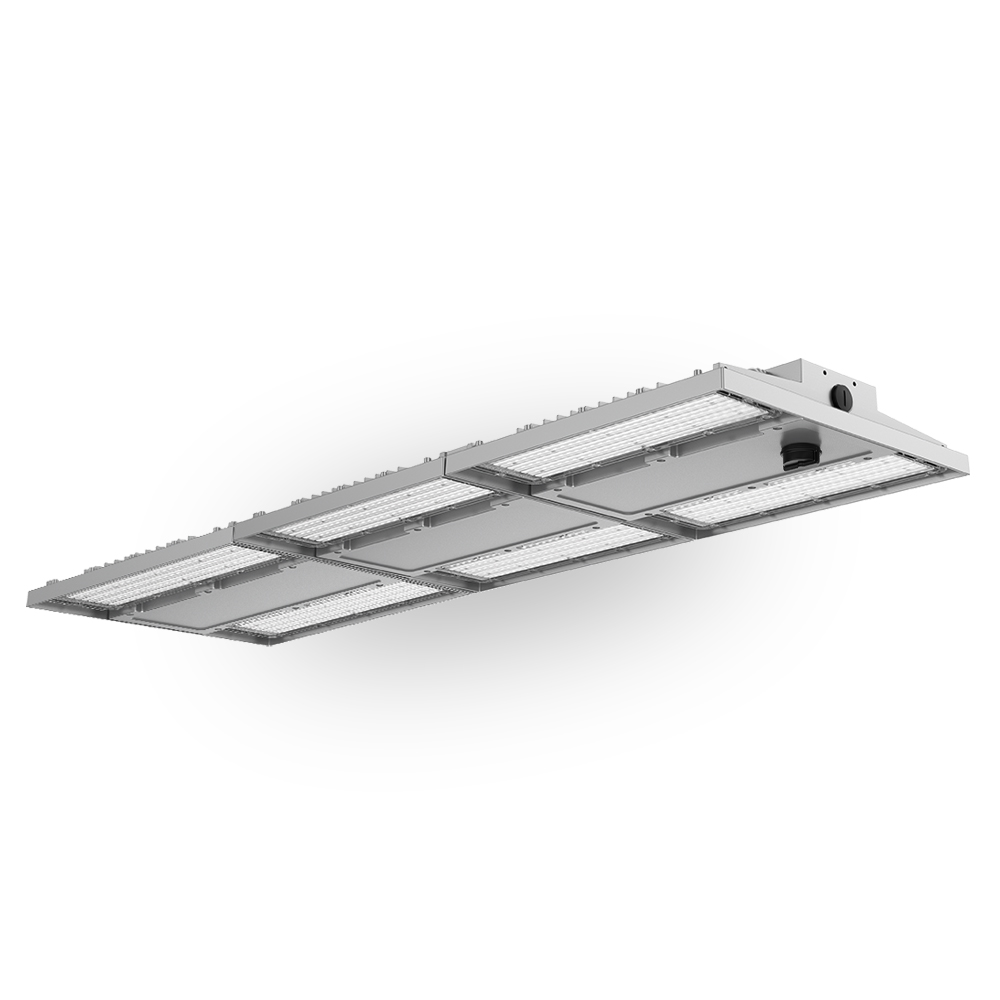

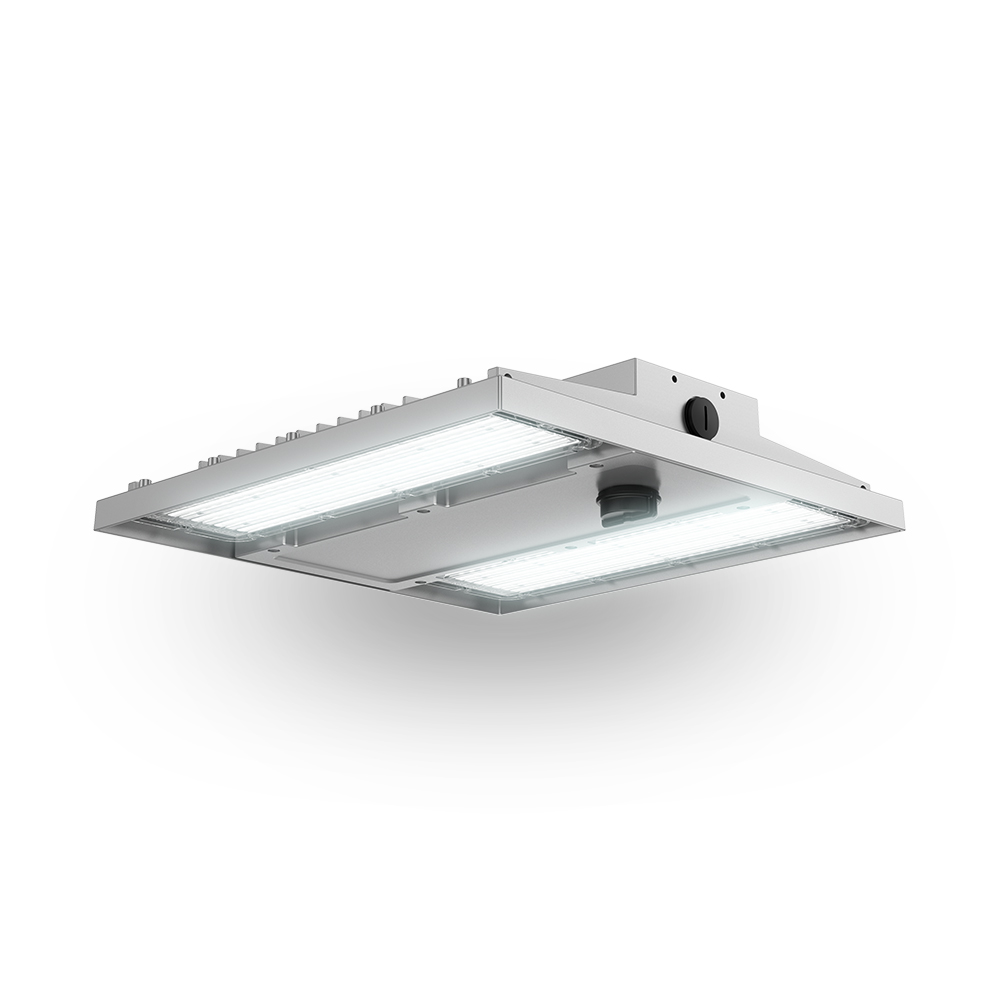

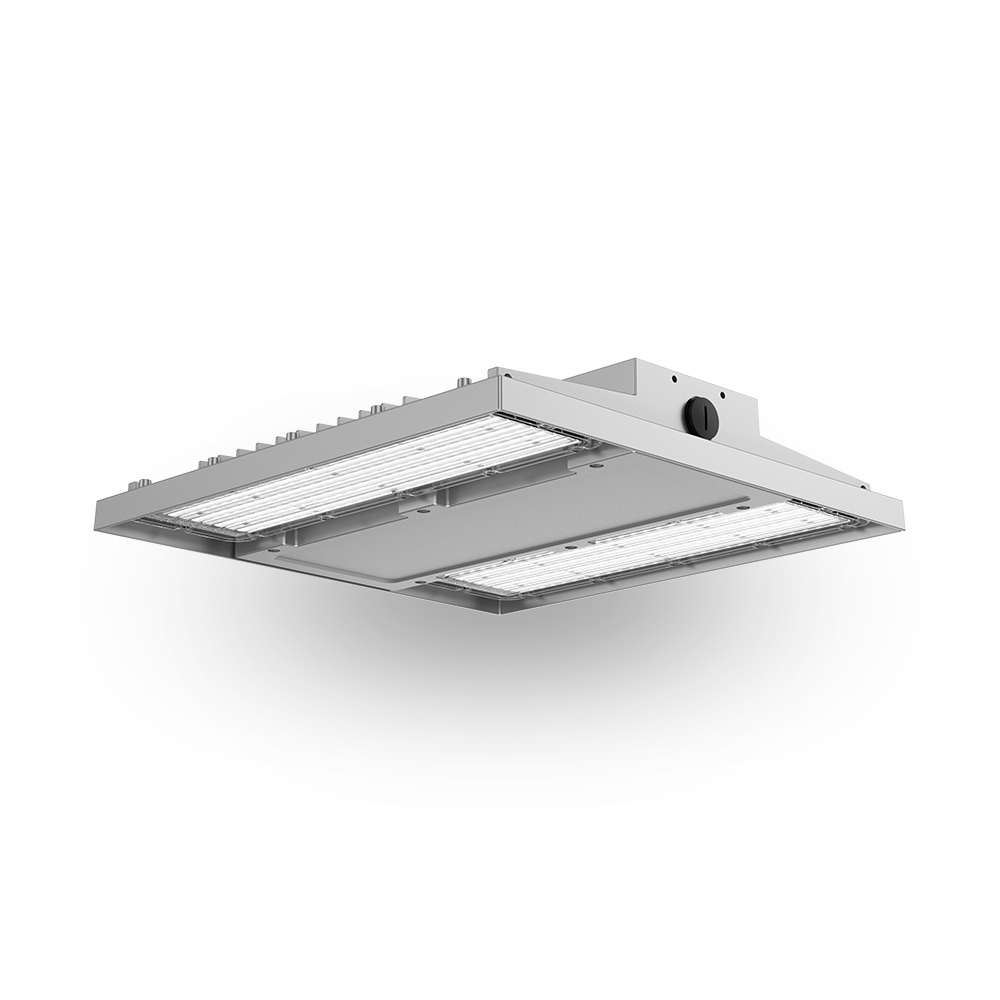

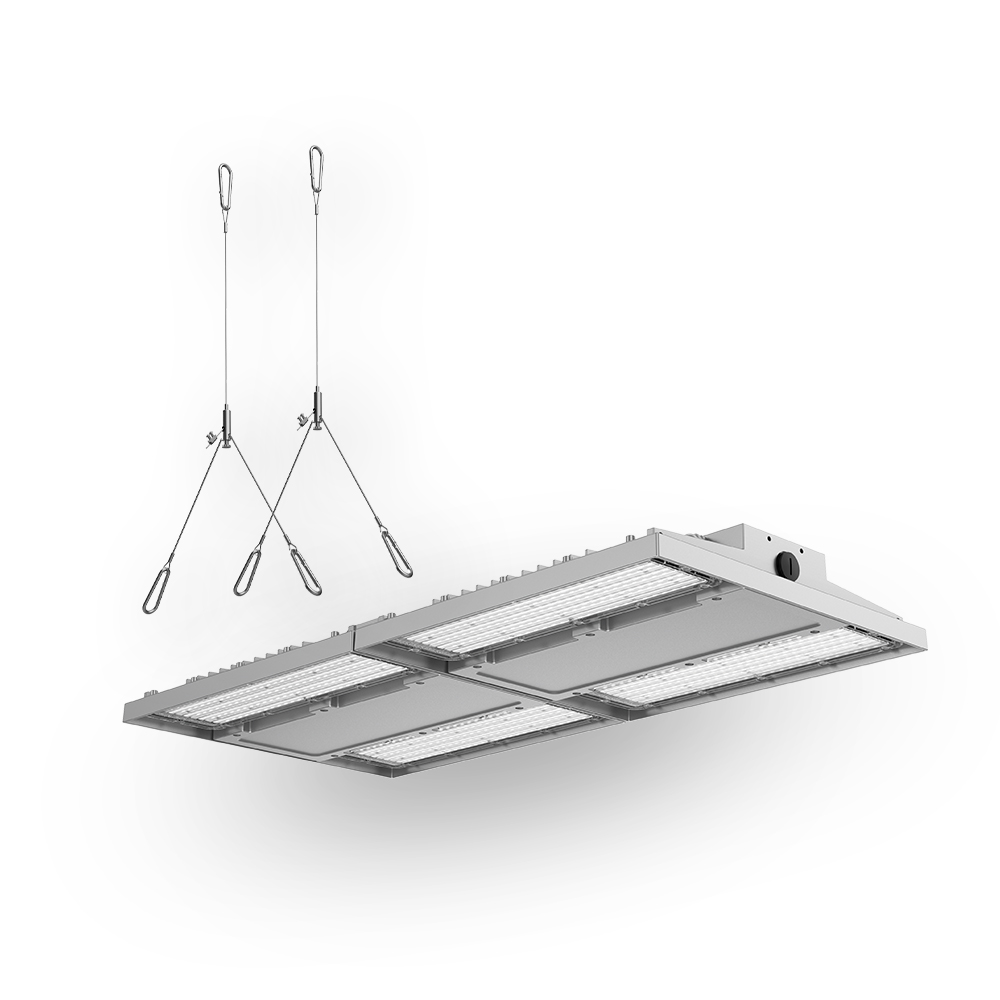

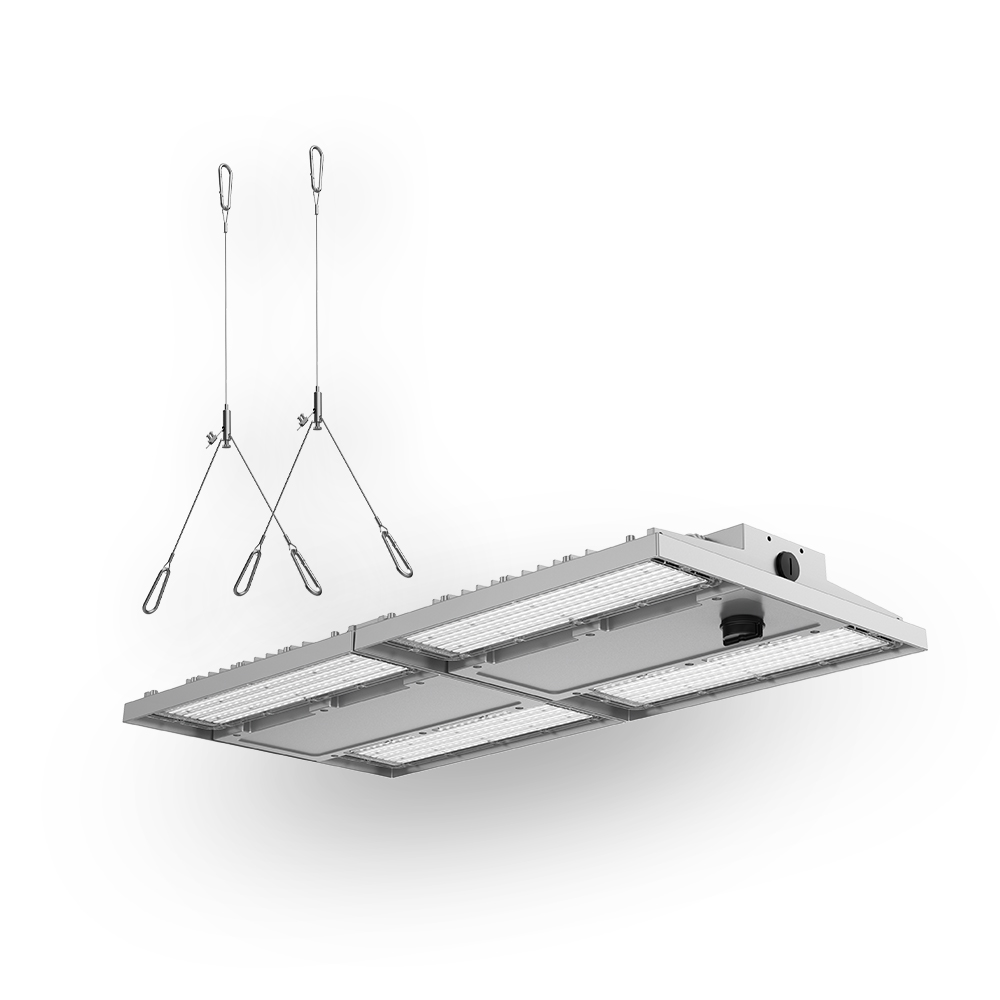

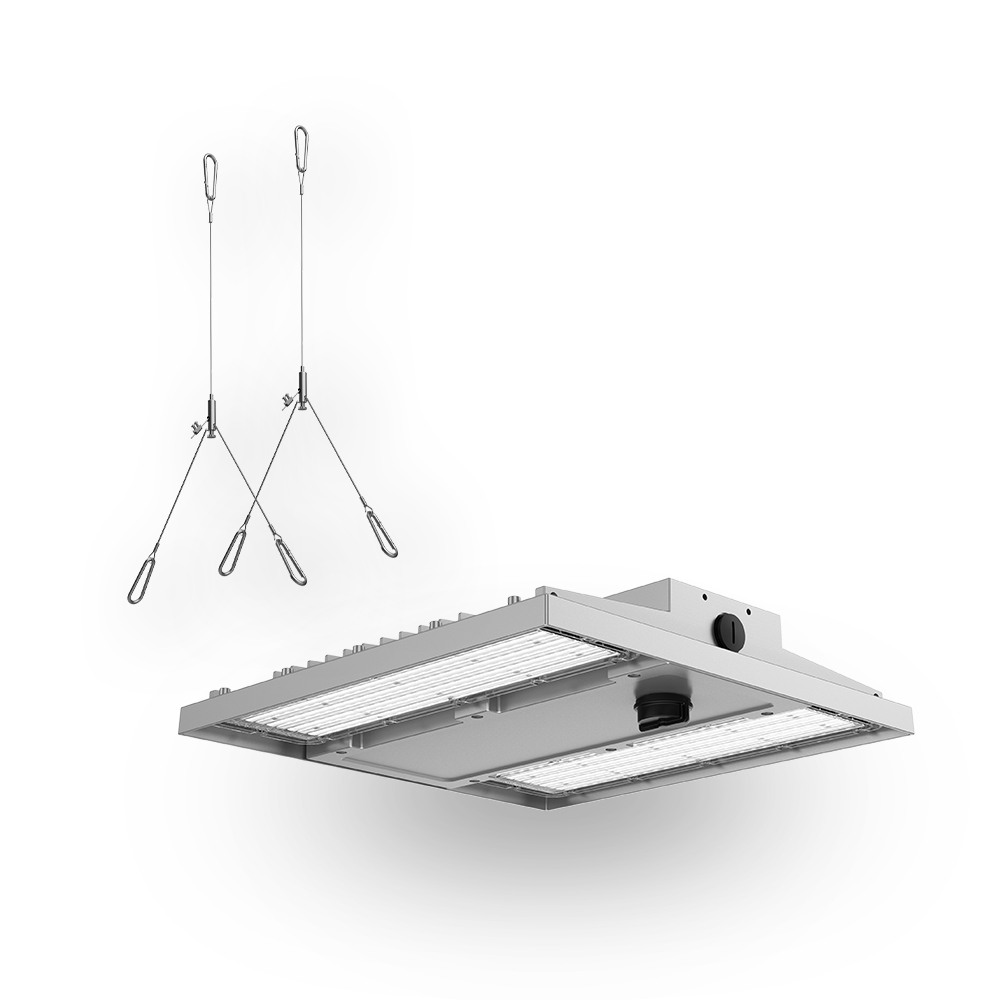

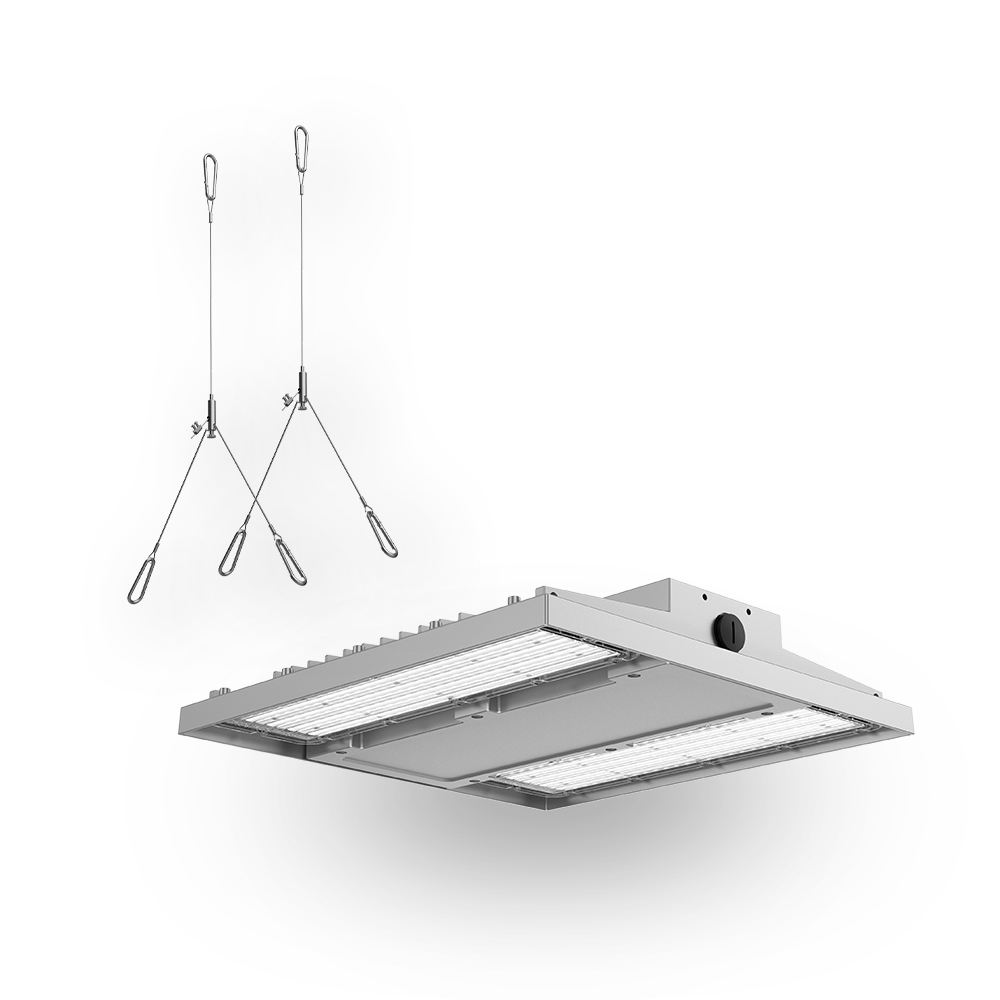

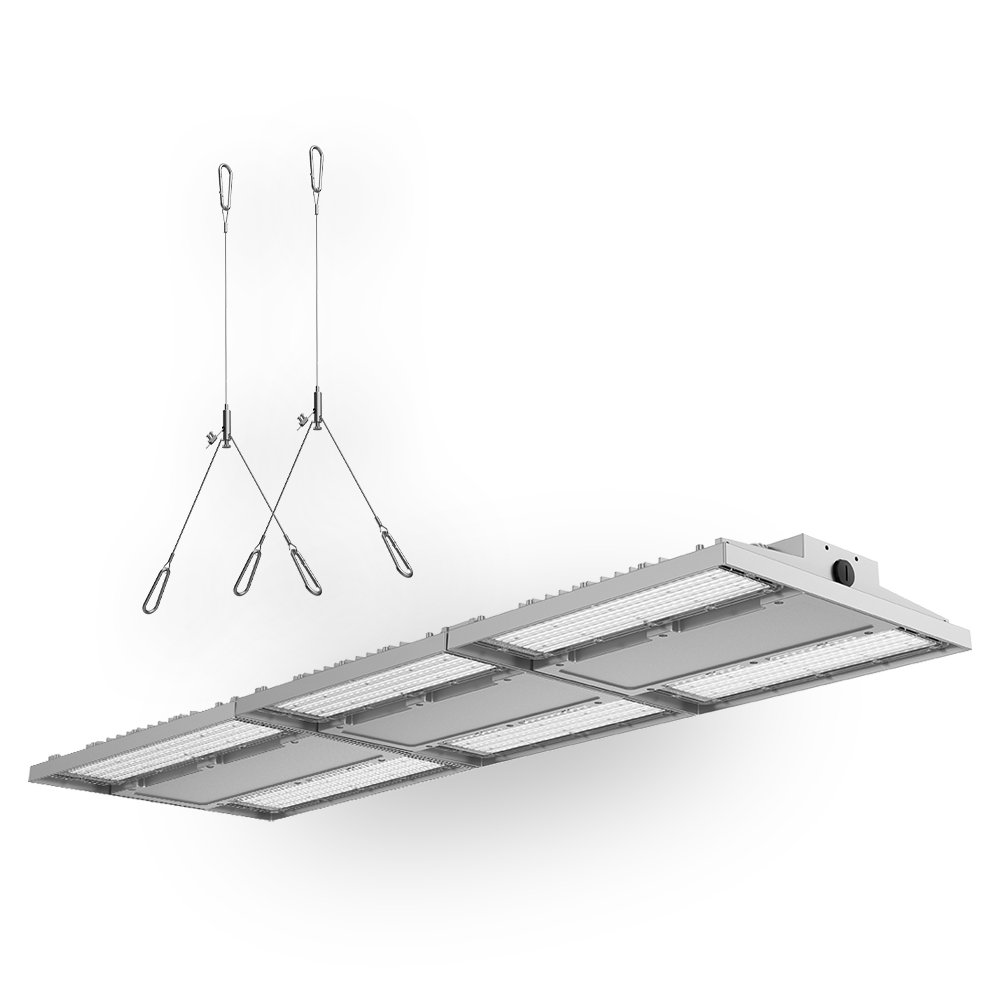

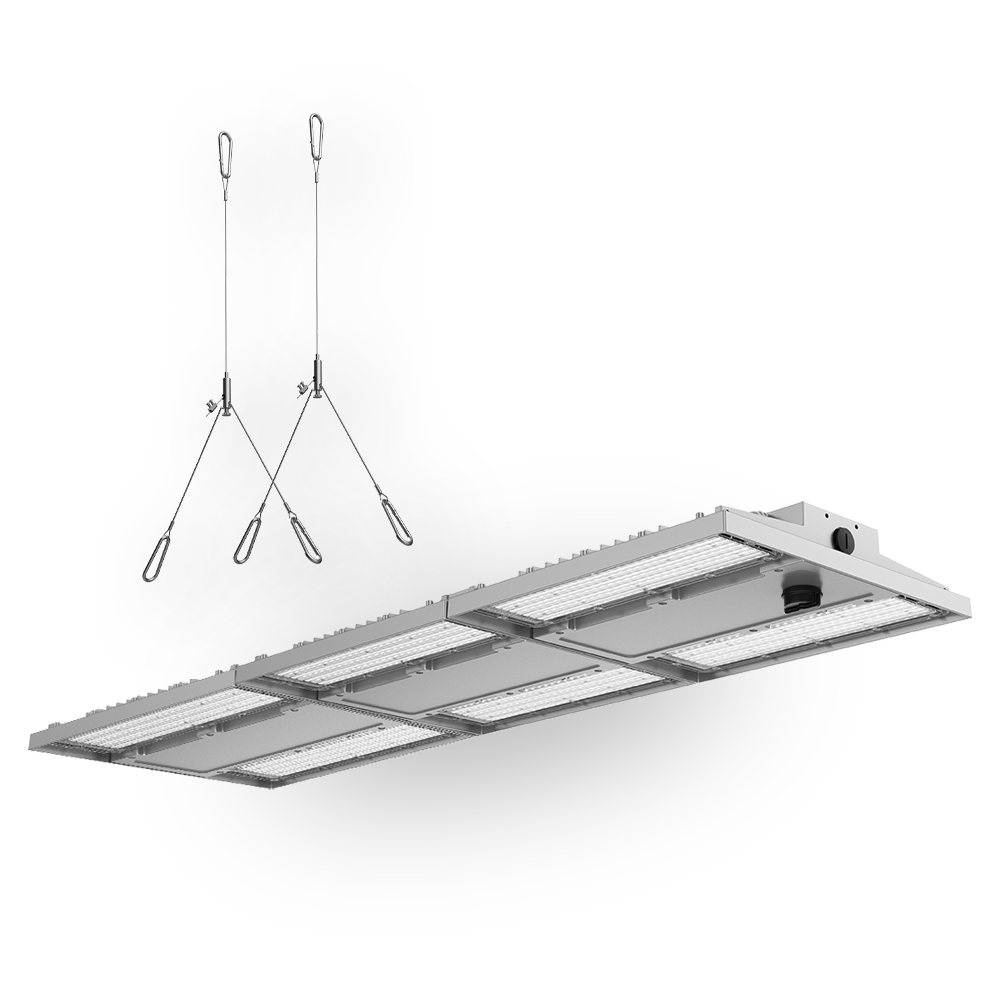

| Installation Type | Suspended |
Electrical
| Working Temp Range | -30 to 50 °C |
|---|---|
| Input Frequency | 50 Hz |
| Power Factor | 0.95 |
| Inrush Current | |
| EV-PLANAR-PRO-200W-30105D-50K EV-PLANAR-PRO-200W-60105D-50K | 110 A |
| EV-PLANAR-PRO-150W-30105D-50K EV-PLANAR-PRO-150W-60105D-50K | 125 A |
| EV-PLANAR-PRO-400W-30105D-50K EV-PLANAR-PRO-400W-60105D-50K | 150 A |
| EV-PLANAR-PRO-300W-30105D-50K-DA | 300 A |
| Inrush Duration | |
| EV-PLANAR-PRO-150W-30105D-50K EV-PLANAR-PRO-150W-60105D-50K | 200 uS |
| EV-PLANAR-PRO-300W-30105D-50K-DA EV-PLANAR-PRO-400W-30105D-50K EV-PLANAR-PRO-400W-60105D-50K | 300 uS |
| EV-PLANAR-PRO-200W-30105D-50K EV-PLANAR-PRO-200W-60105D-50K | 350 uS |
| Maximum Wattage | |
| EV-PLANAR-PRO-150W-30105D-50K EV-PLANAR-PRO-150W-60105D-50K | 150 W |
| EV-PLANAR-PRO-200W-30105D-50K EV-PLANAR-PRO-200W-60105D-50K | 200 W |
| EV-PLANAR-PRO-300W-30105D-50K-DA | 300 W |
| EV-PLANAR-PRO-400W-30105D-50K EV-PLANAR-PRO-400W-60105D-50K | 400 W |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Input Current | |
| EV-PLANAR-PRO-200W-60105D-50K | 0.85 A |
| EV-PLANAR-PRO-150W-30105D-50K | 1.9 A |
| EV-PLANAR-PRO-200W-30105D-50K | 2.4 A |
| EV-PLANAR-PRO-400W-30105D-50K EV-PLANAR-PRO-400W-60105D-50K | 2.8 A |
| EV-PLANAR-PRO-300W-30105D-50K-DA | 3.8 A |
| Surge Protection L-N | 6kV |
| Surge Protection L/N-PE | 10kV |
| Earth Leakage | <0.75 mA |
| Standby Power | 0.5 W |
| Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge. | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| CCT Configuration | Single |
| Macadam Steps (SDCM) |
|
| Beam Angle | |
| EV-PLANAR-PRO-150W-30105D-50K EV-PLANAR-PRO-200W-30105D-50K EV-PLANAR-PRO-300W-30105D-50K-DA EV-PLANAR-PRO-400W-30105D-50K | 30x105 ° |
| EV-PLANAR-PRO-150W-60105D-50K EV-PLANAR-PRO-200W-60105D-50K EV-PLANAR-PRO-400W-60105D-50K | 60x105 ° |
LED Lifetime
| LED Lifetime | >60000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Ektor does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
| TM-21 Test Hours | 10000 hrs |
Colour temperature
| Luminaire Lumens | |
|---|---|
| EV-PLANAR-PRO-150W-30105D-50K EV-PLANAR-PRO-150W-60105D-50K | 25500 lm |
| EV-PLANAR-PRO-200W-30105D-50K EV-PLANAR-PRO-200W-60105D-50K | 34000 lm |
| EV-PLANAR-PRO-300W-30105D-50K-DA | 51000 lm |
| EV-PLANAR-PRO-400W-30105D-50K | 69100 lm |
| EV-PLANAR-PRO-400W-60105D-50K | 70250 lm |
| All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire. | |
| CCT | 5000 K |
Driver
| Driver Type | |
|---|---|
| EV-PLANAR-PRO-150W-30105D-50K EV-PLANAR-PRO-150W-60105D-50K EV-PLANAR-PRO-200W-30105D-50K EV-PLANAR-PRO-200W-60105D-50K EV-PLANAR-PRO-400W-30105D-50K EV-PLANAR-PRO-400W-60105D-50K | 1-10V dimmable |
| EV-PLANAR-PRO-300W-30105D-50K-DA | DALI DT6 LED Driver |
| DALI DT6 ~ Includes DALI-2 Driver with full support for DT6 allowing flicker free dimming with compliant DALI-2 Application controllers. | |
| Driver Included | Yes |
| Dimmable | Yes |
| Flex & Plug or Lead Length | 1500 mm |
| Wiring Type | Re-wireable Flex & Plug (3 pin) |
| Driver Mode | Constant Current |
Compliance
| Daily Use | 20 hrs |
|---|---|
| The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally. | |
| Standards |
|
Warranty
| Warranty | |
|---|---|
| EV-PLANAR-PRO-150W-30105D-50K EV-PLANAR-PRO-150W-60105D-50K EV-PLANAR-PRO-200W-30105D-50K EV-PLANAR-PRO-200W-60105D-50K EV-PLANAR-PRO-400W-30105D-50K EV-PLANAR-PRO-400W-60105D-50K | 5 Year Warranty, First 2 Years Onsite |
| EV-PLANAR-PRO-300W-30105D-50K-DA | 8 Year Warranty, RTB |
| The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page. | |
| Warranty Operating Hours | 30000 hrs |
| This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first). | |
