Razor Pendant

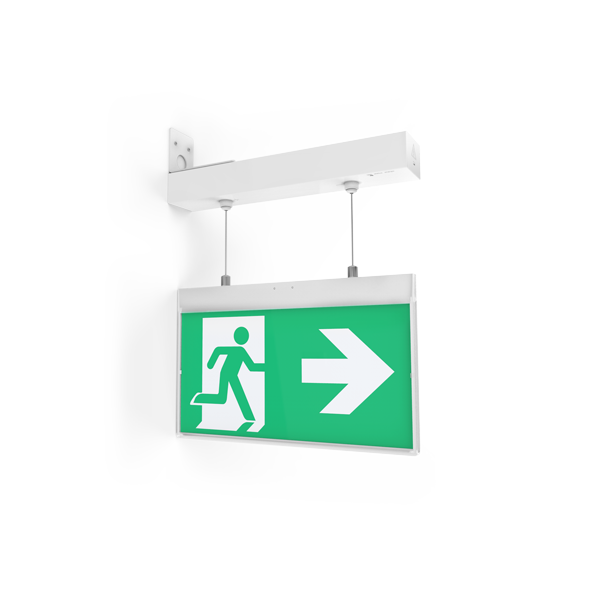

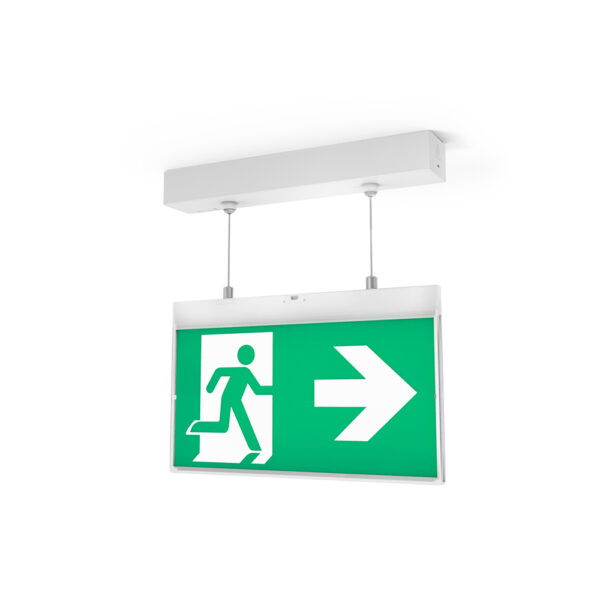

Razor Surface Pendant Emergency Exit, 24m

  • Single and double-sided decals
  • Pendant exit sign supplied with 3m cable
  • Exit sign is powered from pendant cable (no extra wiring)
  • High quality lithium battery (LiFePO4) and smart charger
  • Fully compliant (AS/NZS 2293)

Selected Models

  • 8 years design life at max. ambient temperature
  • Wireless driver (IEC62386-104) with DT1
  • 6 years RTB warranty for commercial use
  • 6 years design life at max. ambient temperature
  • Single Point Unit (SPU)
  • 12 years design life at max. ambient temperature
  • 8 years RTB warranty for commercial use
  • Supports DALI-2 wired emergency testing
  • Supports Ektor Lynk wireless emergency testing
  • SafeTest – automated self-testing (AS2293/IEC62034)
SKU: Razor Pendant Category:

Mechanical

IP RatingIP20
AdjustabilityFixed
Fitting ColourWhite
Body MaterialPolycarbonate
Diffuser MaterialPMMA
Installation TypeSuspended

Electrical

Working Temp Range0 to 40 °C
Input Frequency50 Hz
Maximum Wattage
EV-RAZOR-SP-CORE-24M2.6 W
EV-RAZOR-SP-ADV-24M-LK
EV-RAZOR-SP-ONE-24M		2.9 W
Input voltage
EV-RAZOR-SP-ONE-24M220-240VAC
EV-RAZOR-SP-ADV-24M-LK
EV-RAZOR-SP-CORE-24M		230Vac
Standby Power
EV-RAZOR-SP-ADV-24M-LK
EV-RAZOR-SP-ONE-24M		2.2 W
EV-RAZOR-SP-CORE-24M2.3 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.

Driver

Driver Type
EV-RAZOR-SP-CORE-24MFixed output
EV-RAZOR-SP-ONE-24MLynk Wireless or DALI-2 with DT1
EV-RAZOR-SP-ADV-24M-LKWireless (IEC62386-104) with DT1
Driver IncludedYes
Integrated DriverYes
DimmableNo
Wiring Type
EV-RAZOR-SP-CORE-24MRe-wireable terminal block (2 pin)
EV-RAZOR-SP-ADV-24M-LK
EV-RAZOR-SP-ONE-24M		Re-wireable terminal block (5 pin)

Emergency (EM suffix)

Emergency ModeMaintained
Emergency Classification
EV-RAZOR-SP-ADV-24M-LK
EV-RAZOR-SP-CORE-24M		C0:D5, C90:E3.2
EV-RAZOR-SP-ONE-24MD5
Emergency Output Power
EV-RAZOR-SP-ADV-24M-LK
EV-RAZOR-SP-ONE-24M		650 mW
EV-RAZOR-SP-CORE-24M1000 mW
Replacement Battery Code13972
Emergency Duration90 mins
Viewing Distance24 m
Decal Size300 x 150 mm
Emergency Light Source Life
EV-RAZOR-SP-ADV-24M-LK
EV-RAZOR-SP-ONE-24M		22Y/0M
EV-RAZOR-SP-CORE-24M72Y/07M
AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign.
Emergency ControlLynk Wireless or DALI-2

Compliance

Product Design Life
EV-RAZOR-SP-ONE-24M12 years
EV-RAZOR-SP-CORE-24M6 years
EV-RAZOR-SP-ADV-24M-LK8 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty
EV-RAZOR-SP-CORE-24M5 RTB (Total 5 Years)
EV-RAZOR-SP-ADV-24M-LK6 RTB (Total 6 Years)
EV-RAZOR-SP-ONE-24M8 RTB (Total 8 Years)
Product Height190 mm
Product Length315 mm
Product Width12 mm
EV/RAZOR/SP/ADV/24M/LK
EV/RAZOR/SP/CORE/24M
EV/RAZOR/SP/ONE/24M
Wireless (IEC62386-104) with DT1
Order codeItem codeDescriptionAvailability

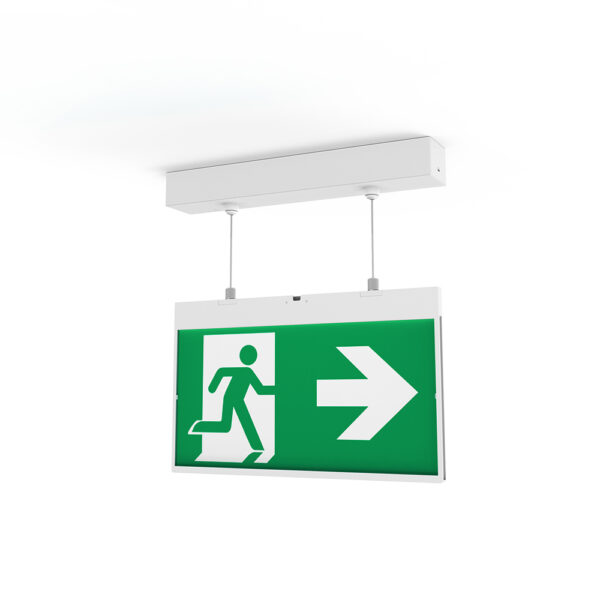

14111EV-RAZOR-SP-ADV-24M-LKEktor Lynk Slimblade Advanced Surface Pendant Exit light 24M - W/Wireless
Fixed output
Order codeItem codeDescriptionAvailability
15353EV-RAZOR-SP-CORE-24MEktor Slimblade Core Surface Pendant Exit light 24M
Lynk Wireless or DALI-2 with DT1
Order codeItem codeDescriptionAvailability
14879EV-RAZOR-SP-ONE-24MEktor One - 24m Razor surface-pendant emergency exit - W/Wireless and DALI
Order codeItem codeDescriptionAvailability
02987EV-RAZOR-24M-DPRazor 24M decal pack to suit SKU# 02686 & BOXIT-SLIM SKU #15053
15196EV-RAZOR-SM-CORE-WBWall Bracket to suit EV-RAZOR-SM-CORE - White
