Razor SM

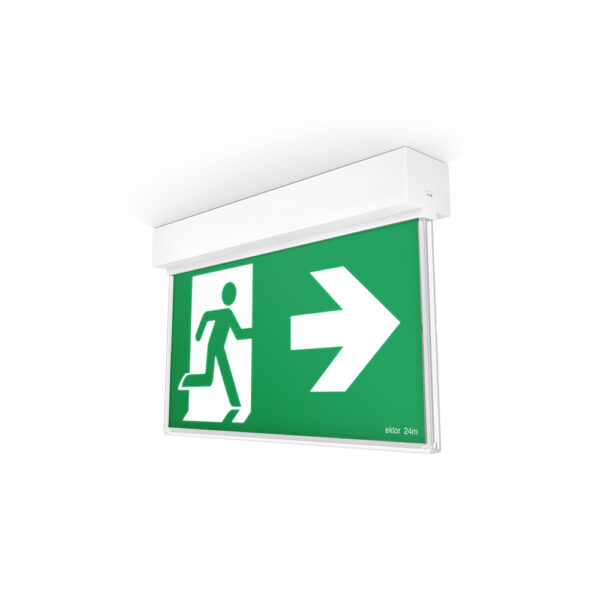

Razor Advanced Surface Mounted Emergency Exit, 24m

  • Single and double-sided decals
  • Long life electronics
  • High quality lithium battery (LiFePO4) and smart charger

Selected Models

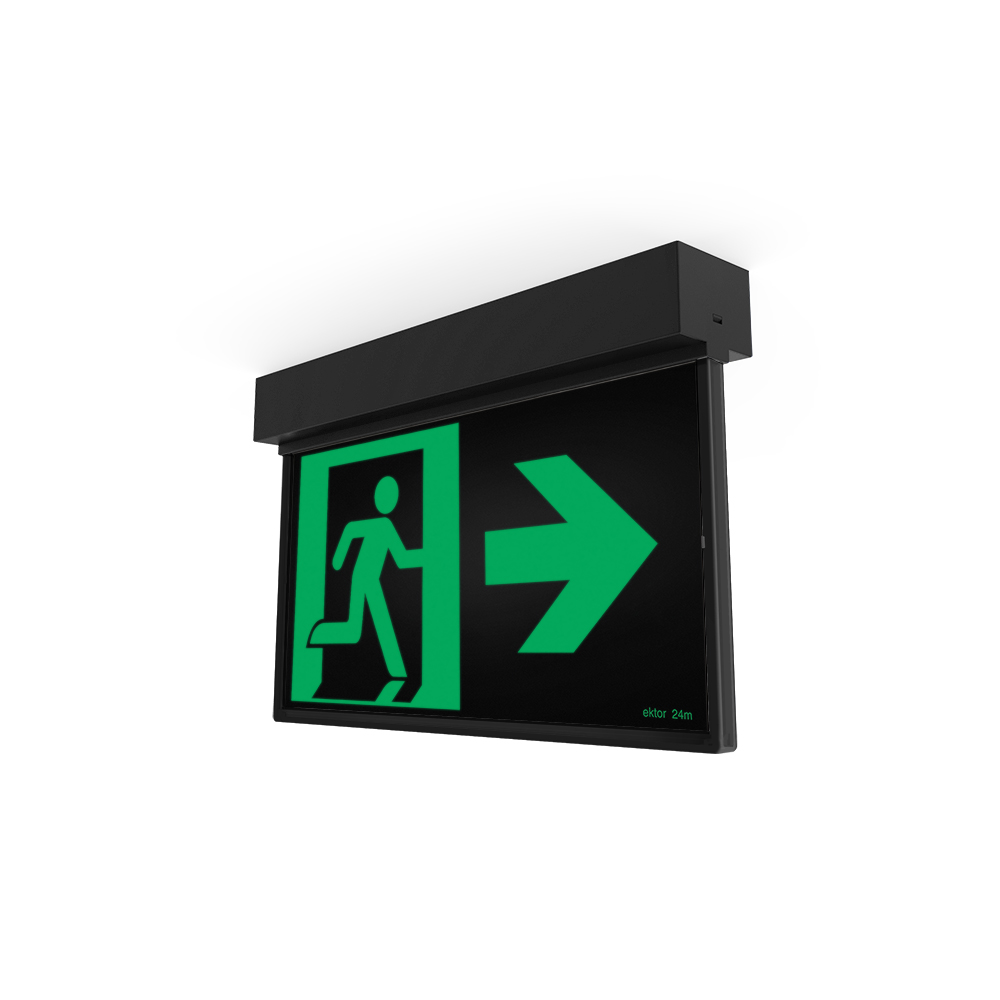

  • Available in low illumination area black model
  • Replaceable easy fit, quick-release decals
  • LED light source
  • 8 years design life at max. ambient temperature
  • Standalone (SPU)
  • Supports DALI-2 wired emergency testing
  • 6 years design life at max. ambient temperature
  • SafeTest – automated self-testing (AS2293/IEC62034)
  • 12 years design life at max. ambient temperature
  • Supports Ektor Lynk wireless emergency testing
  • Soft-start charger to reduce building load
  • Fast emergency switch-over (<0.5s) for high-task areas
  • Ceiling, wall, and chain mounting (chain not included)
  • Self test (AS2293/IEC62034)
  • Fully compliant (AS/NZS 2293)
  • DALI (IEC 62386-202) DT1
  • Ektor wired monitored system
  • Supplied with green/white decal pack for general lighting areas and black/green decal pack for low-illumination areas
  • Wireless meshing system
  • IEC 62386 over IEC 62386-104
  • Wireless monitoring via Ektor Lynk
SKU: Razor SM Category:

Mechanical

IP RatingIP20
Fitting Colour
EV-RAZOR-SM-ADV-24M-B-DA
EV-RAZOR-SM-CORE-24M-B
EV-RAZOR-SM-ONE-24M-B
EV-RAZOR-SM-PRO-24M-B-DA
EV-RAZOR-SM-PRO-24M-B-LK		Black
EV-RAZOR-SM-ADV-24M-DA
EV-RAZOR-SM-CORE-24M
EV-RAZOR-SM-ONE-24M
EV-RAZOR-SM-PRO-24M-DA
EV-RAZOR-SM-PRO-24M-LK		White
Body MaterialPolycarbonate
Diffuser MaterialPMMA
Installation TypeSurface mount

Electrical

Working Temp Range0 to 40 °C
Input Frequency50 Hz
Maximum Wattage
EV-RAZOR-SM-ADV-24M-B-DA
EV-RAZOR-SM-PRO-24M-B-DA
EV-RAZOR-SM-PRO-24M-B-LK		2 W
EV-RAZOR-SM-ADV-24M-DA
EV-RAZOR-SM-CORE-24M
EV-RAZOR-SM-CORE-24M-B
EV-RAZOR-SM-ONE-24M
EV-RAZOR-SM-ONE-24M-B
EV-RAZOR-SM-PRO-24M-DA
EV-RAZOR-SM-PRO-24M-LK		2.6 W
Input voltage
EV-RAZOR-SM-ONE-24M
EV-RAZOR-SM-ONE-24M-B		220-240VAC
EV-RAZOR-SM-ADV-24M-B-DA
EV-RAZOR-SM-ADV-24M-DA
EV-RAZOR-SM-CORE-24M
EV-RAZOR-SM-CORE-24M-B
EV-RAZOR-SM-PRO-24M-B-DA
EV-RAZOR-SM-PRO-24M-B-LK
EV-RAZOR-SM-PRO-24M-DA
EV-RAZOR-SM-PRO-24M-LK		230Vac
Standby Power
EV-RAZOR-SM-ADV-24M-B-DA
EV-RAZOR-SM-CORE-24M-B
EV-RAZOR-SM-PRO-24M-B-DA
EV-RAZOR-SM-PRO-24M-B-LK		1.7 W
EV-RAZOR-SM-ADV-24M-DA
EV-RAZOR-SM-CORE-24M
EV-RAZOR-SM-ONE-24M
EV-RAZOR-SM-ONE-24M-B
EV-RAZOR-SM-PRO-24M-DA
EV-RAZOR-SM-PRO-24M-LK		1.9 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.

Driver

Driver Type
EV-RAZOR-SM-ADV-24M-B-DA
EV-RAZOR-SM-ADV-24M-DA
EV-RAZOR-SM-PRO-24M-B-DA
EV-RAZOR-SM-PRO-24M-DA		DALI DT1 Emergency
EV-RAZOR-SM-CORE-24M
EV-RAZOR-SM-CORE-24M-B		Fixed output
EV-RAZOR-SM-ONE-24M
EV-RAZOR-SM-ONE-24M-B		Lynk Wireless or DALI-2 with DT1
EV-RAZOR-SM-PRO-24M-B-LK
EV-RAZOR-SM-PRO-24M-LK		Wireless (IEC62386-104) with DT1
Driver IncludedYes
Integrated DriverYes
Wiring Type
EV-RAZOR-SM-CORE-24M
EV-RAZOR-SM-CORE-24M-B
EV-RAZOR-SM-PRO-24M-B-LK
EV-RAZOR-SM-PRO-24M-LK		Re-wireable terminal block (2 pin)
EV-RAZOR-SM-ADV-24M-B-DA
EV-RAZOR-SM-ADV-24M-DA
EV-RAZOR-SM-ONE-24M
EV-RAZOR-SM-ONE-24M-B
EV-RAZOR-SM-PRO-24M-B-DA
EV-RAZOR-SM-PRO-24M-DA		Re-wireable terminal block (5 pin)
DimmableNo

Emergency (EM suffix)

Emergency ModeMaintained
Emergency Output Power
EV-RAZOR-SM-ADV-24M-B-DA
EV-RAZOR-SM-PRO-24M-B-DA
EV-RAZOR-SM-PRO-24M-B-LK		350 mW
EV-RAZOR-SM-ADV-24M-DA
EV-RAZOR-SM-ONE-24M
EV-RAZOR-SM-ONE-24M-B
EV-RAZOR-SM-PRO-24M-DA
EV-RAZOR-SM-PRO-24M-LK		650 mW
EV-RAZOR-SM-CORE-24M
EV-RAZOR-SM-CORE-24M-B		1000 mW
Replacement Battery Code
EV-RAZOR-SM-PRO-24M-B-DA
EV-RAZOR-SM-PRO-24M-B-LK
EV-RAZOR-SM-PRO-24M-DA
EV-RAZOR-SM-PRO-24M-LK		13845
EV-RAZOR-SM-ADV-24M-B-DA
EV-RAZOR-SM-ADV-24M-DA
EV-RAZOR-SM-CORE-24M
EV-RAZOR-SM-CORE-24M-B
EV-RAZOR-SM-ONE-24M
EV-RAZOR-SM-ONE-24M-B		13972
Emergency Duration90 mins
Viewing Distance24 m
Decal Size300 x 150 mm
Emergency Control
EV-RAZOR-SM-ADV-24M-B-DA
EV-RAZOR-SM-ADV-24M-DA
EV-RAZOR-SM-PRO-24M-B-DA
EV-RAZOR-SM-PRO-24M-DA		DALI Monitored (DT1)
EV-RAZOR-SM-CORE-24M
EV-RAZOR-SM-CORE-24M-B		Ektor SafeTest (Automatic self-test)
EV-RAZOR-SM-PRO-24M-B-LK
EV-RAZOR-SM-PRO-24M-LK		IEC62386-104 (Wireless DT1)
EV-RAZOR-SM-ONE-24M
EV-RAZOR-SM-ONE-24M-B		Lynk Wireless or DALI-2
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
IEC62386-104 ~ Supports wireless test and monitoring over IEC62386-104 using IEC62386-202.
Emergency Light Source Life
EV-RAZOR-SM-ADV-24M-DA
EV-RAZOR-SM-ONE-24M
EV-RAZOR-SM-ONE-24M-B
EV-RAZOR-SM-PRO-24M-DA
EV-RAZOR-SM-PRO-24M-LK		34Y/04M
EV-RAZOR-SM-ADV-24M-B-DA
EV-RAZOR-SM-PRO-24M-B-DA
EV-RAZOR-SM-PRO-24M-B-LK		51Y/01M
EV-RAZOR-SM-CORE-24M-B6Y/04M
EV-RAZOR-SM-CORE-24M78Y/03M
AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign.
Emergency Classification
EV-RAZOR-SM-ADV-24M-DA
EV-RAZOR-SM-PRO-24M-DA
EV-RAZOR-SM-PRO-24M-LK		C0:E6.3, C90:E10
EV-RAZOR-SM-CORE-24MC0:E6.3, C90:E20
EV-RAZOR-SM-ONE-24M
EV-RAZOR-SM-ONE-24M-B		E6.3

Compliance

Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Warranty
EV-RAZOR-SM-CORE-24M
EV-RAZOR-SM-CORE-24M-B		5 Year Warranty, First 2 Years Onsite
EV-RAZOR-SM-ADV-24M-B-DA
EV-RAZOR-SM-ADV-24M-DA		5 Year Warranty, RTB
EV-RAZOR-SM-ONE-24M
EV-RAZOR-SM-ONE-24M-B
EV-RAZOR-SM-PRO-24M-B-DA
EV-RAZOR-SM-PRO-24M-B-LK
EV-RAZOR-SM-PRO-24M-DA
EV-RAZOR-SM-PRO-24M-LK		8 Year Warranty, RTB
The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page.
Commercial Use Warranty
EV-RAZOR-SM-ADV-24M-B-DA
EV-RAZOR-SM-ADV-24M-DA		6 RTB (Total 6 Years)
EV-RAZOR-SM-PRO-24M-B-DA
EV-RAZOR-SM-PRO-24M-B-LK
EV-RAZOR-SM-PRO-24M-DA
EV-RAZOR-SM-PRO-24M-LK		8 RTB (Total 8 Years)
Product Height203 mm
Product Length315 mm
Product Width52 mm
EV/RAZOR/SM/ADV/24M
EV/RAZOR/SM/CORE/24M
EV/RAZOR/SM/ONE/24M
DALI DT1 Emergency
Order codeItem codeDescriptionAvailability
12277EV-RAZOR-SM-ADV-24M-B-DARazor Surface Mount Advanced Emergency Exit - 24M - Black - DALI
12275EV-RAZOR-SM-ADV-24M-DARazor Surface Mount Advanced Emergency Exit - 24M - DALI
12296EV-RAZOR-SM-PRO-24M-B-DARazor Pro Surface Mount Emergency Exit - 24M - Black
12295EV-RAZOR-SM-PRO-24M-DARazor Pro Surface Mount Emergency Exit - 24M
Fixed output
Order codeItem codeDescriptionAvailability
12123EV-RAZOR-SM-CORE-24MEktor Razor Core Surface Mount Emergency Exit - 24M
12124EV-RAZOR-SM-CORE-24M-BEktor Razor Core Surface Mount Emergency Exit - 24M - Black
Lynk Wireless or DALI-2 with DT1
Order codeItem codeDescriptionAvailability
14877EV-RAZOR-SM-ONE-24MEktor One - Razor Surface Mount Edgelit Emergency Exit - 24M - W/Wireless and DALI
14878EV-RAZOR-SM-ONE-24M-BEktor One - Razor Surface Mount Edgelit Emergency Exit - 24M - Black - W/Wireless and DALI
Wireless (IEC62386-104) with DT1
Order codeItem codeDescriptionAvailability
12298EV-RAZOR-SM-PRO-24M-B-LKEktor Lynk Razor Surface Mount Emergency Exit - 24M - Black - Pro W/Wireless
12297EV-RAZOR-SM-PRO-24M-LKEktor Lynk Razor Surface Mount Emergency Exit - Pro W/Wireless
Order codeItem codeDescriptionAvailability
02987EV-RAZOR-24M-DPRazor 24M decal pack to suit SKU# 02686 & BOXIT-SLIM SKU #15053
02988EV-RAZOR-24M-DP-BRazor 24m decal pack - Black to suit 02687
15196EV-RAZOR-SM-CORE-WBWall Bracket to suit EV-RAZOR-SM-CORE - White
