Mechanical
| IP Rating | IP44 Front Face Only |
|---|---|
| IC Rating | IC-4 |
| IC-4 rating has been conducted at the products maximum working Temperature Range (C) in line with Australian standards. This provides the required safety when covered with insulation and used in Australian Environments. | |
| Fitting Colour | |

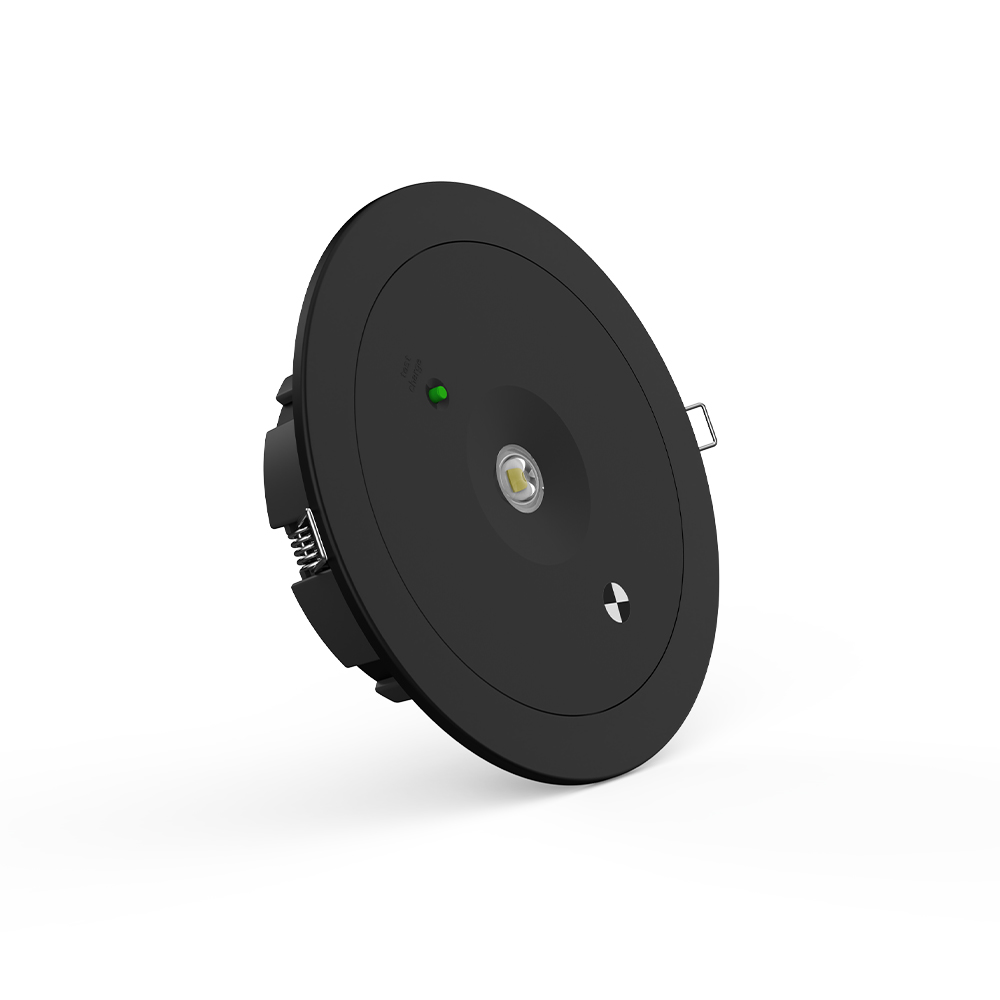

| EV-SLIMFIRE-ADV-B-LK EV-SLIMFIRE-CORE-B EV-SLIMFIRE-ONE-B | Black |

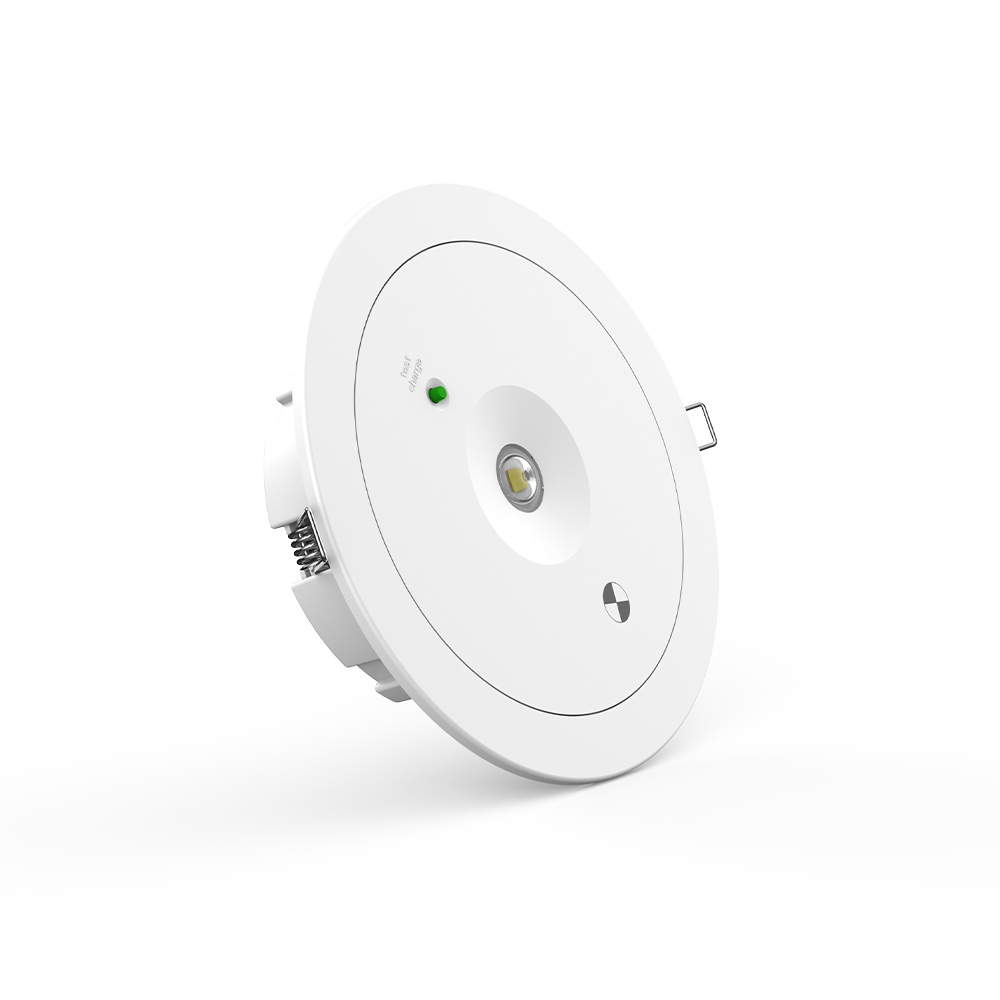

| EV-SLIMFIRE-ADV-LK EV-SLIMFIRE-CORE EV-SLIMFIRE-ONE | White |
| Body Material | Polycarbonate |
| Installation Type | Recessed |
Electrical
| Working Temp Range | 0 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Maximum Wattage | |
| EV-SLIMFIRE-CORE EV-SLIMFIRE-CORE-B | 1 W |
| EV-SLIMFIRE-ADV-B-LK EV-SLIMFIRE-ADV-LK EV-SLIMFIRE-ONE EV-SLIMFIRE-ONE-B | 1.7 W |
| Input voltage | 230Vac |
| In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
| Standby Power | 0.5 W |
| Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge. | |
Driver
| Driver Type | |
|---|---|
| EV-SLIMFIRE-CORE EV-SLIMFIRE-CORE-B | Fixed output |
| EV-SLIMFIRE-ONE EV-SLIMFIRE-ONE-B | Lynk Wireless or DALI-2 with DT1 |
| EV-SLIMFIRE-ADV-B-LK EV-SLIMFIRE-ADV-LK | Wireless (IEC62386-104) with DT1 |
| Driver Included | Yes |
| Integrated Driver | Yes |
| Dimmable | No |
| Flex & Plug or Lead Length | 1200 mm |
| Wiring Type | |
| EV-SLIMFIRE-ONE EV-SLIMFIRE-ONE-B | Flex and Plug (2 pin) and Junction Box (4P) |
| EV-SLIMFIRE-ADV-B-LK EV-SLIMFIRE-ADV-LK EV-SLIMFIRE-CORE EV-SLIMFIRE-CORE-B | Non rewireable Flex & Plug |
| Junction Box (4p) ~ The rewireable 4 pole junction box allows for the easy wiring of soft wiring DALI-2 looms when used with soft-wiring systems. | |
Emergency (EM suffix)
| Emergency Mode | Non-Maintained |
|---|---|
| Emergency Classification | C0:D50, C90:D50 |
| Emergency Output Power | |
| EV-SLIMFIRE-ONE EV-SLIMFIRE-ONE-B | 1800 mW |
| EV-SLIMFIRE-ADV-B-LK EV-SLIMFIRE-ADV-LK EV-SLIMFIRE-CORE EV-SLIMFIRE-CORE-B | 2250 mW |
| Replacement Battery Code | |
| EV-SLIMFIRE-ADV-B-LK EV-SLIMFIRE-ADV-LK EV-SLIMFIRE-CORE EV-SLIMFIRE-CORE-B | 01308 |
| EV-SLIMFIRE-ONE EV-SLIMFIRE-ONE-B | 18096 |
| Emergency Duration | 90 mins |
| Emergency Lumen Output | |
| EV-SLIMFIRE-CORE EV-SLIMFIRE-CORE-B | 264 lm |
| EV-SLIMFIRE-ADV-B-LK EV-SLIMFIRE-ADV-LK EV-SLIMFIRE-ONE EV-SLIMFIRE-ONE-B | 275 lm |
| Emergency Control | |
| EV-SLIMFIRE-CORE EV-SLIMFIRE-CORE-B | Ektor SafeTest (Automatic self-test) |
| EV-SLIMFIRE-ADV-B-LK EV-SLIMFIRE-ADV-LK | IEC62386-104 (Wireless DT1) |
| EV-SLIMFIRE-ONE EV-SLIMFIRE-ONE-B | Lynk Wireless or DALI-2 |
| IEC62386-104 ~ Supports wireless test and monitoring over IEC62386-104 using IEC62386-202. | |
Compliance
| Standards |
|
|---|
Warranty
| Warranty | |
|---|---|
| EV-SLIMFIRE-CORE EV-SLIMFIRE-CORE-B | 5 Year Warranty, First 2 Years Onsite |
| EV-SLIMFIRE-ADV-B-LK EV-SLIMFIRE-ADV-LK | 5 Year Warranty, RTB |
| EV-SLIMFIRE-ONE EV-SLIMFIRE-ONE-B | 8 Year Warranty, RTB |
| The total warranty period is shown above. Where an on-site period is listed, the first years are covered on-site, with return-to-base coverage for the remainder. For full warranty details and claim instructions, please refer to our Warranty page. | |
| Commercial Use Warranty | 6 RTB (Total 6 Years) |
