Mechanical
| IP Rating | IP65 |
|---|---|
| IK Rating | IK08 |
| Fitting Colour | |

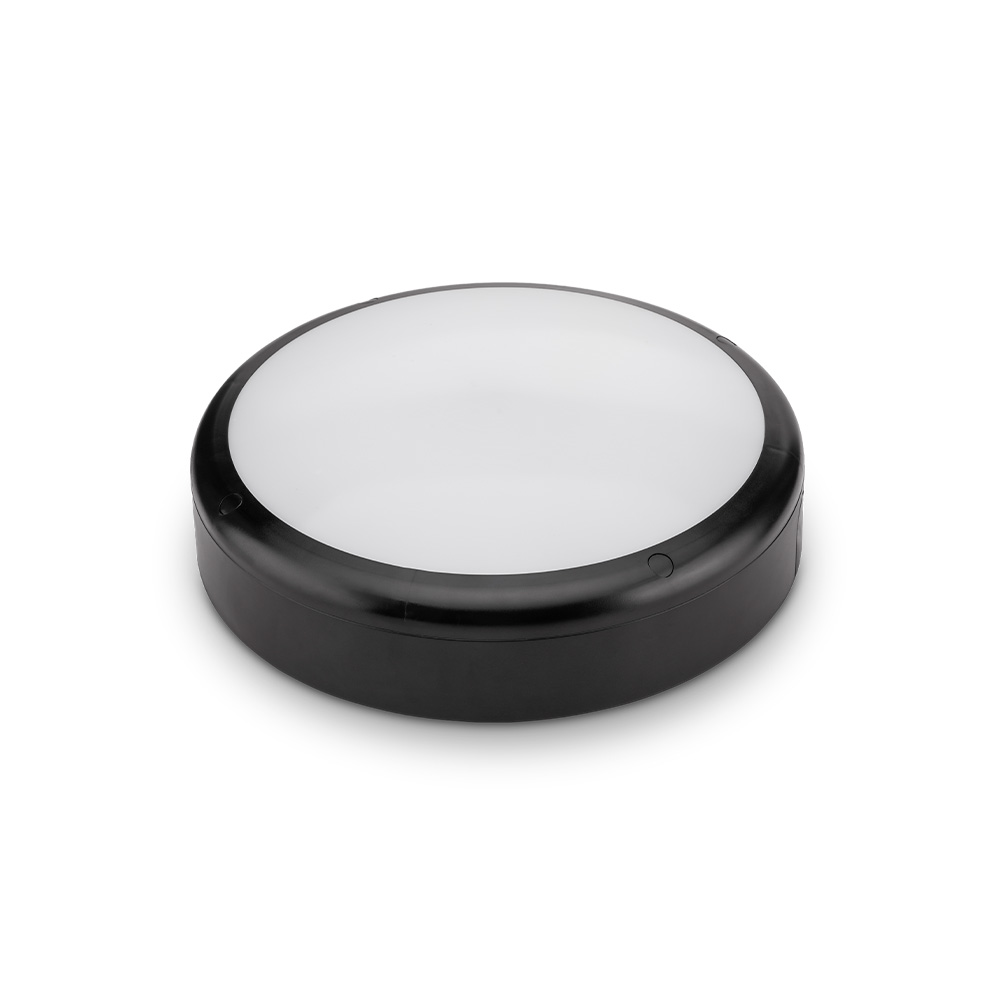

| EV-TOROS-B EV-TOROS-B-EM EV-TOROS-B-EM-S EV-TOROS-B-S | Black |

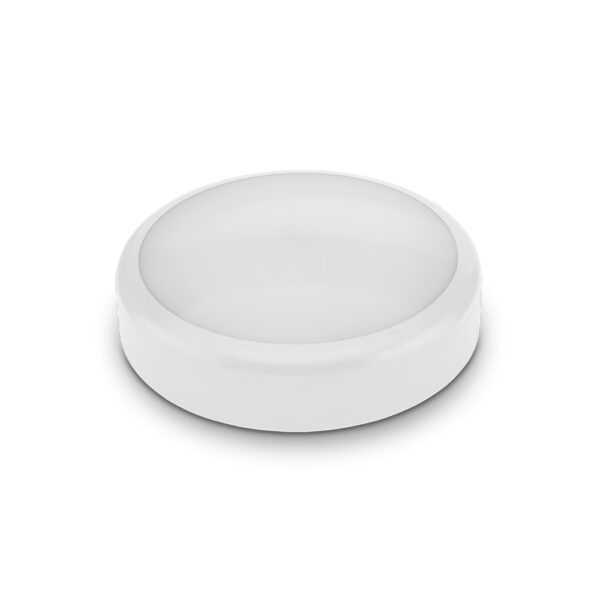

| EV-TOROS EV-TOROS-EM EV-TOROS-EM-S EV-TOROS-S | White |
| Body Material | Polycarbonate |
| Diffuser Material | Polycarbonate |
| Installation Type | Surface mount |
Electrical
| Working Temp Range | 0 to 40 °C |
|---|---|
| Input Frequency | 50 Hz |
| Power Factor | 0.93 |
| Maximum Wattage | |
| EV-TOROS EV-TOROS-B EV-TOROS-B-S EV-TOROS-S | 25 W |
| EV-TOROS-B-EM EV-TOROS-B-EM-S EV-TOROS-EM EV-TOROS-EM-S | 27 W |
| System Max Wattage | |
| EV-TOROS EV-TOROS-B EV-TOROS-B-S EV-TOROS-S | 25 W |
| EV-TOROS-B-EM EV-TOROS-B-EM-S EV-TOROS-EM EV-TOROS-EM-S | 27 W |
| Input voltage | 220-240V~ |
| Standby Power | 1.5 W |
| Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge. | |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| CCT Configuration | TRI-CCT |
LED Lifetime
| LED Lifetime | >120000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Ektor does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
Colour temperature
EV-TOROS
| |||||||||||||||||||||||||||||
EV-TOROS-B
| |||||||||||||||||||||||||||||
EV-TOROS-B-EM
| |||||||||||||||||||||||||||||
EV-TOROS-B-EM-S
| |||||||||||||||||||||||||||||
EV-TOROS-B-S
| |||||||||||||||||||||||||||||
EV-TOROS-EM
| |||||||||||||||||||||||||||||
EV-TOROS-EM-S
| |||||||||||||||||||||||||||||
EV-TOROS-S
| |||||||||||||||||||||||||||||
Driver
| Driver Type | Fixed output |
|---|---|
| Driver Included | Yes |
| Integrated Driver | No |
| Dimmable | No |
| Wiring Type | |
| EV-TOROS EV-TOROS-B EV-TOROS-B-S EV-TOROS-S | Re-wireable terminal block (3 pin) |
| EV-TOROS-B-EM EV-TOROS-B-EM-S EV-TOROS-EM EV-TOROS-EM-S | Re-wireable terminal block (4 pin) |
| Driver Mode | Constant Current |
Sensor (S suffix)
| Sensor Type | Microwave |
|---|---|
| Detection Range | 8 m |
| Adjustable Hold Time | Yes |
| Adjustable Standby Level | Yes |
| Detection Angle | 360 |
Emergency (EM suffix)
| Emergency Classification | C0:D40, C90:D40 |
|---|---|
| Emergency Output Power | 4300 mW |
| Replacement Battery Code | 53023 |
| Emergency Duration | 90 mins |
| Emergency Lumen Output | 400 lm |
| Emergency Control | Ektor SafeTest (Automatic self-test) |
Compliance
| Product Design Life | 8 |
|---|---|
| The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
| Standards |
|
Warranty
| Commercial Use Warranty | |
|---|---|
| EV-TOROS EV-TOROS-B EV-TOROS-B-S EV-TOROS-S | 5 RTB (Total 5 Years) |
| EV-TOROS-B-EM EV-TOROS-B-EM-S EV-TOROS-EM EV-TOROS-EM-S | 5 RTB General, 6 RTB Emergency |
