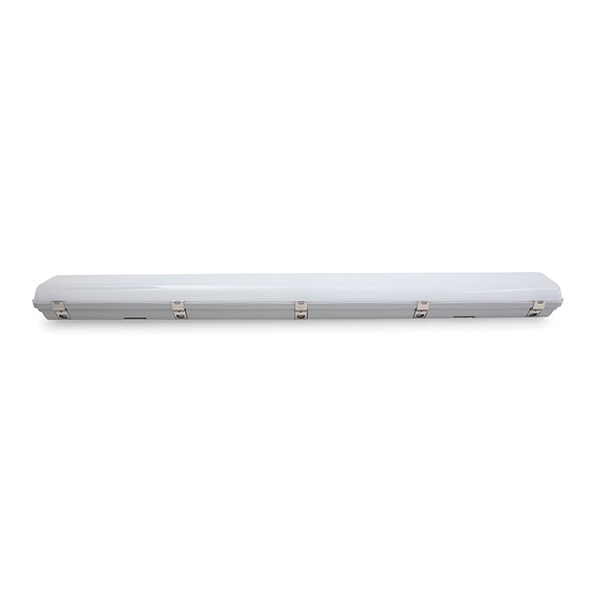

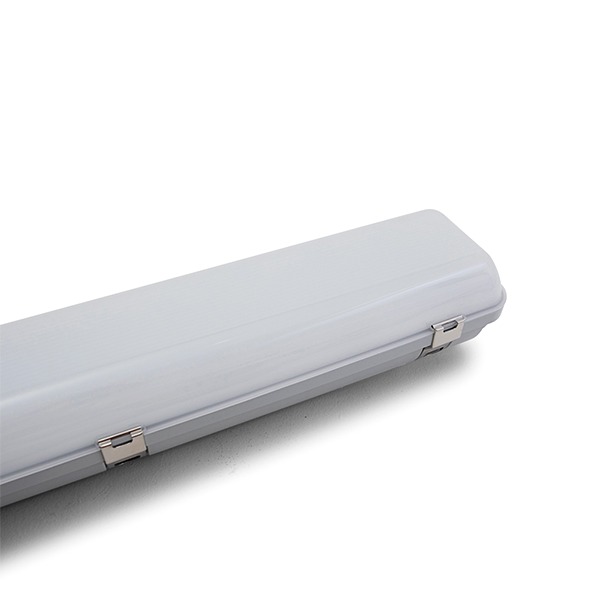

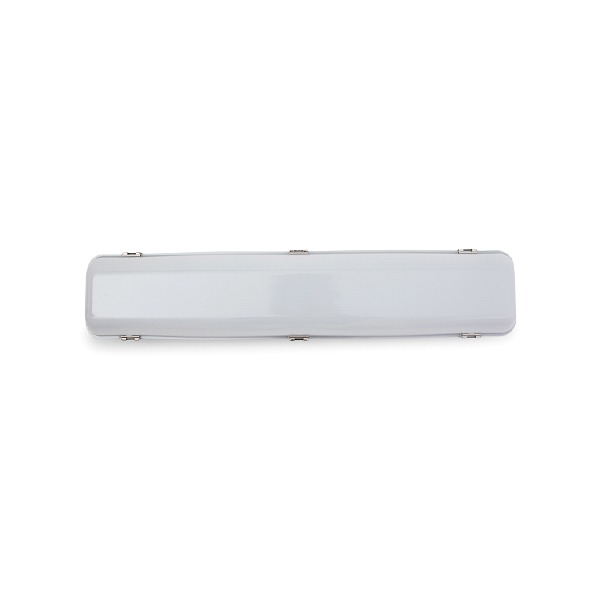

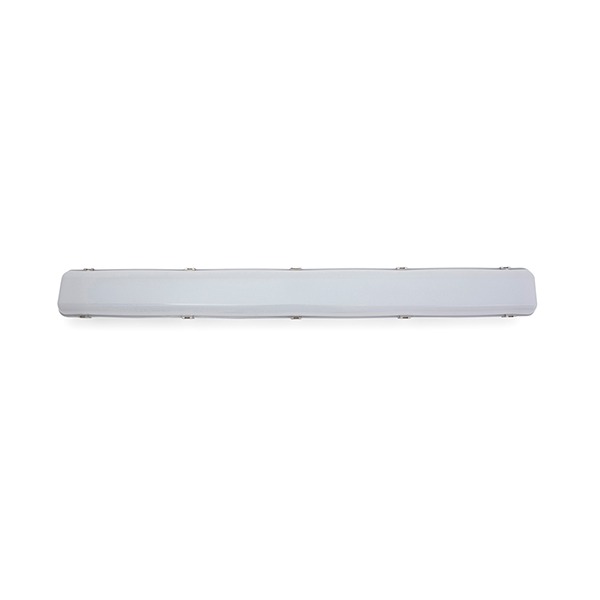

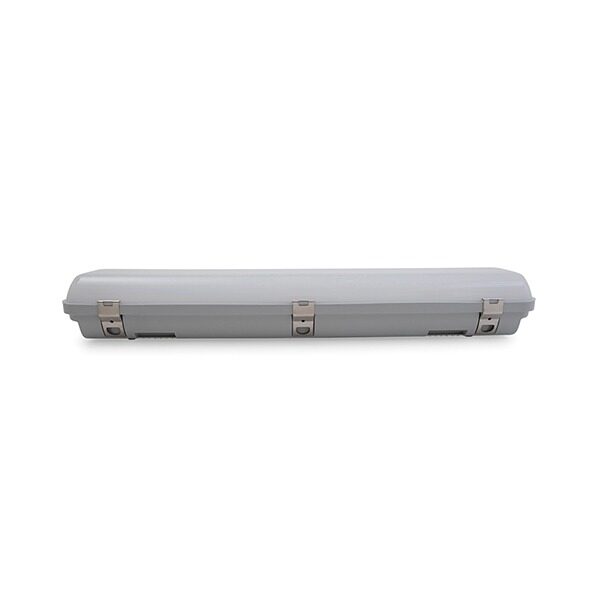

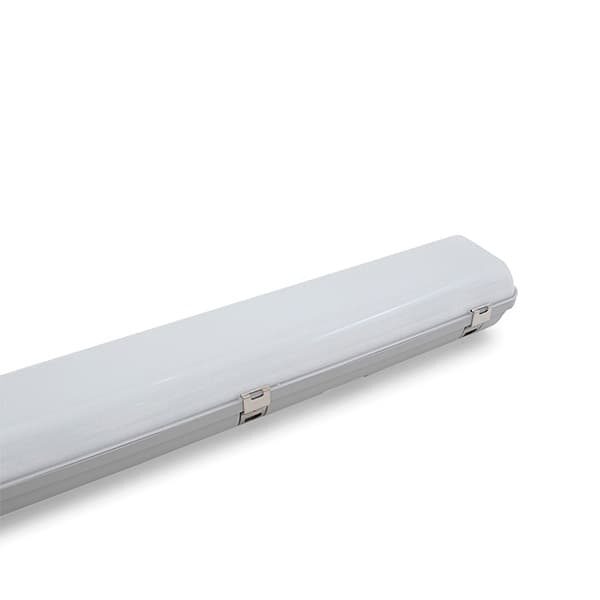

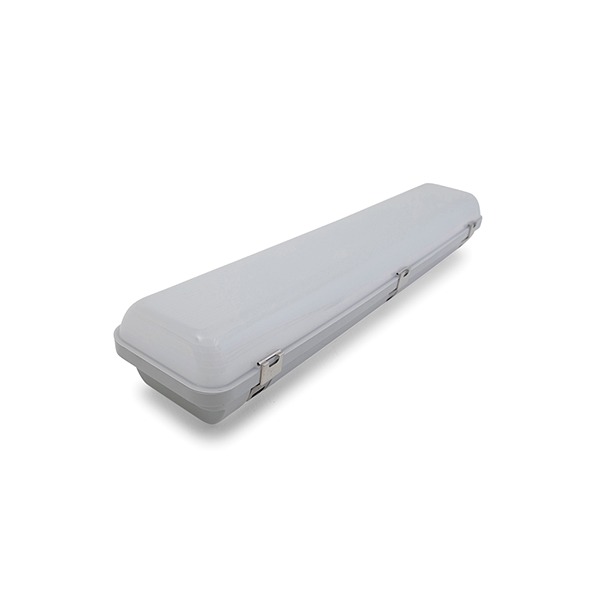

Advanced IP65 Weatherproof Batten, Dual Power, Tri-CCT

Features

  • Tri-colour selection
  • IP65 weatherproof rating and IK08 impact rating
  • Selectable output power
  • Exclusive 5 year warranty
  • Increased lumen efficiency
  • >60000h L70 or 42000h L80 led lifetime at 40 degrees
  • Increased ambient temperature of 40 degrees
  • 8 year product design life

Selected Models

  • Emergency models fully compliant (AS/NZS 2293.3)
  • High quality lithium battery (LiFePO4) and smart charger included with emergency models
  • Microwave sensor
  • Corridor function
SKU: Umbra Advanced IP65 Category: Tags: , , ,

Mechanical

Body MaterialPolycarbonate
Diffuser MaterialPolycarbonate
Fitting ColourGrey
IK RatingIK08
Installation TypeSurface mount
IP RatingIP65

Electrical

Electrical RatingClass I
Input Current
EV-UMBRA-ADV-IP65-600-EM-S-TRI
EV-UMBRA-ADV-IP65-600-EM-TRI
EV-UMBRA-ADV-IP65-600-S-TRI
EV-UMBRA-ADV-IP65-600-TRI
0.1 A
EV-UMBRA-ADV-IP65-1200-EM-S-TRI
EV-UMBRA-ADV-IP65-1200-EM-TRI
EV-UMBRA-ADV-IP65-1200-S-TRI
EV-UMBRA-ADV-IP65-1200-TRI
0.2 A
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage
EV-UMBRA-ADV-IP65-600-TRI17 W
EV-UMBRA-ADV-IP65-600-EM-S-TRI
EV-UMBRA-ADV-IP65-600-EM-TRI
EV-UMBRA-ADV-IP65-600-S-TRI
22 W
EV-UMBRA-ADV-IP65-1200-EM-S-TRI
EV-UMBRA-ADV-IP65-1200-EM-TRI
EV-UMBRA-ADV-IP65-1200-S-TRI
EV-UMBRA-ADV-IP65-1200-TRI
36 W
Power Factor0.9
Standby Power1 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Switch TypeInline
Working Temp Range0 to 40 °C

Lamp

Macadam Steps (SDCM)4-step MacAdam Ellipse
CCT ConfigurationTRI-CCT
CRI>80
Lamp/LED Current
EV-UMBRA-ADV-IP65-600-TRI350 mA
EV-UMBRA-ADV-IP65-600-EM-S-TRI
EV-UMBRA-ADV-IP65-600-EM-TRI
EV-UMBRA-ADV-IP65-600-S-TRI
450 mA
EV-UMBRA-ADV-IP65-1200-TRI800 mA
EV-UMBRA-ADV-IP65-1200-EM-S-TRI
EV-UMBRA-ADV-IP65-1200-EM-TRI
EV-UMBRA-ADV-IP65-1200-S-TRI
890 mA
Lamp/LED voltage
EV-UMBRA-ADV-IP65-1200-EM-S-TRI
EV-UMBRA-ADV-IP65-1200-EM-TRI
EV-UMBRA-ADV-IP65-1200-S-TRI
EV-UMBRA-ADV-IP65-600-EM-S-TRI
EV-UMBRA-ADV-IP65-600-EM-TRI
EV-UMBRA-ADV-IP65-600-S-TRI
36 V
EV-UMBRA-ADV-IP65-1200-TRI
EV-UMBRA-ADV-IP65-600-TRI
42 V
System Efficiency
EV-UMBRA-ADV-IP65-600-EM-S-TRI
EV-UMBRA-ADV-IP65-600-EM-TRI
EV-UMBRA-ADV-IP65-600-S-TRI
98 lm/W
EV-UMBRA-ADV-IP65-600-TRI114 lm/W
EV-UMBRA-ADV-IP65-1200-EM-S-TRI
EV-UMBRA-ADV-IP65-1200-EM-TRI
EV-UMBRA-ADV-IP65-1200-S-TRI
EV-UMBRA-ADV-IP65-1200-TRI
118 lm/W

LED Lifetime

LED Lifetime>60000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Ektor does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.
LED Lifetime Ratings (Failure rate & lumen depreciation)
Ambient Temp (°C)25 °C40 °C
L90B1023000 hrs21000 hrs
L80B1046000 hrs42000 hrs
L70B10>60000 hrs>60000 hrs
L70B50>60000 hrs>60000 hrs
This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717.
TM-21 Test Hours10000 hrs

Colour temperature

EV-UMBRA-ADV-IP65-1200-EM-S-TRI
EV-UMBRA-ADV-IP65-1200-EM-TRI
EV-UMBRA-ADV-IP65-1200-S-TRI
EV-UMBRA-ADV-IP65-1200-TRI
20 Watts
Warm White (4000K)>2150 lm
Cool White (5000K)>2200 lm
DayLight (6500K)>2100 lm
36 Watts
Warm White (4000K)>4100 lm
Cool White (5000K)>4250 lm
DayLight (6500K)>4000 lm
EV-UMBRA-ADV-IP65-600-EM-S-TRI
EV-UMBRA-ADV-IP65-600-EM-TRI
EV-UMBRA-ADV-IP65-600-S-TRI
12 Watts
Warm White (4000K)>1100 lm
Cool White (5000K)>1150 lm
DayLight (6500K)>1100 lm
22 Watts
Warm White (4000K)>2050 lm
Cool White (5000K)>2150 lm
DayLight (6500K)>2000 lm
EV-UMBRA-ADV-IP65-600-TRI
9 Watts
Warm White (4000K)>1100 lm
Cool White (5000K)>1150 lm
DayLight (6500K)>1100 lm
17 Watts
Warm White (4000K)>1900 lm
Cool White (5000K)>1950 lm
DayLight (6500K)>1850 lm

Driver

DimmableNo
Driver IncludedYes
Integrated DriverNo
Driver ModeConstant Current
Driver TypeFixed output
Wiring Type
EV-UMBRA-ADV-IP65-1200-TRI
EV-UMBRA-ADV-IP65-600-TRI
Re-wireable terminal block (3 pin)
EV-UMBRA-ADV-IP65-1200-EM-S-TRI
EV-UMBRA-ADV-IP65-1200-EM-TRI
EV-UMBRA-ADV-IP65-1200-S-TRI
EV-UMBRA-ADV-IP65-600-EM-S-TRI
EV-UMBRA-ADV-IP65-600-EM-TRI
EV-UMBRA-ADV-IP65-600-S-TRI
Re-wireable terminal block (4 pin)

Sensor (S suffix)

Adjustable Detection Area / SensitivityYes
Adjustable Hold TimeYes
Adjustable Standby LevelYes
Adjustable Standby PeriodYes
Corridor FunctionYes
Detection Range10 m
Dusk ModeYes
Lux AdjustmentYes
Sensor TypeMicrowave
Switched OutputNo
Time Delay5s-14mins

Emergency (EM suffix)

Replacement Battery Code01302
Emergency Classification
EV-UMBRA-ADV-IP65-600-EM-S-TRI
EV-UMBRA-ADV-IP65-600-EM-TRI
C0:D50, C90:D40
EV-UMBRA-ADV-IP65-1200-EM-S-TRI
EV-UMBRA-ADV-IP65-1200-EM-TRI
C0:D63, C90:D40
Emergency Duration90 mins
Emergency Lumen Output400 lm
Emergency ModeMaintained
Emergency Output Power
EV-UMBRA-ADV-IP65-600-EM-S-TRI
EV-UMBRA-ADV-IP65-600-EM-TRI
3400 mW
EV-UMBRA-ADV-IP65-1200-EM-S-TRI
EV-UMBRA-ADV-IP65-1200-EM-TRI
3600 mW

Energy Savings Scheme

Ipart ApprovalYes
REES ApprovalYes
VEU ApprovalYes

Compliance

Product Design Life8 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Daily Use16 hrs
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3
  • AS/NZS 4268
  • AS/NZS 60598.2.1

Warranty

Commercial Use Warranty2 Onsite, 3 RTB (Total 5 Years)
This product is covered with our extended commercial use warranty, which covers the product for up to 5-years. The first 2-years of the warranty is provided onsite within our terms and conditions and the remaining 3-year period is covered by a return to base warranty.
Warranty Operating Hours25000 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).
Item CodeProduct HeightProduct LengthProduct Width
EV-UMBRA-ADV-IP65-1200-EM-S-TRI93 mm1230 mm130 mm
EV-UMBRA-ADV-IP65-1200-EM-TRI93 mm1230 mm130 mm
EV-UMBRA-ADV-IP65-1200-S-TRI93 mm1230 mm130 mm
EV-UMBRA-ADV-IP65-1200-TRI93 mm1230 mm130 mm
EV-UMBRA-ADV-IP65-600-EM-S-TRI93 mm620 mm130 mm
EV-UMBRA-ADV-IP65-600-EM-TRI93 mm620 mm130 mm
EV-UMBRA-ADV-IP65-600-S-TRI93 mm620 mm130 mm
EV-UMBRA-ADV-IP65-600-TRI93 mm620 mm130 mm
EV/UMBRA/ADV/IP65
Ordering codeItem codeDescriptionAvailability
12033EV-UMBRA-ADV-IP65-1200-EM-S-TRIUMBRA ADVANCED 1200mm LED Emergency batten - Tri-CCT w sensor
12037EV-UMBRA-ADV-IP65-1200-EM-TRIUMBRA ADVANCED 1200mm LED Emergency batten - Tri-CCT Ver 2
12032EV-UMBRA-ADV-IP65-1200-S-TRIUMBRA ADVANCED 1200mm LED batten - Tri-CCT w sensor
11219EV-UMBRA-ADV-IP65-1200-TRIUMBRA Advanced 1200mm LED wide body batten - Tri-CCT
12031EV-UMBRA-ADV-IP65-600-EM-S-TRIUMBRA ADVANCED 600mm LED Emergency batten - Tri-CCT w sensor
12035EV-UMBRA-ADV-IP65-600-EM-TRIUMBRA ADVANCED 600mm LED Emergency batten - Tri-CCT Ver 2
12030EV-UMBRA-ADV-IP65-600-S-TRIUMBRA ADVANCED 600mm LED batten - Tri-CCT w sensor
11204EV-UMBRA-ADV-IP65-600-TRIUMBRA Advanced 600mm LED wide body batten - Tri-CCT
