Emergency timer

Simple emergency testing solution
Image module

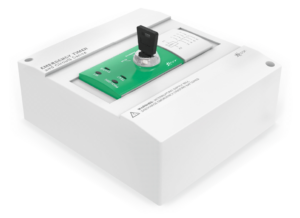

Emergency Timer Assembly

Surface Mounted
Image module

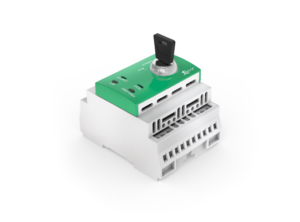

Emergency Timer

DIN Mounted
Standards-compliant testing
Triggers full 90 or 120-minute emergency lighting discharge tests to meet Australian standards.
Safe, non-disruptive operation
Initiate and stop emergency mode safely without interrupting normal building power or operations.
Multi-circuit and scalable
One unit supports multiple emergency lighting circuits, with linkable expansion if required.
Easy retrofit and low maintenance
Simple switchboard installation, consistent test procedures, and reduced labour, errors, and ongoing maintenance burden.

Compliance made easy

The Emergency Lighting Test Timer is a purpose‑built, manual test switch and timer designed to make compliance testing of emergency lighting circuits simple, safe, and repeatable.

It’s the smart solution for building managers, facility owners and electricians — especially when you need to ensure full compliance under AS/NZS 2293.1‑2018 without disrupting normal operations.

It’s built for Australian conditions with 240V AC operation and long-life reliability for your peace of mind.

Image module
Image module

Key features and specifications

  • Test modes: 90‑minute or 120‑minute discharge tests.
  • Supports multiple sensing circuits, with the option to expand further using linkable units to ensure compliance with relevant standards. Circuit sensing is required in many installations to ensure that emergency lighting is activated when the corresponding lighting circuit fails.
  • Standard DIN-rail switchboard/DB mounting or supplied complete with a DIN housing and contactor.
  • Complies with AS/NZS 2293.1 emergency lighting requirements required in the BCA

Installation and maintenance

Installation is straightforward — the timer mounts on a DIN rail inside the distribution board and is wired to the emergency lighting circuit and the corresponding lighting circuit.

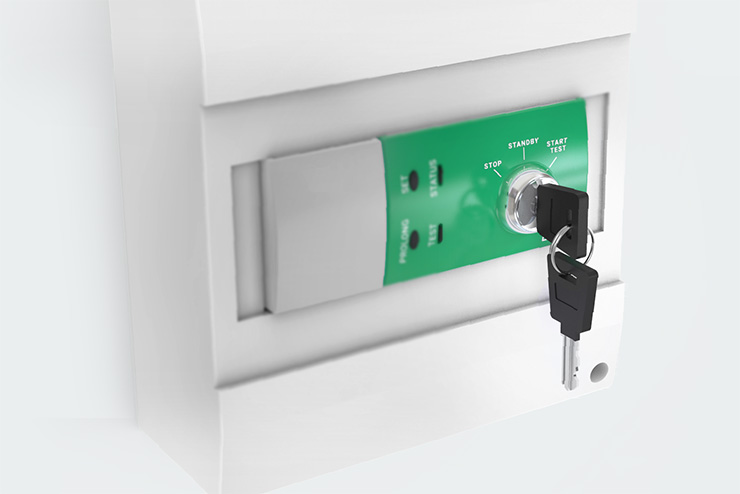

Once installed, testing requires inserting the key and activating the timer. Multiple circuits can be supported, and additional units can be linked for larger installations.

Testing becomes predictable and manageable, with consistent start/stop procedures and selectable test durations.

Image module
Image module

Who benefits?

Our simplified and compliant emergency testing solution brings benefits for all stakeholders.

  • Building owners and facility managers:
    Maintain compliance and avoid liability
  • Electricians and service contractors:
    Streamline 6-monthly and annual tests.
  • Property managers:
    Simple, reliable compliance demonstration.
  • Large sites such as offices, apartments, retail and warehouses:
    Scalable and efficient system testing.

Other test methods

Ektor produces devices compatible with the DALI-2 open protocol lighting control standard and Ektor Lynk wireless meshing for advanced control, monitoring, and testing of your emergency lighting system.

Learn more
Illustration of emergency lighting plan and logbook connected to a phone and uploaded to the cloud
