EV-DOME

$0.00

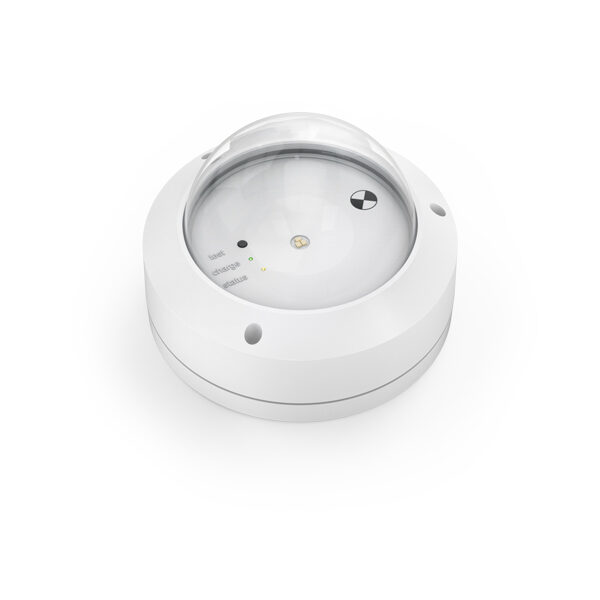

Ledfire Dome Vandal Resistant Fitting – Head Only

Features

  • Vandal resistant Dome IK10 / IP65
  • Works with Ledfire Lite/ Advanced and Ledfire PRO products
  • Add on Head with LED Dish built in
  • Ideal for train stations and other areas which need protection from Vandalism
SKU: Acc-EV-DOME Category: Tags: , ,

Mechanical

Fitting ColourWhite
IK RatingIK10
IP RatingIP65

Electrical

Electrical RatingClass III
Working Temp Range0 to 40 °C

Driver

Driver IncludedNo

Emergency (EM suffix)

Emergency ClassificationC0:D63, C90:D63
Emergency Duration120 mins
Emergency Lumen Output460 lm
Emergency ModeNon-Maintained
Emergency Output Power4300 mW

Compliance

Product Design Life10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.

Warranty

Commercial Use Warranty1 RTB (Total 1 Year)
Cutout92 mm
Product Diameter110 mm
Product Height82 mm
EV/DOME
Ordering codeItem codeDescriptionAvailability
12800EV-DOME-SM-HEADDome vandal resistant fitting Head Only - IP65/IK10 with ceiling bracket

*Auto generated datasheet (beta)
