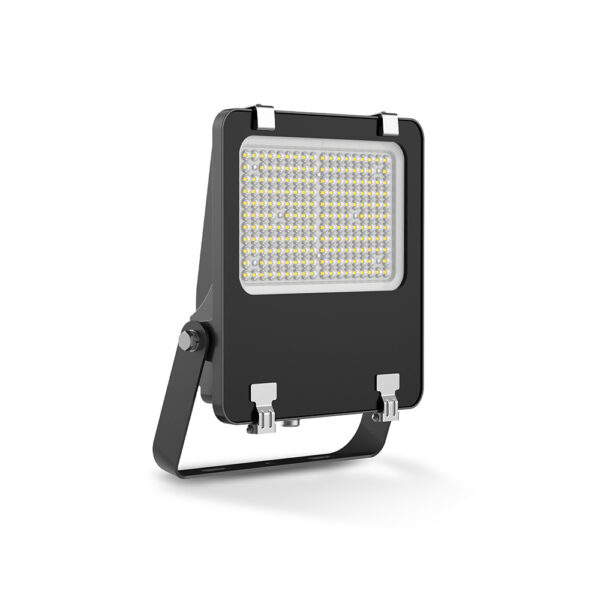

Altura Advanced

$0.00

Asymmetric flood light – power selectable – 5000K

  • Asymmetrical optics for precise lighting control and focused, efficient illumination
  • 150W and 240W models with three selectable power settings and up to 166 lm/W efficiency
  • Dimmable constant current driver with up to 37,150 lm (240W) or 21,750 lm (150W) output
  • IP66 and IK08 ratings offer high weather and impact resistance for outdoor and public areas
  • Up to 50 degrees Celsius working temperature range improves lifespan in hot outdoor environments

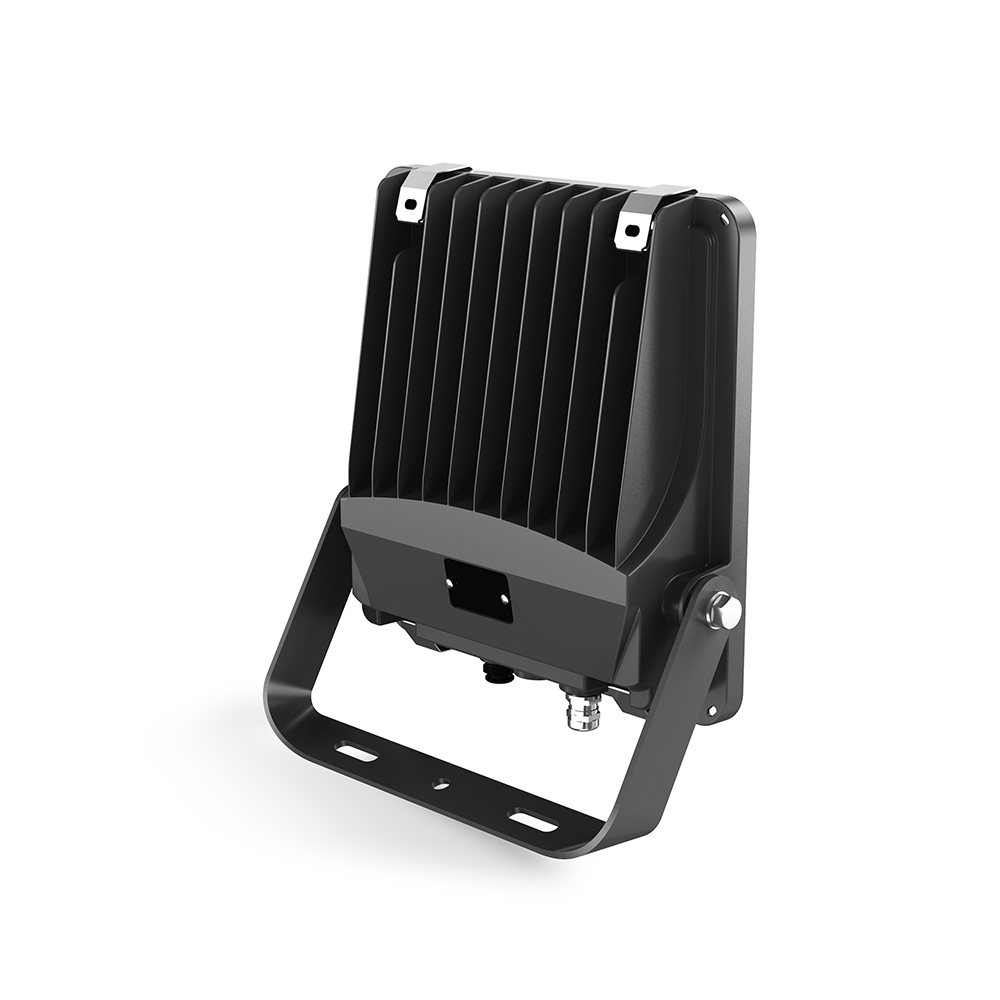

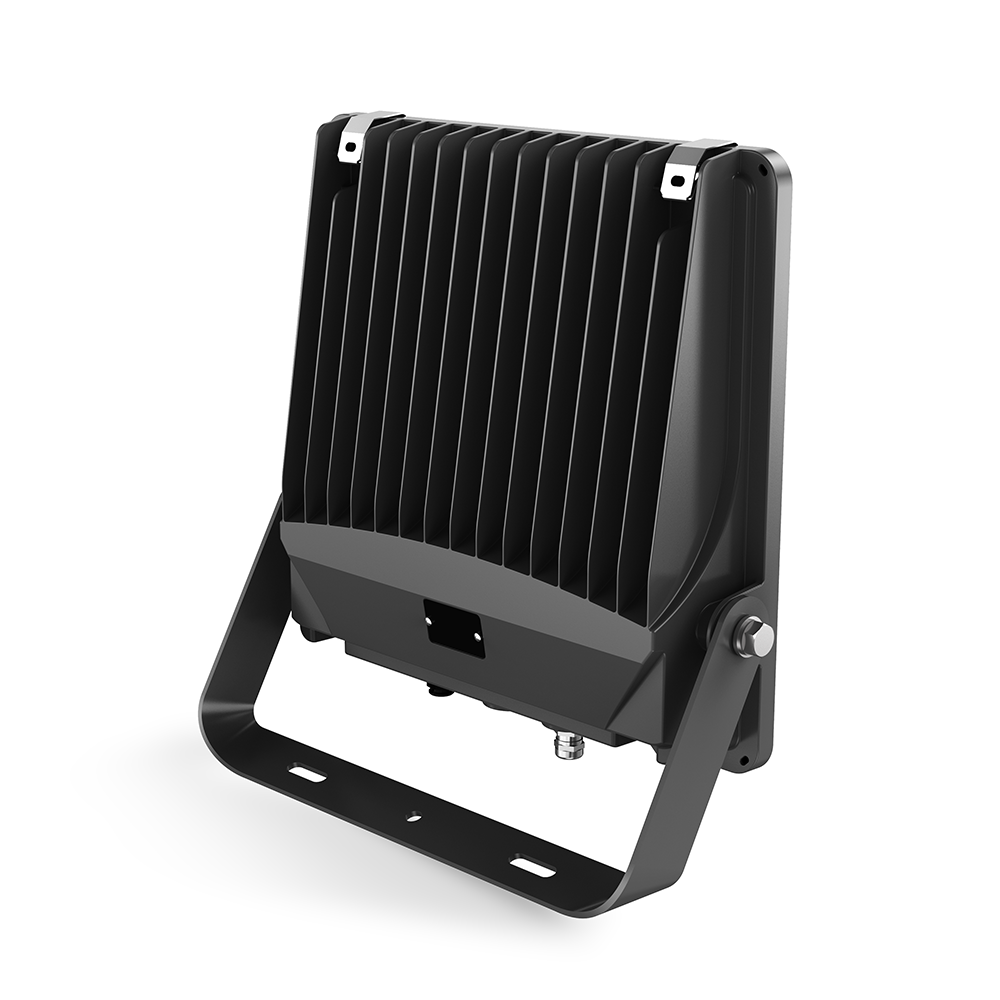

  • Glass diffuser lens and powdercoated aluminium body with adjustable bracket mount
  • Optional alternate 60 degree lenses available
  • 1-10V Dimmable
SKU: Altura Advanced Category: Tags: ,

Efficiencies

Total System Efficiency
EV-ALTURA-ADV-150154 lm/W
EV-ALTURA-ADV-240166 lm/W
The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system.

Mechanical

IP RatingIP66
IK RatingIK08
AdjustabilityAdjustable
Fitting ColourSilver-grey
Product FinishPowdercoated
Body MaterialAluminium
Diffuser MaterialGlass
Installation TypeSurface mount

Electrical

Working Temp Range50 °C
Input Frequency50 Hz
Power Factor0.97
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Earth Leakage0.75 mA
Power Selection
EV-ALTURA-ADV-240120 / 180 / 240 W
EV-ALTURA-ADV-15075 / 113 / 150 W

Lamp

CCT ConfigurationSingle
Beam AngleAsymmetric °

Colour temperature

EV-ALTURA-ADV-150
113 Watts
DayLight (5000 K)16900 lm
150 Watts
DayLight (5000 K)21750 lm
75 Watts
Daylight (5000 K)11550 lm
EV-ALTURA-ADV-240
180 Watts
DayLight (5000 K)29000 lm
240 Watts
DayLight (5000 K)37150 lm
120 Watts
Daylight (5000 K)20000 lm

Driver

Driver Type1-10V dimmable
Driver IncludedYes
Integrated DriverYes
DimmableYes
Flex & Plug or Lead Length1500 mm
Wiring TypeFlying leads (3 wire)
Driver ModeConstant Current

Warranty

Domestic Use Warranty5 RTB (Total 5 Years)
Item CodeProduct HeightProduct LengthProduct WidthProduct Weight
EV-ALTURA-ADV-150357 mm310 mm75 mm3700 g
EV-ALTURA-ADV-240440 mm419 mm87 mm6600 g
EV/ALTURA/ADV/150
EV/ALTURA/ADV/240
Order codeItem codeDescriptionAvailability
14031EV-ALTURA-ADV-150150W Asymmetric flood light - power selectable - 5000K

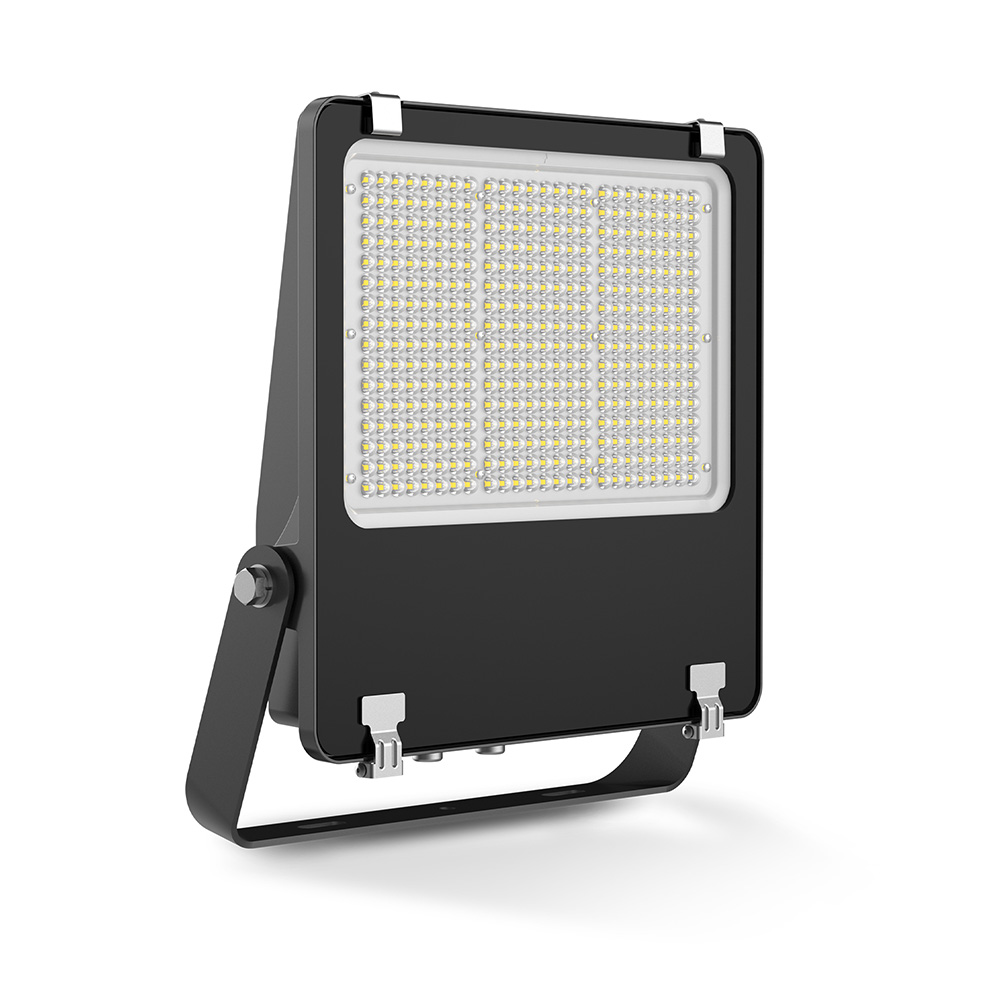

14032EV-ALTURA-ADV-240240W Asymmetric flood light - power selectable - 5000K

Instruction Manual

Datasheet

Compliance


*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
14037EV-ALTURA-150W-60D-LENS60deg Lens to suit the 150W Altura Advanced Floodlight
14038EV-ALTURA-240W-60D-LENS60deg Lens to suit the 240W Altura Advanced Floodlight
