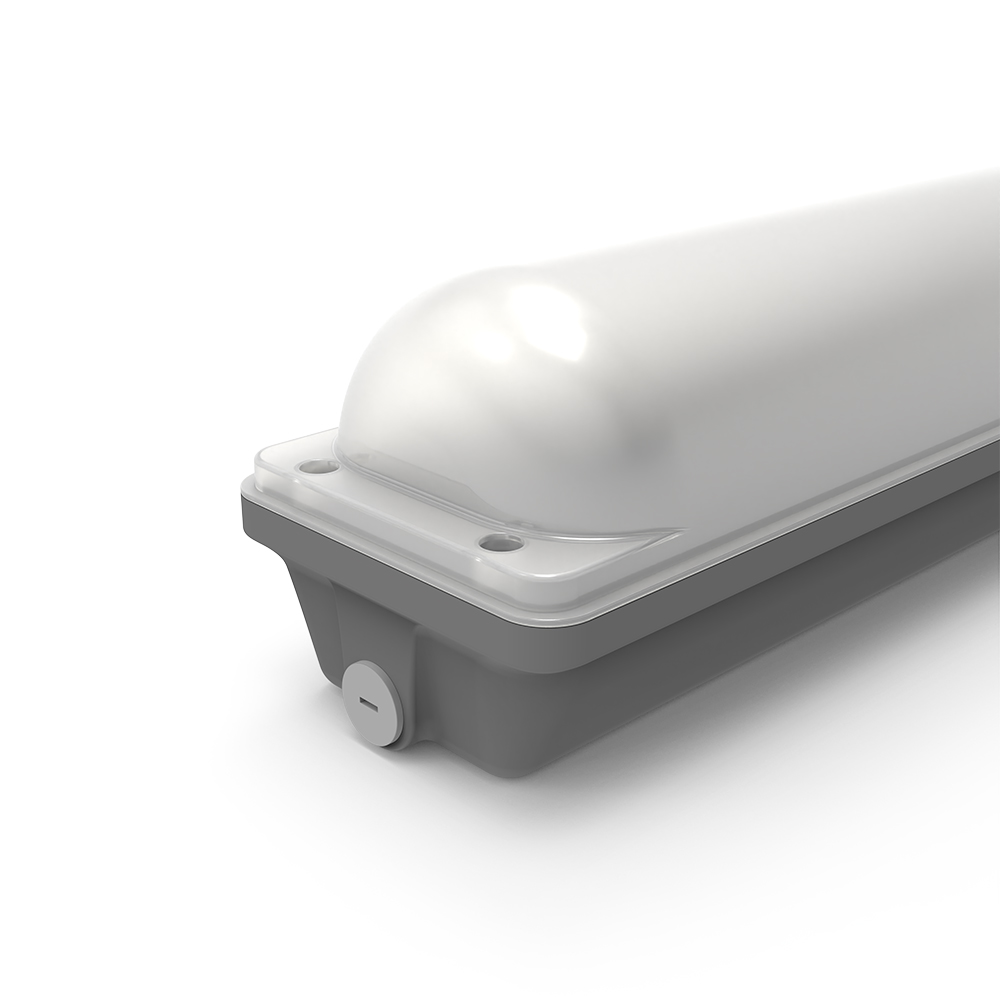

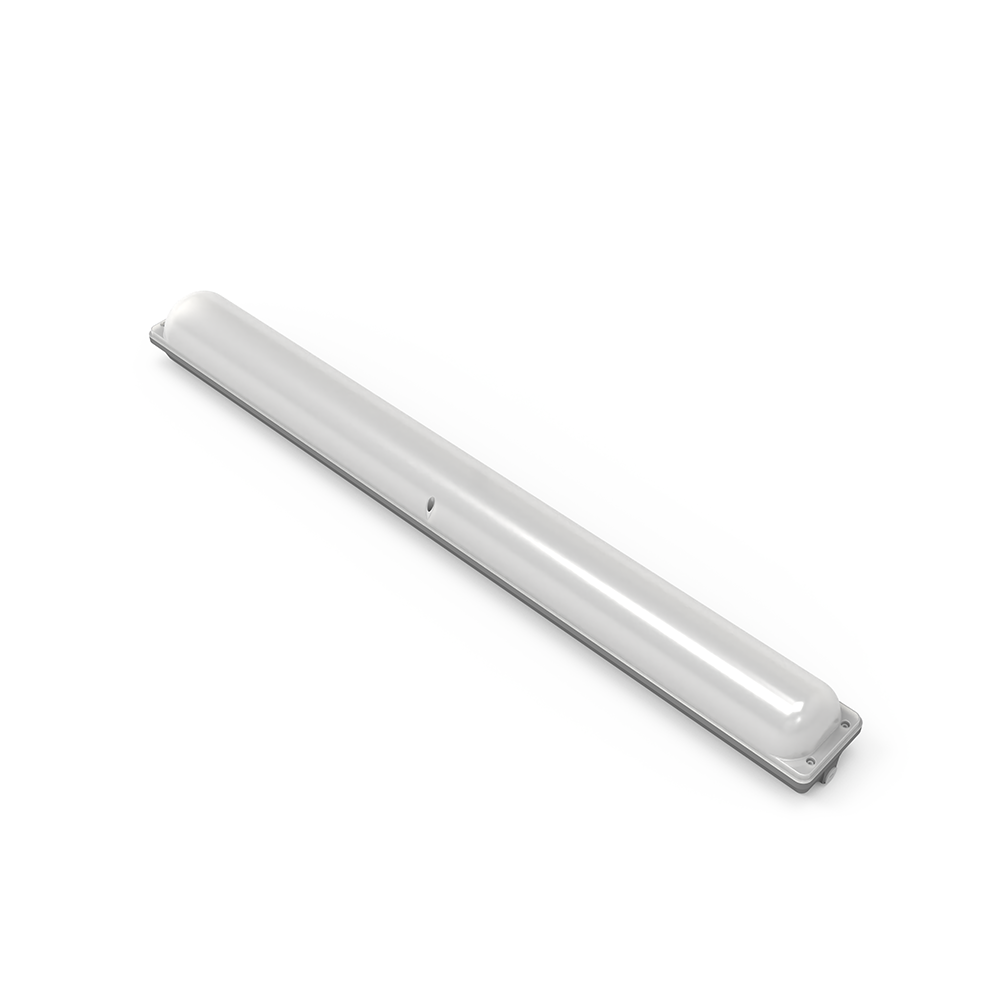

Mechanical
| IP Rating | IP66 |
|---|---|
| IK Rating | IK10 |
| Adjustability | Fixed |
| Fitting Colour | Grey |
| Product Finish | Powder coated |
| Body Material | Die-cast aluminium |
| Diffuser Material | Polycarbonate |
| Installation Type | Surface mount |
Electrical
| Working Temp Range | -20 to 40 °C |
|---|---|
| Power Factor | 0.95 |
| Maximum Wattage | |
| BAR1PF-NSADAAD3568040B4 BAR1PF-NSADAAH3568040B4 | 26.2 W |
| BAR1PF-NSADAAD6588040B3 | 47.2 W |
Lamp
| Colour Rendering Index (CRI) | >80 |
|---|---|
| CCT Configuration | Single |
| Macadam Steps (SDCM) | 3-step MacAdam Ellipse |
| Light Output Ratio (LOR) | 75 % |
| M/P Ratio (MR) | 0.61 |
| CRI (R9) | 35.04 |
LED Lifetime
| LED Lifetime | >54000 hrs |
|---|---|
| This is the Reported LED Lifetime in Hours based on TM-21. Ektor does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
| LED Lifetime Rating | L90B10 |
Colour temperature
| CCT Colour | Neutral White |
|---|---|
| Luminaire Lumens | |
| BAR1PF-NSADAAD3568040B4 BAR1PF-NSADAAH3568040B4 | 3560 lm |
| BAR1PF-NSADAAD6588040B3 | 6580 lm |
| All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire. | |
| CCT | 4000 K |
Driver
| Driver Type | |
|---|---|
| BAR1PF-NSADAAD3568040B4 BAR1PF-NSADAAD6588040B3 | DALI DT6 LED Driver |
| BAR1PF-NSADAAH3568040B4 | Lynk Wireless or DALI-2 with DT1 |
| DALI DT6 ~ Includes DALI-2 Driver with full support for DT6 allowing flicker free dimming with compliant DALI-2 Application controllers. | |
| Driver Included | Yes |
| Dimmable | Yes |
| Wiring Type | Re-wireable terminal block (5 pin) |
| Driver Mode | Constant Current |
| Driver Warranty | 5 Yr |
| Flicker Free | Yes |
| Driver Current | |
| BAR1PF-NSADAAD3568040B4 BAR1PF-NSADAAH3568040B4 | 700 mA |
| BAR1PF-NSADAAD6588040B3 | 1300 mA |
| PSTLM | |
| BAR1PF-NSADAAD3568040B4 BAR1PF-NSADAAD6588040B3 | 0.005 |
| BAR1PF-NSADAAH3568040B4 | 0.08 |
| Short Term Light Modulation (PstLM): The requirement is that PstLM should be less than or equal to 1.0. This metric measures the short-term flicker severity and ensures that flicker is not perceptible or is at a level that does not cause discomfort or health issues. | |
| SVM | |
| BAR1PF-NSADAAD3568040B4 BAR1PF-NSADAAD6588040B3 | 0.007 |
| BAR1PF-NSADAAH3568040B4 | 0.018 |
| Stroboscopic Visibility Measure (SVM): The requirement for SVM is that it should be less than or equal to 0.4. The SVM metric assesses the visibility of the stroboscopic effect, which can make moving objects appear to be stationary or moving in discrete steps, thus ensuring that this effect is minimized in lighting environments to prevent visual discomfort and safety hazards. | |
Emergency (EM suffix)
| Emergency Mode | Combined |
|---|---|
| Emergency Classification | C0:D32, C90:D32 |
| Emergency Output Power | 1000 mW |
| Emergency Duration | 90 mins |
| Emergency Lumen Output | 185 lm |
| Emergency Control | DALI Monitored (DT1) |
| DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202. | |
Compliance
| Product Design Life | 87600 |
|---|---|
| The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
| Daily Use | 12 hrs |
| The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally. | |
Warranty
| Commercial Use Warranty | 5 RTB (Total 5 Years) |
|---|---|
| Warranty Operating Hours | 40000 hrs |
| This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first). | |
