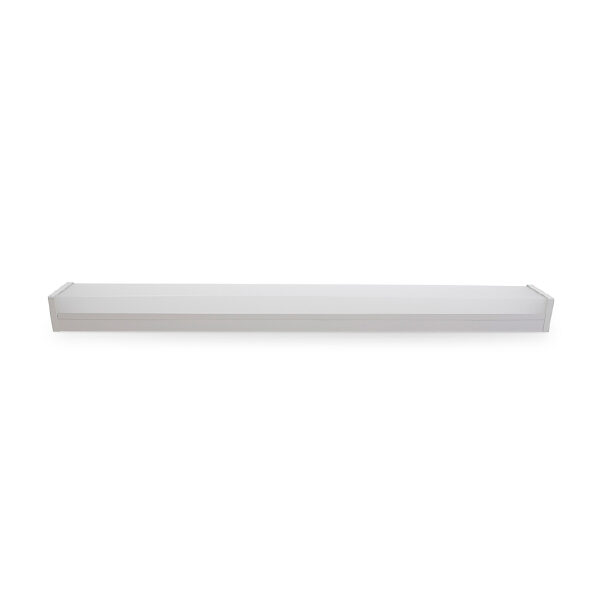

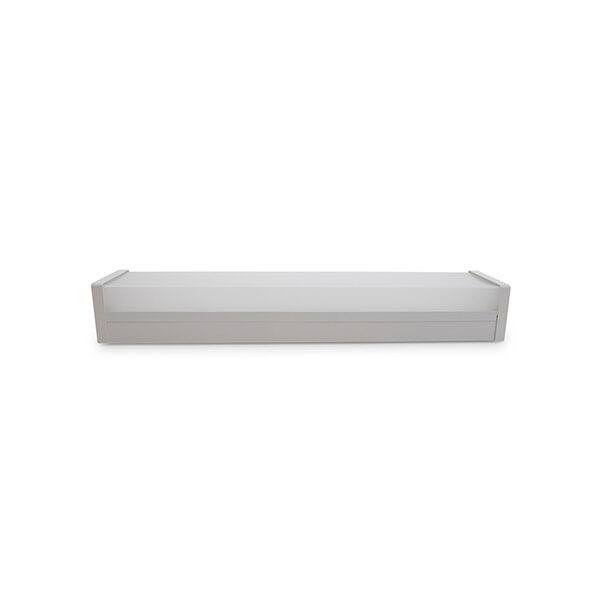

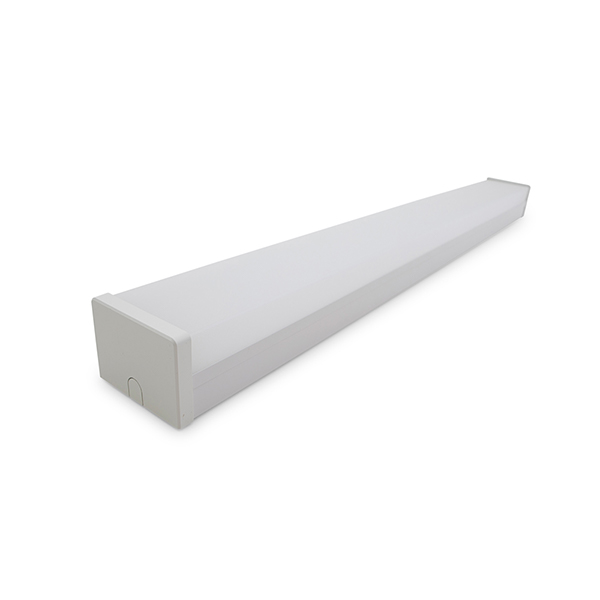

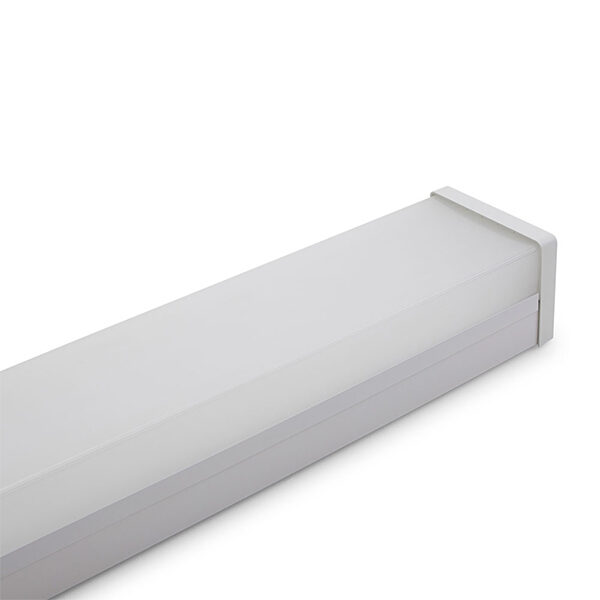

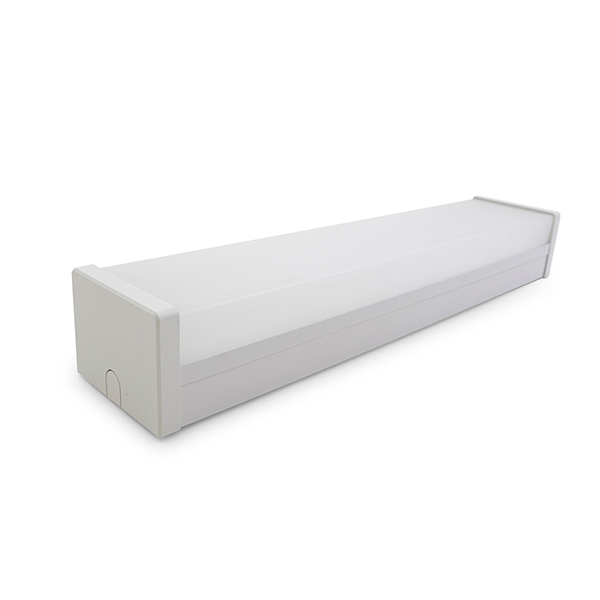

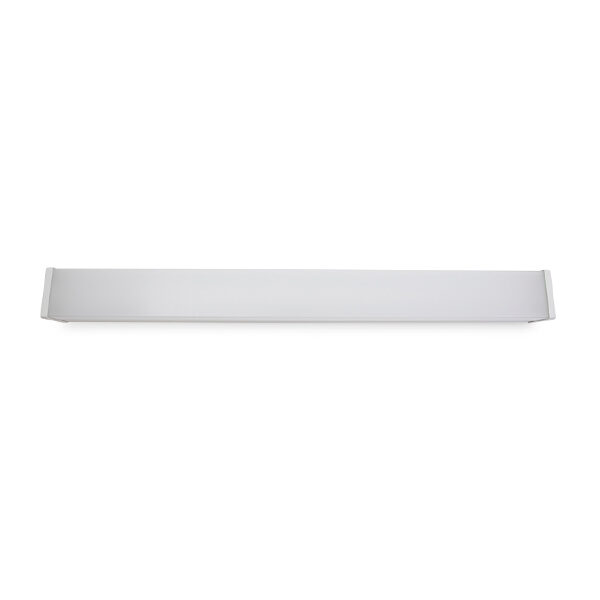

Umbra Professional Diffused

$0.00

Professional Diffused Batten, DALI Tuneable White (DT8-Tc)

Features

  • Smartest and most feature inclusive batten on the market. Provides long life and unrivaled control.
  • Tuneable white (DT8-Tc) driver and LED allows tuning of the white colour to suit the application or time of day.
  • Flicker-free dimming throughout the dimming range which allows light level adjustment to gain maximum power savings.
  • LED lifetime >120,000 hours (L70), 90,000 hours (L80) and 43,000 hours (L90).
  • 10 year Product design life at 40 degrees and 24 hours use.
  • Full support for DALI and DALI-2 (IEC 62386) DT6 (LED) and DT8 (Tuneable white).
  • Power monitoring (DT51) allows control systems to montior and report active power and total power consumption.
  • Built-in DALI-2 switch can be used for standalone control or unlimited control with DALI-2 compliants control systems.

Selected Models

  • DALI (IEC62386)
  • Emergency models fully compliant (AS/NZS 2293.3) and supports DALI DT1 (IEC 62386-202).
  • Soft-start battery charger to reduce building load, allowing the building to stabilize before adding additional load.
  • High quality lithium battery (LiFePO4) and smart charger to ensure long battery service life.
  • Microwave sensor suitable for DALI-2 (IEC 62386-303) allows unlimited control on DALI-2 compliant control systems.
  • Corridor mode support in standalone mode to intelligently save power by turning off when there is no occupancy.
  • Corridor mode function in standalone operation
SKU: Umbra Professional Diffused Category: Tags: ,

Mechanical

Body MaterialPowder Coated Steel
Diffuser MaterialPMMA
Fitting ColourWhite
Installation TypeSurface mount
IP RatingIP20

Electrical

Electrical RatingClass I
Input Frequency50 Hz
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage
EV-UMBRA-PRO-DIFF-600
EV-UMBRA-PRO-DIFF-600-EM
EV-UMBRA-PRO-DIFF-600-S
20 W
EV-UMBRA-PRO-DIFF-1200
EV-UMBRA-PRO-DIFF-1200-EM
EV-UMBRA-PRO-DIFF-1200-EM-S
EV-UMBRA-PRO-DIFF-1200-S
EV-UMBRA-PRO-DIFF-600-EM-S
33 W
Power Factor0.95
Standby Power0.3 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Switch TypeInbuilt Mains Rated DALI Switch
A Terminal input has been provided to allow the wiring of a Main rated switch input. This input can be programmed to switch any controlled area when using a DALI-2 compliant control system. This input supports IEC62386-301 (momentary or rocker switches), IEC62386-302 (on /off switches) and IEC62386-303 (mains rated sensor inputs).
Working Temp Range0 to 40 °C

Lamp

Macadam Steps (SDCM)3-step MacAdam Ellipse
CCT ConfigurationTUNEABLE WHITE
Full support for DALI-2 DT8 has been provided which allows White colour control on a compliant DALI-2 control system. This function can be used to set a desired colour or to transition between colours depending on the time of day.
CRI>84
Lamp/LED Current
EV-UMBRA-PRO-DIFF-600
EV-UMBRA-PRO-DIFF-600-EM
EV-UMBRA-PRO-DIFF-600-EM-S
EV-UMBRA-PRO-DIFF-600-S
650 mA
EV-UMBRA-PRO-DIFF-1200
EV-UMBRA-PRO-DIFF-1200-EM
EV-UMBRA-PRO-DIFF-1200-EM-S
EV-UMBRA-PRO-DIFF-1200-S
850 mA
Lamp/LED voltage
EV-UMBRA-PRO-DIFF-600
EV-UMBRA-PRO-DIFF-600-EM
EV-UMBRA-PRO-DIFF-600-EM-S
EV-UMBRA-PRO-DIFF-600-S
24 V
EV-UMBRA-PRO-DIFF-1200
EV-UMBRA-PRO-DIFF-1200-EM
EV-UMBRA-PRO-DIFF-1200-EM-S
EV-UMBRA-PRO-DIFF-1200-S
36 V

LED Lifetime

LED Lifetime>120000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Ektor does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.
LED Lifetime Ratings (Failure rate & lumen depreciation)
Ambient Temp (°C)25 °C40 °C
L90B1043000 hrs43000 hrs
L80B1090000 hrs90000 hrs
L70B10>120000 hrs>120000 hrs
L70B50>120000 hrs>120000 hrs
This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717.
TM-21 Test Hours20000 hrs

Colour temperature

CCT3000K to 6500K
CCT ColourTunable White
System Lumens
EV-UMBRA-PRO-DIFF-600
EV-UMBRA-PRO-DIFF-600-EM
EV-UMBRA-PRO-DIFF-600-EM-S
EV-UMBRA-PRO-DIFF-600-S
>2200 lm
EV-UMBRA-PRO-DIFF-1200
EV-UMBRA-PRO-DIFF-1200-EM
EV-UMBRA-PRO-DIFF-1200-EM-S
EV-UMBRA-PRO-DIFF-1200-S
>4400 lm
All photometric data has a tolerance of ±10%.

Driver

DimmableYes
Driver IncludedYes
Integrated DriverNo
Driver Type
EV-UMBRA-PRO-DIFF-1200-EM
EV-UMBRA-PRO-DIFF-1200-EM-S
EV-UMBRA-PRO-DIFF-600-EM
EV-UMBRA-PRO-DIFF-600-EM-S
DALI DT1 and DT8 Dimmable
EV-UMBRA-PRO-DIFF-1200
EV-UMBRA-PRO-DIFF-1200-S
EV-UMBRA-PRO-DIFF-600
EV-UMBRA-PRO-DIFF-600-S
DALI DT8 Dimmable
Dimmable ~ Includes DALI-2 Driver with full support for DT1, DT6 and DT8-tc allowing flicker free dimming and colour control with compliant DALI-2 Application controllers.
DALI DT8 ~ Includes DALI-2 Driver with full support for DT6 and DT8-tc allowing flicker free dimming and colour control with compliant DALI-2 Application controllers.
Power MonitoringDALI Device type 51 power monitoring
Inbuilt DALI-2 support for Device type 51 - Power monitoring for use with DALI-2 compliant control systems which allows the reporting of the products total power consumption for power aggregation and measurements.
Wiring TypeRe-wireable terminal block (6 pin)

Sensor (S suffix)

Adjustable Detection Area / Sensitivity [1] Yes
Adjustable Hold Time [1] Yes
Adjustable Standby Level [1] Yes
Adjustable Standby Period [1] Yes
Corridor Function [1] Yes
Dawn Reset [1] No
Detection Range [1] 10 m
Dusk Mode [1] No
Lux Adjustment [1] No
Manual Override [1] Yes
Sensor Communication [1] DALI 2
[1] Inbuilt DALI-2 Sensor for use with DALI-2 Compliant control systems. Some features and functions are only available for use with DALI-2 Application controllers which support the features. This product also supports a standalone mode for limited use without a DALI-2 application controller.
Sensor TypeMicrowave
Switched OutputNo
Time DelayVia DALI

Emergency (EM suffix)

Replacement Battery Code01302
Emergency ClassificationC0:D50, C90:D25
Emergency ControlDALI Monitored (DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
Emergency Duration90 mins
Emergency Lumen Output330 lm
Emergency ModeMaintained
Emergency Output Power1900 mW

Compliance

Product Design Life10 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS/NZS 60598.2.1
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • IEC 62386-102
  • IEC 62386-103
  • AS 60598.2.22
  • AS/NZS 2293.3
  • AS/NZS 4268

Warranty

Commercial Use Warranty2 Onsite, 3 RTB (Total 5 Years)
This product is covered with our extended commercial use warranty, which covers the product for up to 5-years. The first 2-years of the warranty is provided onsite within our terms and conditions and the remaining 3-year period is covered by a return to base warranty.
Warranty Operating Hours30000 hrs
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first).
Item CodeProduct HeightProduct LengthProduct Width
EV-UMBRA-PRO-DIFF-120093 mm1230 mm130 mm
EV-UMBRA-PRO-DIFF-1200-EM93 mm1230 mm130 mm
EV-UMBRA-PRO-DIFF-1200-EM-S93 mm1230 mm130 mm
EV-UMBRA-PRO-DIFF-1200-S93 mm1230 mm130 mm
EV-UMBRA-PRO-DIFF-60093 mm620 mm130 mm
EV-UMBRA-PRO-DIFF-600-EM93 mm620 mm130 mm
EV-UMBRA-PRO-DIFF-600-EM-S93 mm620 mm130 mm
EV-UMBRA-PRO-DIFF-600-S93 mm620 mm130 mm
EV/UMBRA/PRO/DIFF
DALI Dimmable ( DT6/DT8)
Ordering codeItem codeDescriptionAvailability
12237EV-UMBRA-PRO-DIFF-1200UMBRA PRO 1200mm Diffused LED batten
12239EV-UMBRA-PRO-DIFF-1200-SUMBRA PRO 1200mm Diffused LED batten with sensor
12233EV-UMBRA-PRO-DIFF-600UMBRA PRO 600mm Diffused LED batten
12235EV-UMBRA-PRO-DIFF-600-SUMBRA PRO 600mm Diffused LED batten with sensor
DALI Dimmable (DT6/DT8) and DALI Emergency Test and Monitoring (DT1)
Ordering codeItem codeDescriptionAvailability
12238EV-UMBRA-PRO-DIFF-1200-EMUMBRA PRO 1200mm Diffused LED Emergency batten
12240EV-UMBRA-PRO-DIFF-1200-EM-SUMBRA PRO 1200mm Diffused LED Emergency batten with sensor
12234EV-UMBRA-PRO-DIFF-600-EMUMBRA PRO 600mm Diffused LED Emergency batten
12236EV-UMBRA-PRO-DIFF-600-EM-SUMBRA PRO 600mm Diffused LED Emergency batten with sensor
