Product range

Order code Description

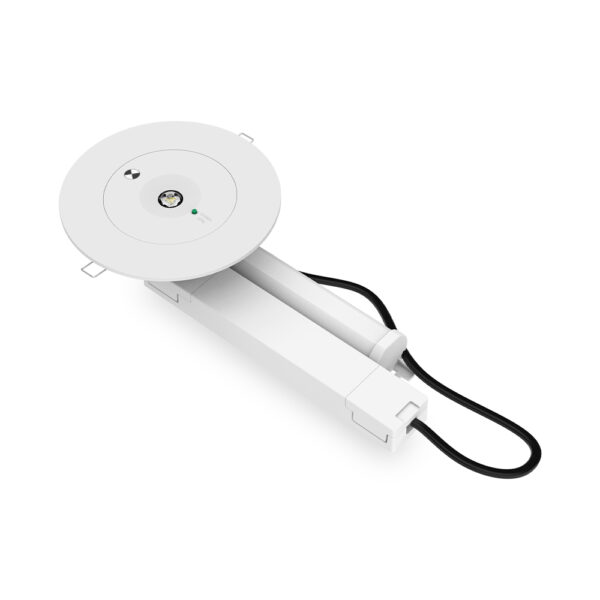

EV-LEDFIRE-PRO-LK Lynk Ledfire Professional Emergency Luminaire – w/wireless

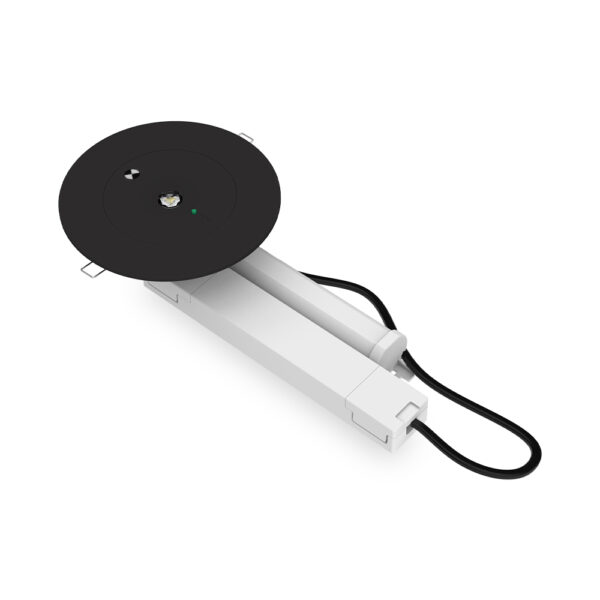

EV-LEDFIRE-PRO-B-LK Lynk Ledfire Professional Emergency Luminaire, Black – w/wireless
GENERAL FEATURES
  • Wireless meshing system
  • Non-maintained operation
  • Soft-start charger to reduce building load
  • Lowest energy consumption (avg. <0.25W)
  • Selectable discharge rating for hazardous areas
  • Fast emergency switch-over (<0.5s) for high-task areas
BUILT TO LAST
  • Long life electronics
  • 10 Years Design Life – 100,000 hours at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
SUITABLE INSTALLATION TYPES (OUT OF THE BOX)
  • IEC 62386 over IEC 62386-104
  • Self test (AS2293/ IEC62034)
  • Wireless monitoring via Ektor Lynk

Downloads

Image module

Accessory range

Order code Description
EV-LEDFIRE-PRO-RD Ledfire Replacement dish
EV-3000MAH-6.4V-LIFEPO4 3000mAH 6.4V 2 Cel LiFePO4 battery
EV-CMS-2.4M-5PIN CMS 5 Pin Plug Set, 2.4M
EV-WAGO-2.4M-F&P WAGO Plug 5-P Blue 51110475, 2.4M
EV-WIELAND-2.4M-F&P Wieland Plug GST18I5S B1 ZR1 S PB02, 2.4M
EV-WIREDBYCLICK-2.4M-F&P Wire By Click 5-Pin Lead L1025/5, 2.4M
EV-CMS-2.4M-6PIN CMS 6 Pin Plug Set, 2.4M

Specifications

General
Supply voltage 240V~ 50Hz
Ambient temperature 0 – 40°C
Class 2
Wiring Flex and Plug
IP rating IP20
Mounting type Recessed
Wireless IEC62386-104 over Thread
Lamp power 4.3W
Emergency
Emergency  lamp power 4.3W
Classification D63
Rated duration 90 / 120 min (1 / 3 / 4 / 8 hours, selectable)
Rated lumens 380 lm (2 hr)
Compliance
Standards
  • AS/NZS 60598.2.22
  • AS/NZS 2293.3
  • CISPR 15
  • IEC 60598-2-22
  • IEC 62386-104
  • IEC 62386-102
  • IEC 62386-202
  • IEC 62034
Construction
Inverter PC V0, 850 glow wire
Dish PC V2, 750 glow wire
Cut out Ø 70 mm – inner ring,  Ø 75 – 130 mm – outer ring
Weight 0.45 kg net / 2.78 kg gross
Battery
Type  LiFePO4
Voltage  6.4V
Code 01303
Charger
Type  Smart charge
Time  16 hours
Operation  Adjustable

Emergency classification (AU)

Hours 1 2 3 4 8 CB
Standard D63 D63 D40 D32 D20 N/A
