Horizon

$0.00

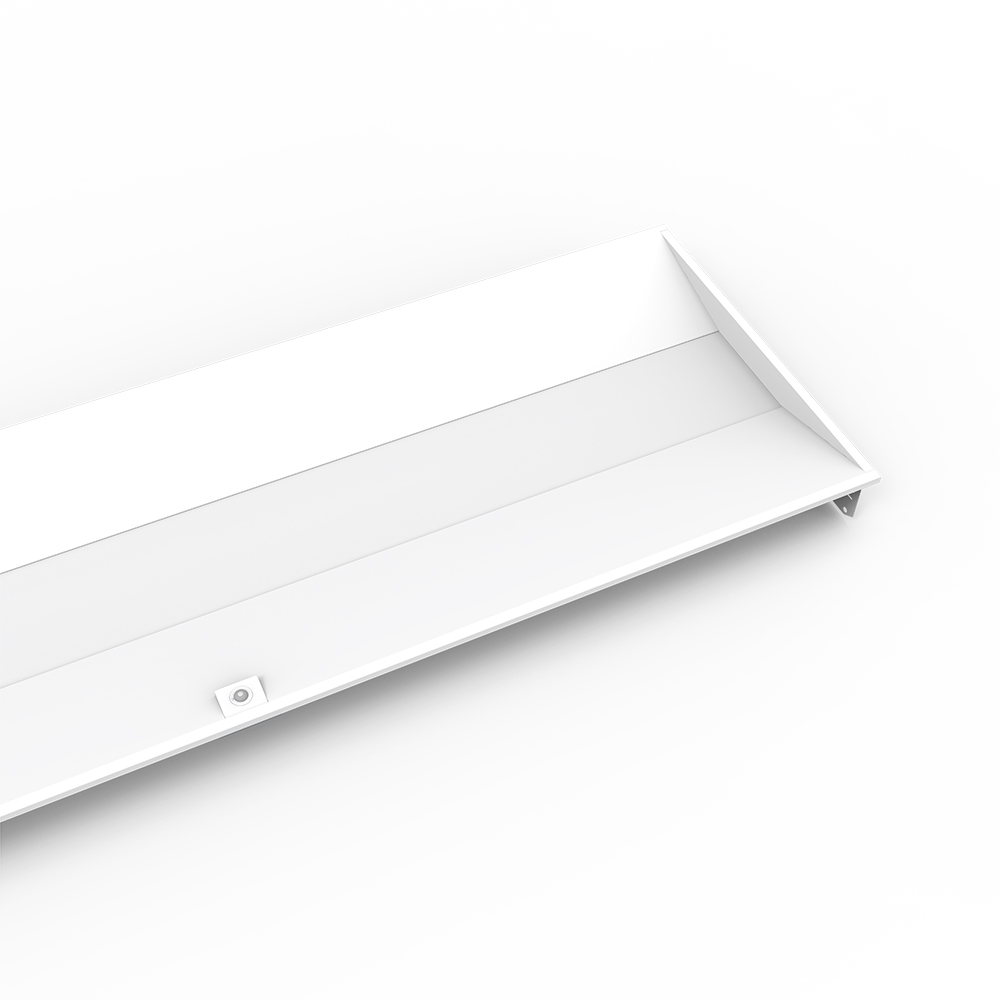

Ektor Horizon: Low-glare, smooth beam semi-recessed troffer

  • Australian made and engineered
  • Quality luminaire made from zinc plated cold rolled steel
  • Wide aperture flat diffuser provides soft-light output with a smooth wide beam angle
  • Customisable to meet specific installation needs (custom lengths, widths, colours, air slot positions)
  • Efficacy of 134lm/W for efficient energy use
  • Versatile applications: Ideal for offices, schools, healthcare, and retail spaces
  • Lower UGR for improved visual comfort
  • Compliance with AS1680 standards
  • Available with built-in emergency and PIR sensors to minimise maintenance and installation costs
  • Zhaga compatible LED board footprint for easy maintenance and circular economy support
  • 53,000hr L90B10 lifespan at 40°C ambient temperature
  • External mounted LED driver for easy maintenance and increased reliability
SKU: Horizon Category: Tag:
Order codeItem codeDescriptionAvailability
HRZ1__-__AG__________CCEktor Horizon {WATTAGE}W - 293mm x 590mm - Two Way Grid - {CRI}CRI - {CCT}00K
HRZ1__-__AG__________CDEktor Horizon {WATTAGE}W - 296mm x 588mm - Two Way Grid - {CRI}CRI - {CCT}00K
HRZ1__-__AG__________CEEktor Horizon {WATTAGE}W - 293mm x 1190mm - Two Way Grid - {CRI}CRI - {CCT}00K
HRZ1__-__AG__________CFEktor Horizon {WATTAGE}W - 296mm x 1188mm - Two Way Grid - {CRI}CRI - {CCT}00K
HRZ1__-__AG__________CGEktor Horizon {WATTAGE}W - 293mm x 1490mm - Two Way Grid - {CRI}CRI - {CCT}00K
HRZ1__-__AG__________CHEktor Horizon {WATTAGE}W - 296mm x 1488mm - Two Way Grid - {CRI}CRI - {CCT}00K
HRZ1__-__AG__________CIEktor Horizon {WATTAGE}W - 393mm x 590mm - Two Way Grid - {CRI}CRI - {CCT}00K
HRZ1__-__AG__________CJEktor Horizon {WATTAGE}W - 396mm x 588mm - Two Way Grid - {CRI}CRI - {CCT}00K
HRZ1__-__AG__________CKEktor Horizon {WATTAGE}W - 393mm x 1190mm - Two Way Grid - {CRI}CRI - {CCT}00K
HRZ1__-__AG__________CLEktor Horizon {WATTAGE}W - 396mm x 1188mm - Two Way Grid - {CRI}CRI - {CCT}00K
HRZ1__-__AG__________CMEktor Horizon {WATTAGE}W - 393mm x 1490mm - Two Way Grid - {CRI}CRI - {CCT}00K
HRZ1__-__AG__________CNEktor Horizon {WATTAGE}W - 396mm x 1488mm - Two Way Grid - {CRI}CRI - {CCT}00K
HRZ1__-__AG__________COEktor Horizon {WATTAGE}W - 593mm x 590mm - Two Way Grid - {CRI}CRI - {CCT}00K
HRZ1__-__AG__________CPEktor Horizon {WATTAGE}W - 593mm x 1190mm - Two Way Grid - {CRI}CRI - {CCT}00K
HRZ1__-__AG__________CREktor Horizon {WATTAGE}W - 596mm x 1188mm - Two Way Grid - {CRI}CRI - {CCT}00K
HRZ1__-__AG__________DIEktor Horizon {WATTAGE}W - 296mm x 1338mm - Two Way Grid - {CRI}CRI - {CCT}00K
HRZ1__-__AG__________DJEktor Horizon {WATTAGE}W - 396mm x 1338mm - Two Way Grid - {CRI}CRI - {CCT}00K
HRZ1__-__AG__________KDEktor Horizon {WATTAGE}W - 446mm x 1338mm - Two Way Grid - {CRI}CRI - {CCT}00K
HRZ1__-__AG__________KJEktor Horizon {WATTAGE}W - 496mm x 1488mm - Two Way Grid - {CRI}CRI - {CCT}00K
HRZ1__-__AG__________KKEktor Horizon {WATTAGE}W - 296mm x 738mm - Two Way Grid - {CRI}CRI - {CCT}00K

*Auto generated datasheet (beta)
