Efficiencies
Total System Efficiency | 200 lm/W |
---|---|
The performance of each component of a luminaire is demonstrated through its efficiencies, which together determine the total system efficiency of the product. The output of the LED chip is first multiplied by the optical and thermal efficiencies to calculate the Luminaire efficiency. However, this calculation does not consider the driver efficiency. To determine the overall efficiency of the system, the Luminaire efficiency must be multiplied by the driver efficiency, which accounts for all losses in the system. |
Mechanical
Body Material | Alluminium alloy |
---|---|
Diffuser Material | Clear plastic |
Fitting Colour | Black |
IK Rating | IK08 |
Installation Type | Suspended |
IP Rating | IP65 |
Electrical
Earth Leakage | 0.75 mA |
---|---|
Electrical Rating | Class I |
Input Current | |
EV-HOVER-SWITCH-ADV-120W-50K | 1.2 A |
EV-HOVER-SWITCH-ADV-200W-50K | 2 A |
Input Frequency | 50 Hz |
Input voltage | 230Vac |
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6% | |
Inrush Current | |
EV-HOVER-SWITCH-ADV-120W-50K | 80 A |
EV-HOVER-SWITCH-ADV-200W-50K | 100 A |
Maximum Wattage | |
EV-HOVER-SWITCH-ADV-120W-50K | 120 W |
EV-HOVER-SWITCH-ADV-200W-50K | 200 W |
Power Selection | |
EV-HOVER-SWITCH-ADV-200W-50K | 100 / 150 / 200 W |
EV-HOVER-SWITCH-ADV-120W-50K | 80 / 100 / 120 W |
Surge Protection L/N-PE | 6kV |
Surge Protection L-N | 6kV |
Working Temp Range | -30 to 50 °C |
Lamp
Macadam Steps (SDCM) | 5-step MacAdam Ellipse |
---|---|
Beam Angle | 120 ° |
CCT Configuration | Single |
Colour Rendering Index (CRI) | >70 |
LED Lifetime
LED Lifetime | >60000 hrs |
---|---|
This is the Reported LED Lifetime in Hours based on TM-21. Ektor does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below. | |
TM-21 Test Hours | 10000 hrs |
Colour temperature

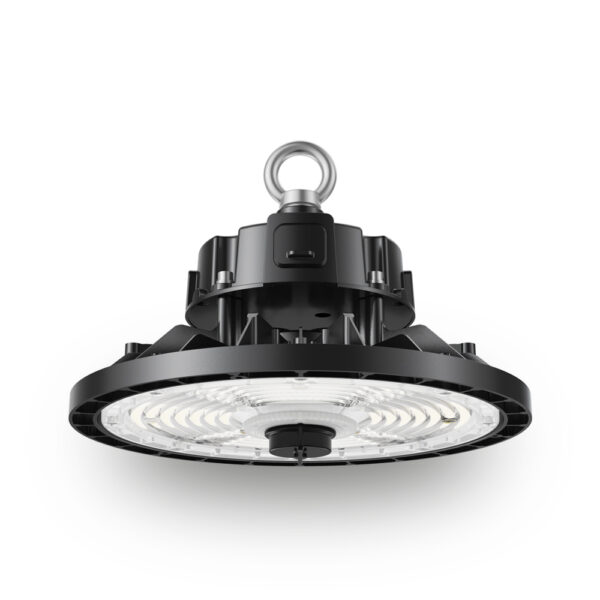

EV-HOVER-SWITCH-ADV-120W-50K
| |||||||||||||||||||

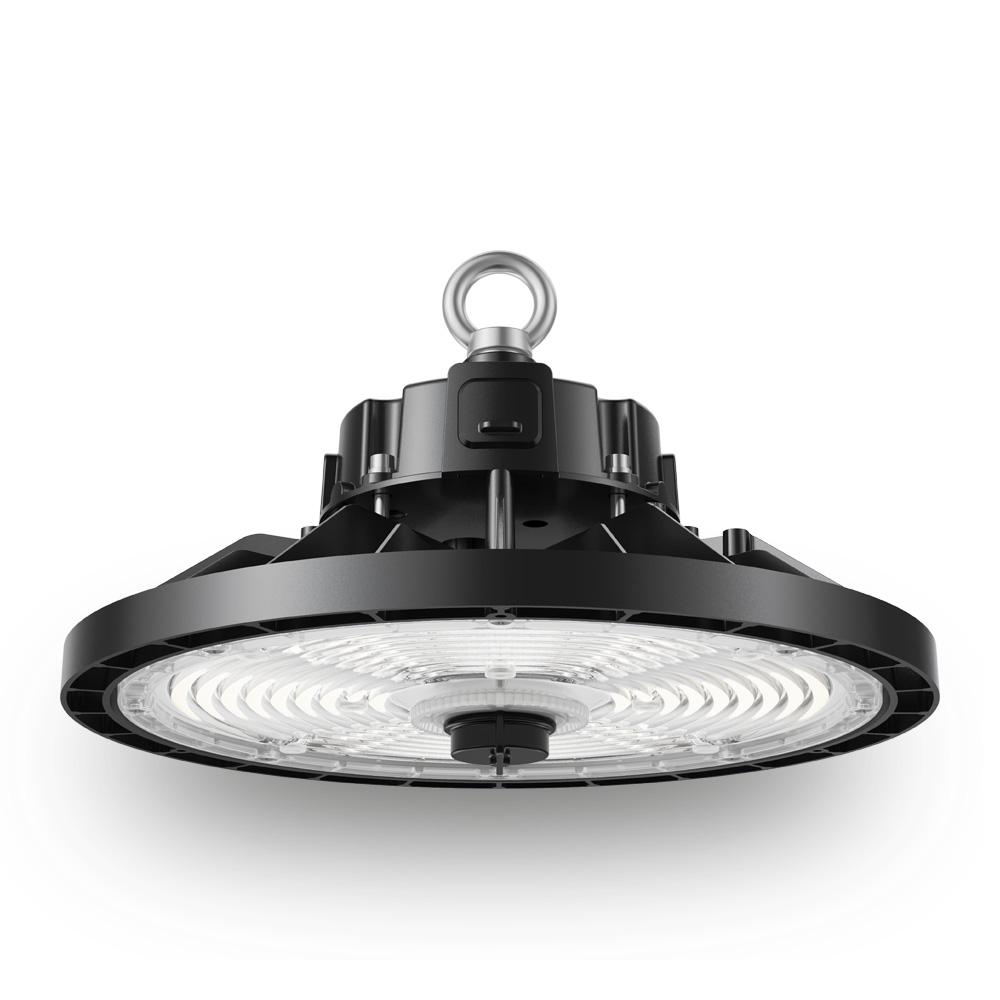

EV-HOVER-SWITCH-ADV-200W-50K
|
Driver
Driver Type | 1-10V dimmable |
---|---|
Flex & Plug or Lead Length | 1500 mm |
Wiring Type | Re-wireable Flex & Plug (3 pin) |
Energy Savings Scheme
Ipart Approval | Yes |
---|---|
REES Approval | Yes |
VEU Approval | Yes |
Compliance
Product Design Life | 8 years |
---|---|
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use. | |
Daily Use | 20 hrs |
The Daily Use is the recommended time required to meet the product's design life. Installations can exceed this time, however the product design life will be reduced proportionally. | |
Standards |
|
Warranty
Commercial Use Warranty | 5 RTB (Total 5 Years) |
---|---|
VIP Warranty | 2 Onsite, 3 RTB (Total 5 Years) |
VIP warranty is available to registered users and is subjected to additional terms and conditions. Register as a VIP today. Our standard warranty is return-to-base. Onsite warranty is only available to users who are registered, for sites located in the defined areas/regions and for purchases that have been registered. | |
Warranty Operating Hours | 25000 hrs |
This product is provided with a warranty up until the stated warranty period or until the stated warranty operating hours has been reached (whichever occurs first). |
