Mercury Core

$0.00

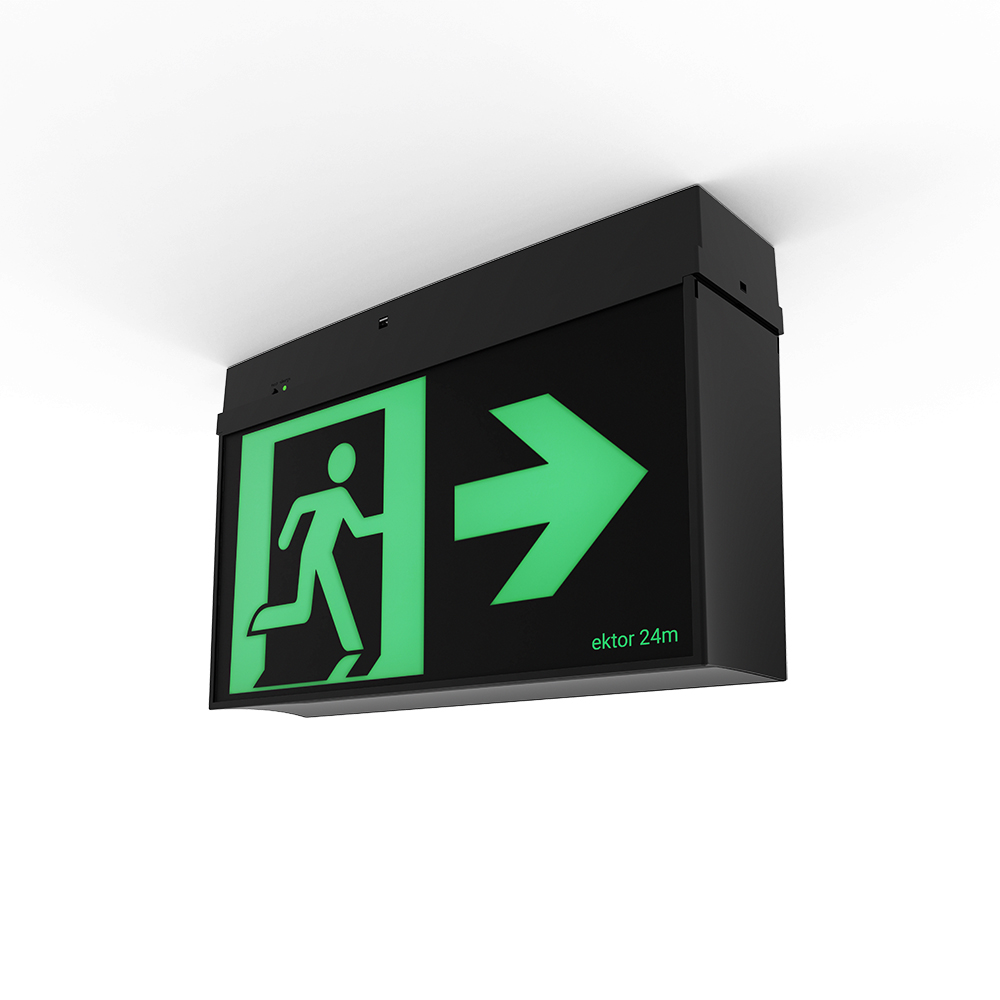

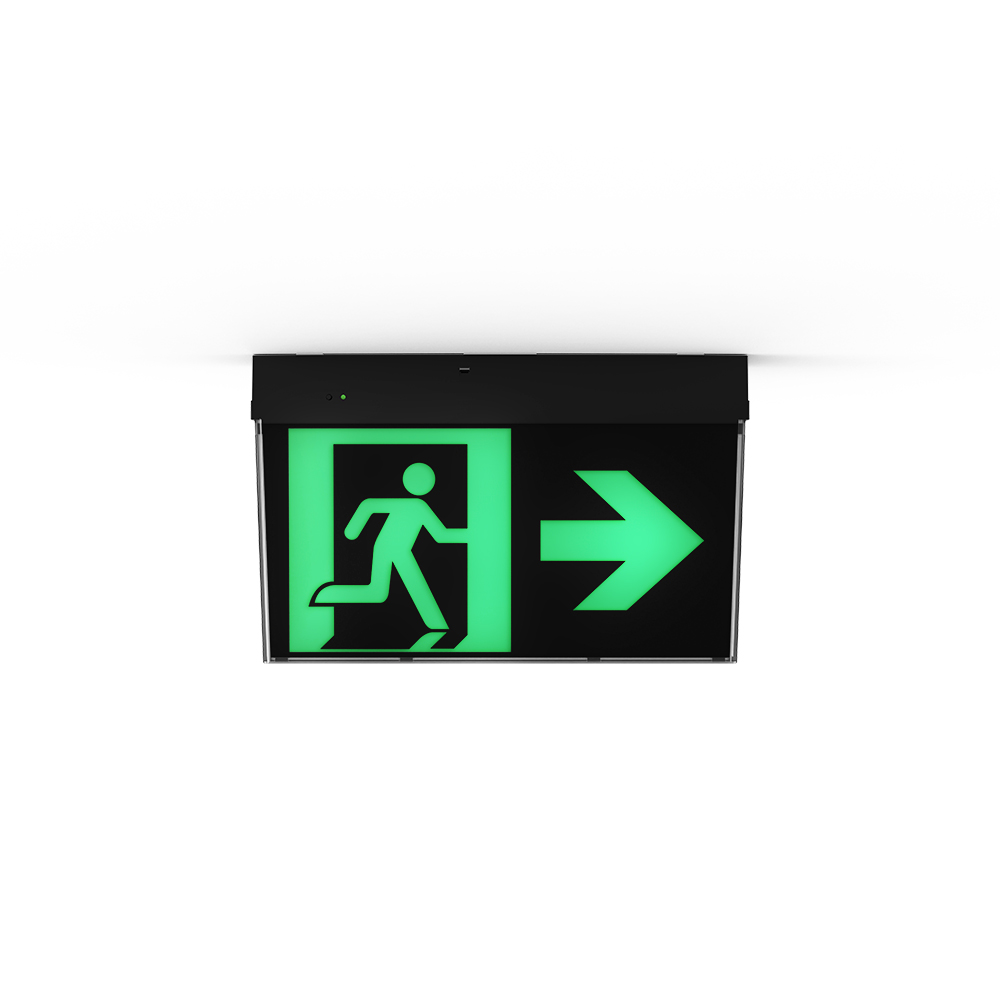

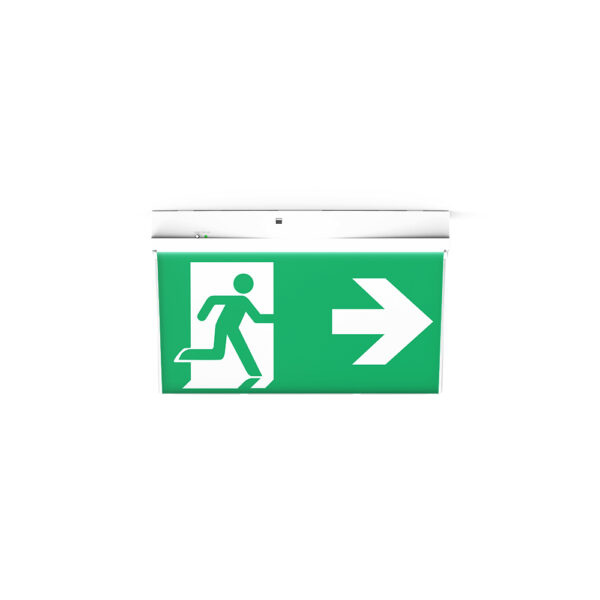

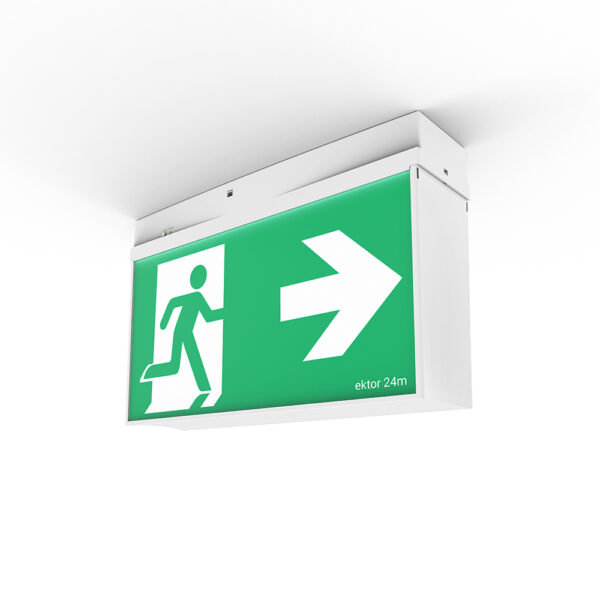

Mercury Core Emergency Exit, 24m

Features

  • Single and double sided decals
  • Fully compliant (AS/NZS 2293)
  • IP65 Weatherproof Case available but not included
  • Wall, ceiling, chain and rod mounting (with Rod Mount Kit)
  • Long life electronics
  • 5 Years Design Life – 44,000 hours at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Standalone (SPU)
SKU: Mercury Core Category: Tags: , ,

Mechanical

Body MaterialPolycarbonate
Diffuser MaterialPolycarbonate
Fitting ColourWhite
Installation TypeWall or Ceiling
IP RatingIP20

Electrical

Electrical Rating (Class)2
Input Frequency (Hz)50
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage (W)3.5
Standby Power (W)2.2
Standby power for maintained emergency devices is measured when the light is on and the charger is in standby. Typically charging occurs for the first 16 hours after the device is powered or after a discharge. For non-maintained emergency devices or DALI controlled devices this is measured when the light is off and charger is in standby mode.
Working Temp Range (C)0 to 40

Lamp

CCT ConfigurationSingle
CRI>80

Colour temperature

CCT (K)6000K
LED Wattage (W)1

Driver

DimmableNo
Driver IncludedYes
Integrated DriverYes
Driver TypeFixed output
Wiring TypeRe-wireable terminal block (3 pin)

Emergency (EM suffix)

Replacement Battery Code01307
Emergency ClassificationC0:D5
Decal Size (mm)300 x 150
Emergency Duration (mins)120
Emergency ModeMaintained
Emergency Output Power (mW)1000
Viewing Distance (m)24

Compliance

Design Life (hr)44000
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3
Product Height (mm)216
Product Length (mm)365
Product Width (mm)95
EV/MERCURY/BASIC

Ordering codeItem codeDescriptionAvailability
11258EV-MERCURY-BASICMercury Basic emergency Exit

Datasheet


*Auto generated datasheet (beta)
Ordering codeItem codeDescriptionAvailability
01307EV-1500mAh-3.2V-LiFePO4-LoomBattery- 500mAh 3.2V -to suit 11190 & 11258
01915EV-CANTILEVERCantilever bracket to suit 3135- 3137- 11258 & 3131
11290EV-MERCURY-BASIC-DPMercury Basic decal pack
03922EV-MERCURY-CASEWeatherproof Case for Mercury
11216EV-MERCURY-CD-2Mercury Clear Decal to suit 11258 and 3135 - 2pk
11220EV-MERCURY-CD-1Mercury custom decal to suit 11258 and 3135 - 1pc
12934EV-MERCURY-DP-USDMercury Basic Decal Pack - Upside down white & green 3 x decals (left- right & straight)
03911EV-MERCURY-WIREGUARD-CEILINGCeiling mounted only Wire guard
05301EV-MERCURY-WIREGUARD-WALLWall mounted only Wire guard
02004EV-RODMOUNT-BLKRodmount Brackets only for roof and luminaire body - Black (Rod size -25mm)
01990EV-RODMOUNT-WHTRodmount Brackets only for roof and luminaire body - White (Rod size 25mm)
EV/MERCURY/BASIC 11258 2hr
