Pearl Professional IP65 – SER II

$0.00

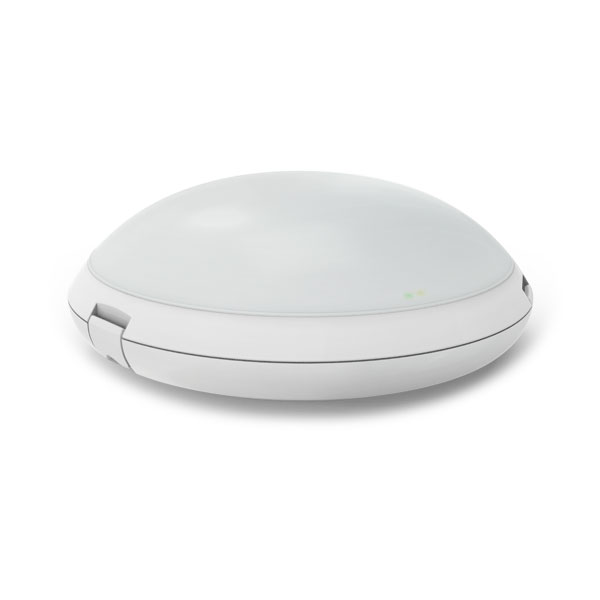

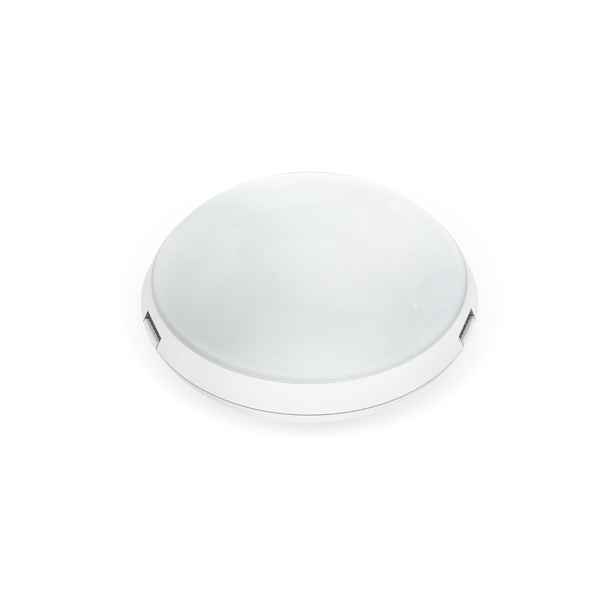

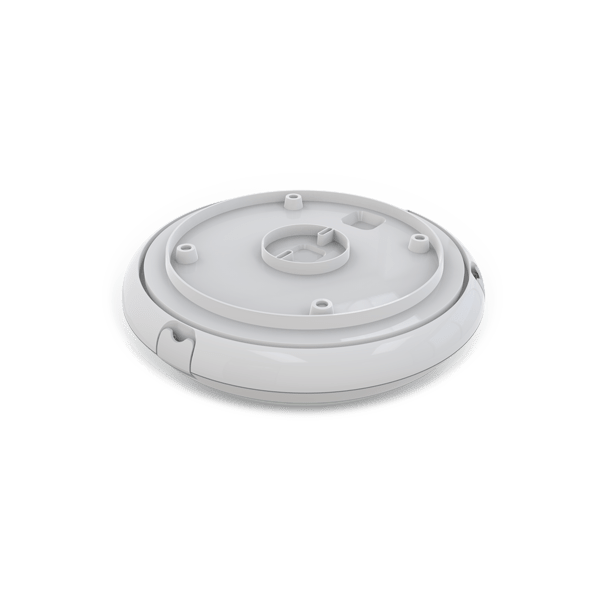

Pearl Professional Circular IP65, 3000-6500K, 450 mm – SER II

  • Vandal-proof IK08 rating
  • IP65 weatherproof rating
  • Power monitoring (DT51)
  • Tuneable white (DT8-Tc) controlled by DALI
  • Flicker-free dimming controlled by DALI
  • 12 years design life at max. ambient
  • DALI (IEC62386)

Selected Models

  • Long life electronics
  • Self-test (AS2293/IEC62034)
  • Fully compliant (AS/NZS 2293.3)
  • Soft-start charger to reduce building load
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Wireless meshing system
  • Microwave sensor suitable for DALI-2 supporting IEC 62386-303
  • LED Lifetime >120,000 hours
  • Emergency models fully compliant (AS/NZS 2293.3)
  • Corridor mode function in standalone operation
  • IEC62386 over IEC62386-104
  • Wireless monitoring via Ektor Lynk upgrade
SKU: Pearl Professional IP65 - SER II Category: Tags: , , , , , ,

Mechanical

IP RatingIP65
IK RatingIK08
Fitting ColourWhite
Body MaterialPolycarbonate
Diffuser MaterialPolycarbonate
Installation TypeSurface mount

Electrical

Working Temp Range0 to 40 °C
Input Frequency50 Hz
Switch TypeInbuilt Mains Rated DALI Switch
A Terminal input has been provided to allow the wiring of a Main rated switch input. This input can be programmed to switch any controlled area when using a DALI-2 compliant control system. This input supports IEC62386-301 (momentary or rocker switches), IEC62386-302 (on /off switches) and IEC62386-303 (mains rated sensor inputs).
Power Factor0.95
Maximum Wattage
EV-PEARL-PRO-IP65
EV-PEARL-PRO-IP65-S
EV-PEARL-PRO-LK
EV-PEARL-PRO-S-LK
25 W
EV-PEARL-EM-PRO-WP-LK
EV-PEARL-EM-PRO-WP-S-LK
EV-PEARL-PRO-IP65-EM
EV-PEARL-PRO-IP65-EM-S
27 W
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Standby Power0.3 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.

Lamp

Colour Rendering Index (CRI)>84
CCT ConfigurationTUNEABLE WHITE
Full support for DALI-2 DT8 has been provided which allows White colour control on a compliant DALI-2 control system. This function can be used to set a desired colour or to transition between colours depending on the time of day.
Macadam Steps (SDCM)3-step MacAdam Ellipse
Lamp/LED voltage33 V
Lamp/LED Current650 mA

LED Lifetime

LED Lifetime>120000 hrs
This is the Reported LED Lifetime in Hours based on TM-21. Ektor does not list the projected or calculated LED lifetime, which is normally longer as TM-21 Addendum B explicitly states "The Calculated and Projected Lp(Dk) are not to be reported". This Lifetime refers to the life of a single LED however the system life is longer since the probability and binomial distribution of all LEDs in the system means that the average led is performing above the specification and compensates for the LEDs falling below.
LED Lifetime Ratings (Failure rate & lumen depreciation)
Ambient Temp (°C)25 °C40 °C
L90B1043000 hrs43000 hrs
This rating defines the performance of the led within its lifetime. L relates to lumen depreciation, where the proceeding number gives the resultant lumen output at the end of it reported lifetime. L70, would mean 30% lumen depreciation which means 70% of its initial output and is tested accordingly to TM-21. The B part refers to failures, which can be define as the percentage of LEDs which fall below the L value in the projected lifetime. A value of B10 refers to 10% failure and a value of B50 refers to 50% failure. After the defined lifetime, the system will reach the defined lumen depreciation and the average led failures is defined by the B rating. The B rating is defined in and tested to IEC62717.
TM-21 Test Hours20000 hrs

Colour temperature

CCT ColourTunable White
Luminaire Lumens>3200 lm
All photometric data has a tolerance of ±10%. Luminaire lumens refers to the exit lumens or delivered lumens from the luminaire.
CCT3000 to 6500

Driver

Driver Type
EV-PEARL-PRO-IP65-EM
EV-PEARL-PRO-IP65-EM-S
DALI DT1 and DT8 Dimmable
EV-PEARL-PRO-IP65
EV-PEARL-PRO-IP65-S
DALI DT8 Dimmable
EV-PEARL-EM-PRO-WP-LK
EV-PEARL-EM-PRO-WP-S-LK
Wireless (IEC62386-104) with DT1 & DT8 Dimmable
EV-PEARL-PRO-LK
EV-PEARL-PRO-S-LK
Wireless (IEC62386-104) with DT8 Dimmable
Dimmable ~ Includes DALI-2 Driver with full support for DT1, DT6 and DT8-tc allowing flicker free dimming and colour control with compliant DALI-2 Application controllers.
DALI DT8 ~ Includes DALI-2 Driver with full support for DT6 and DT8-tc allowing flicker free dimming and colour control with compliant DALI-2 Application controllers.
Wireless ~ Includes Wireless Driver with full support for DT6 and DT8-tc allowing flicker free dimming and colour control with compliant IEC62386-104 Application controllers.
Driver IncludedYes
Integrated DriverNo
DimmableYes
Wiring TypeRe-wireable terminal block (6 pin)
Power MonitoringDALI Device type 51 power monitoring
Inbuilt DALI-2 support for Device type 51 - Power monitoring for use with DALI-2 compliant control systems which allows the reporting of the products total power consumption for power aggregation and measurements.
PSTLM0.08
Short Term Light Modulation (PstLM): The requirement is that PstLM should be less than or equal to 1.0. This metric measures the short-term flicker severity and ensures that flicker is not perceptible or is at a level that does not cause discomfort or health issues.
SVM0.018
Stroboscopic Visibility Measure (SVM): The requirement for SVM is that it should be less than or equal to 0.4. The SVM metric assesses the visibility of the stroboscopic effect, which can make moving objects appear to be stationary or moving in discrete steps, thus ensuring that this effect is minimized in lighting environments to prevent visual discomfort and safety hazards.

Sensor (S suffix)

Sensor TypeMicrowave
Detection Range [1] 10 m
Time DelayVia DALI
Switched OutputNo
Corridor Function [1] Yes
Lux Adjustment [1] No
Manual Override [1] Yes
Dawn Reset [1] No
Dusk Mode [1] No
Adjustable Hold Time [1] Yes
Adjustable Standby Level [1] Yes
Adjustable Standby Period [1] Yes
Adjustable Detection Area / Sensitivity [1] Yes
Sensor Communication [1] DALI 2
[1] Inbuilt DALI-2 Sensor for use with DALI-2 Compliant control systems. Some features and functions are only available for use with DALI-2 Application controllers which support the features. This product also supports a standalone mode for limited use without a DALI-2 application controller.

Emergency (EM suffix)

Emergency ModeMaintained
Emergency ClassificationC0:D40, C90:D40
Emergency Output Power2700 mW
Replacement Battery Code01302
Emergency Duration90 mins
Emergency Control
EV-PEARL-PRO-IP65-EM
EV-PEARL-PRO-IP65-EM-S
DALI Monitored (DT1)
EV-PEARL-EM-PRO-WP-LK
EV-PEARL-EM-PRO-WP-S-LK
IEC62386-104 (Wireless DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
IEC62386-104 ~ Supports wireless test and monitoring over IEC62386-104 using IEC62386-202.

Compliance

Product Design Life12 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3
  • AS/NZS 60598.2.1
  • IEC 62386-102
  • IEC 62386-103
  • AS/NZS 4268
  • AS/NZS 60598.2.2

Warranty

Unexpected Error: strtoupper(): Argument #1 ($string) must be of type string, array give
Product Height135 mm
Product Diameter450 mm
EV/PEARL/EM/PRO/WP
EV/PEARL/PRO/IP65
Wireless Dimmable (DT6/DT8) and Wireless Emergency Test and Monitoring (DT1)
Order codeItem codeDescriptionAvailability
18142EV-PEARL-EM-PRO-WP-LKEktor Lynk Pearl Emergency Circular Pro - 25W IP65 Tuneable white w/wireless
18143EV-PEARL-EM-PRO-WP-S-LKEktor Lynk Pearl Emergency Circular Pro - 25W IP65 Tuneable White w/sensor w/wireless
DALI Dimmable ( DT6/DT8)
Order codeItem codeDescriptionAvailability
11961EV-PEARL-PRO-IP65Ektor Pearl Circular Pro - 25W IP65 Tuneable White
11962EV-PEARL-PRO-IP65-SEktor Pearl Circular Pro - 25W IP65 Tuneable White w/sensor
DALI Dimmable (DT6/DT8) and DALI Emergency Test and Monitoring (DT1)
Order codeItem codeDescriptionAvailability
11963EV-PEARL-PRO-IP65-EMEktor Pearl Emergency Circular Pro - 25W IP65 Tuneable White
11964EV-PEARL-PRO-IP65-EM-SEktor Pearl Emergency Circular Pro - 25W IP65 Tuneable White w/sensor
Wireless Dimmable (DT6/DT8)
Order codeItem codeDescriptionAvailability
18140EV-PEARL-PRO-LKEktor Lynk Pearl Circular Pro - 25W IP65 Tuneable White w/wireless
18141EV-PEARL-PRO-S-LKEktor Lynk Pearl Circular Pro - 25W IP65 Tuneable White w/sensor w/wireless

*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
01302EV-1500mAh-6.4V-LiFeP04LiFePO4 Battery 6.4V 1500mAh
EV/PEARL/PRO/IP65 (EM)
IES File

IES File


EV/PEARL/PRO/IP65 (4000K)
IES File

IES File
