Razor SM Core

$0.00

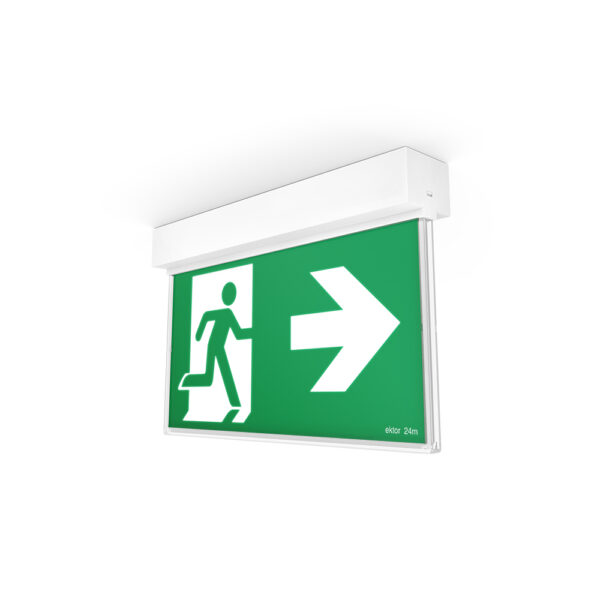

Razor Core Surface Mounted Emergency Exit, 24m

  • Single and double sided decals

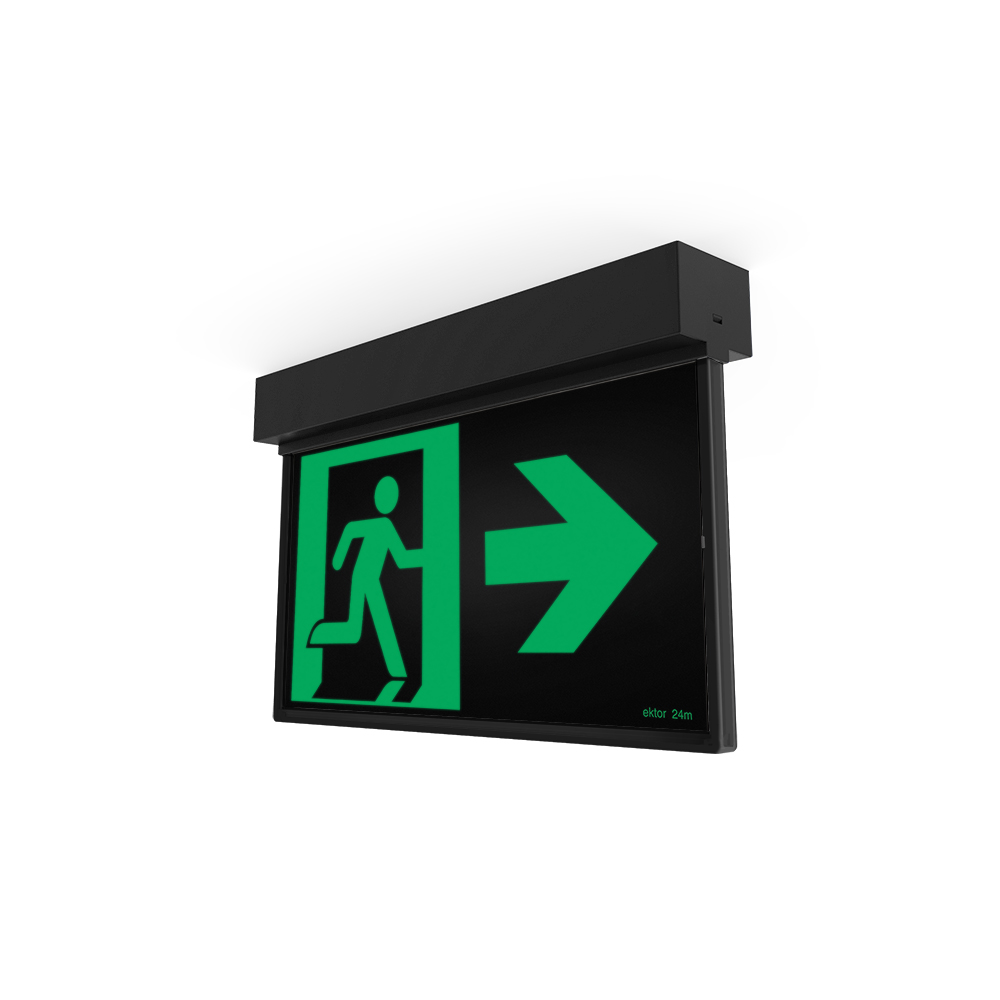

  • Available in low illumination area black model
  • Replaceable easy fit, quick-release decals
  • LED light source
  • Long life electronics
  • 6 years design life at max. ambient
  • High Quality Lithium battery (LiFePO4) and smart charger
  • Standalone (SPU)
SKU: Razor SM Core Category: Tags: , ,

Mechanical

IP RatingIP20
Fitting Colour
EV-RAZOR-SM-CORE-24M-BBlack
EV-RAZOR-SM-CORE-24MWhite
Body MaterialPolycarbonate
Diffuser MaterialPMMA
Installation TypeSurface mount

Electrical

Working Temp Range0 to 40 °C
Input Frequency50 Hz
Maximum Wattage
EV-RAZOR-SM-CORE-24M-B2 W
EV-RAZOR-SM-CORE-24M2.6 W
Input voltage230Vac
In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Standby Power
EV-RAZOR-SM-CORE-24M-B1.7 W
EV-RAZOR-SM-CORE-24M1.9 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.

Driver

Driver TypeFixed output
Driver IncludedYes
Integrated DriverYes
DimmableNo
Wiring TypeRe-wireable terminal block (2 pin)

Emergency (EM suffix)

Emergency ModeMaintained
Emergency ClassificationC0:E6.3, C90:E20
Emergency Output Power1000 mW
Replacement Battery Code13972
Emergency Duration90 mins
Viewing Distance24 m
Decal Size300 x 150 mm
Emergency Light Source Life
EV-RAZOR-SM-CORE-24M-B6Y/04M
EV-RAZOR-SM-CORE-24M78Y/03M
AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign.

Compliance

Product Design Life6 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
Standards
  • AS/NZS 60598.1
  • AS 60598.2.22
  • AS/NZS 61347.1
  • AS/NZS 61347.2.13
  • AS CISPR 15
  • AS/NZS 2293.3

Warranty

Commercial Use Warranty5 RTB (Total 5 Years)
Product Height203 mm
Product Length315 mm
Product Width52 mm
EV/RAZOR/SM/CORE/24M
Order codeItem codeDescriptionAvailability
12123EV-RAZOR-SM-CORE-24MEktor Razor Core Surface-mount Exit light 24M
12124EV-RAZOR-SM-CORE-24M-BEktor Razor Core Surface-mount Exit light 24M - Black

*Auto generated datasheet (beta)
Order codeItem codeDescriptionAvailability
02991EV-RAZOR-24M-DIFFRazor 24M- replacement diffuser blade to suit 02686- including RM Decal pack
02992EV-RAZOR-24M-DIFF-BRazor 24M-replacement diffuser blade to suit 02687-including RM Decal pack-Black
02987EV-RAZOR-24M-DPRazor 24M decal pack to suit SKU# 02686 & BOXIT-SLIM SKU #15053
02988EV-RAZOR-24M-DP-BRazor 24m decal pack - Black to suit 02687
15196EV-RAZOR-SM-CORE-WBWall Bracket to suit EV-RAZOR-SM-CORE - White
