In Australia the Input voltage is defined as 230Vac -6%/+10%. This effectively means that the voltage range of these products are 216Vac - 253Vac or 240V +6%
Maximum Wattage
EV-RAZOR-SM-PRO-24M-B-DA
2 W
EV-RAZOR-SM-PRO-24M-DA
2.6 W
Standby Power

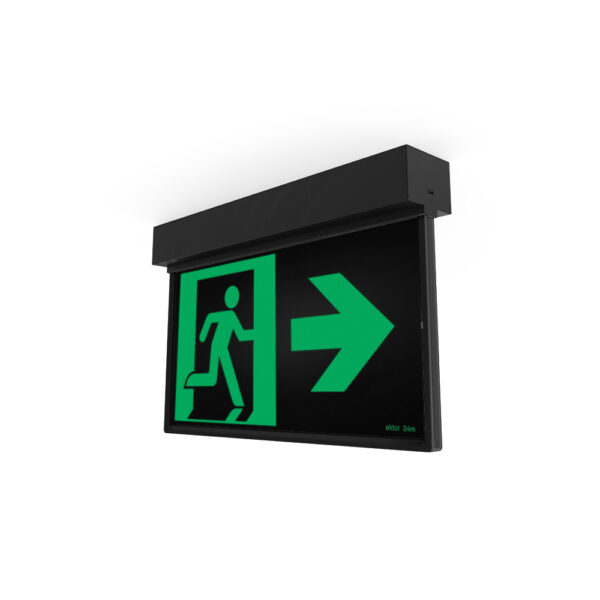

EV-RAZOR-SM-PRO-24M-B-DA
1.7 W

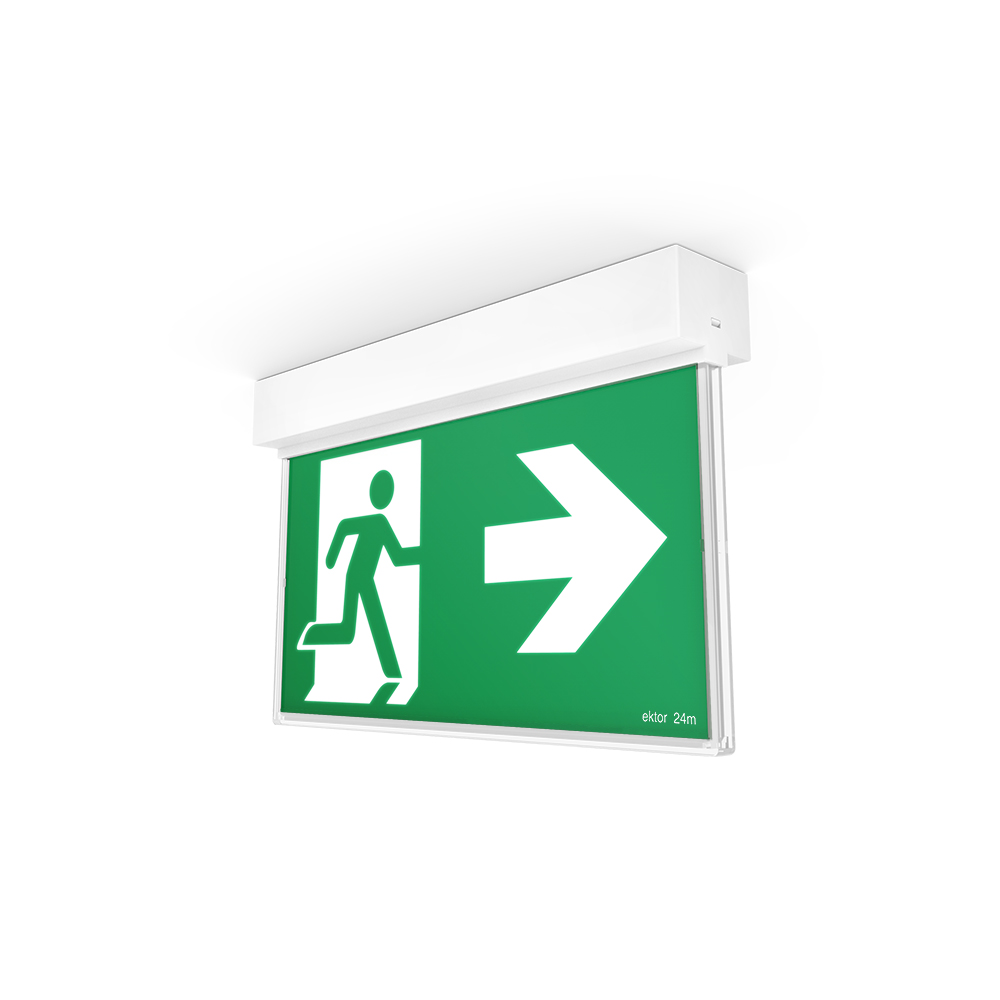

EV-RAZOR-SM-PRO-24M-DA
1.9 W
Standby power for non-maintained/switched maintained emergency devices is measured when the light is off and the charger is in standby mode. For maintained emergency devices, standby power is measured when the light is on and the charger is in standby mode. Typically, charging occurs for the first 16 hours after the device is powered or after a battery discharge.
Working Temp Range
0 to 40 °C
Driver
Driver Included
Yes
Integrated Driver
Yes
Driver Type
DALI DT1 Emergency
Wiring Type
Re-wireable terminal block (5 pin)
Emergency (EM suffix)
Replacement Battery Code
13845
Emergency Control
DALI Monitored (DT1)
DALI Monitored ~ Supports Emergency test and monitoring over DALI (IEC62386) with full compliance to IEC62386-202.
Decal Size
300 x 150 mm
Emergency Duration
90 mins
Emergency Light Source Life
EV-RAZOR-SM-PRO-24M-DA
34Y/04M
EV-RAZOR-SM-PRO-24M-B-DA
51Y/01M
AS2293.3-2018 Projection of Light source life for LED Exit signs (appendix E) Defines the projected time until the surface luminance falls below the minimum required surface luminance for an exit sign.
Emergency Mode
Maintained
Emergency Output Power
EV-RAZOR-SM-PRO-24M-B-DA
350 mW
EV-RAZOR-SM-PRO-24M-DA
650 mW
Viewing Distance
24 m
Emergency Classification
C0:E6.3, C90:E10
Compliance
Product Design Life
12 years
The product design life relates to the total product life which includes LEDs, drivers and the enclosure. This is different to the LED lifetime which only refers to the economical lifetime of the LEDs at which time the lumen output has dropped below the L Value. The product design life is calculated at the maximum ambient or working temperature of the product and takes into account the Daily Use.
