New Pearl range – Special Order Only

Pearl IP20 Lite in-stock now

Find it here
Client logo

Product range
Order code Description
  • EV-Pearl-em-ip20
  • Legacy code: EV-3013-em-lite

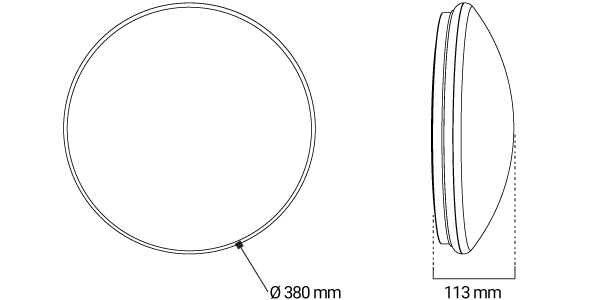

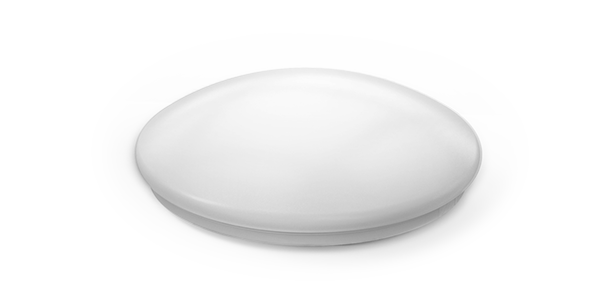

 Pearl Circular IP20 Emergency, Tri-Colour, Ø380 mm
GENERAL FEATURES
  • Tri-colour selection
  • Insect resistant twist and lock seal
EMERGENCY MODELS (-EM)
  • Fully compliant (AS/NZS 2293.3)
  • High Quality Lithium battery (LiFePO4) and smart charger
BUILT TO LAST
  • Long life electronics
  • 5 Years Design Life – 44,000 hours at max. ambient
SUITABLE INSTALLATION TYPES (OUT OF THE BOX)
  • Standalone (SPU)

This is an emergency product This product is also available as a non-emergency at Atom.

Downloads

Specifications

  • Datasheet Leaflet
  • DWG
  • Revit

Leaflets

  • Selection Guide - Choosing a Product Line
  • Chemical Resistance
  • Visit Downloads for more

Compliance

  • Specification: Emergency Luminaires
Client logo

Specifications
General
Supply voltage 240V ~ 50Hz
Ambient temperature 0 to 40°C
Class 2
CRI >80
Wiring Terminal block (1-16 mm □)
IP rating  IP20
Mounting type Surface
Detection range ø8 m (at 3 m height)
Lamp power 26 W
Light colour Colour temp. Lumens
Warm White 3000K 1865lm
Cool White 4000K 2100lm
Daylight 5000K 1925lm
Emergency
Rated duration 90 / 120 min
Classification D20
Compliance
Standards
  • AS/NZS 60598.2.22
  • AS/NZS 2293.3
  • IEC 60598-2-22
  • CISPR 15
Construction
Body Powder coated steel
Diffuser PC
Battery
Type  LiFePO4
Voltage 6.4 V
Code 01302
Charger
Type Smart charge
Time  16 hours

Accessory range
Order code Description
EV-1500MAH-6.4V-LIFEPO4 1500mAH 6.4V 2 Cell LiFePO4 Battery
