The Pearl range

Class leading circular luminaires

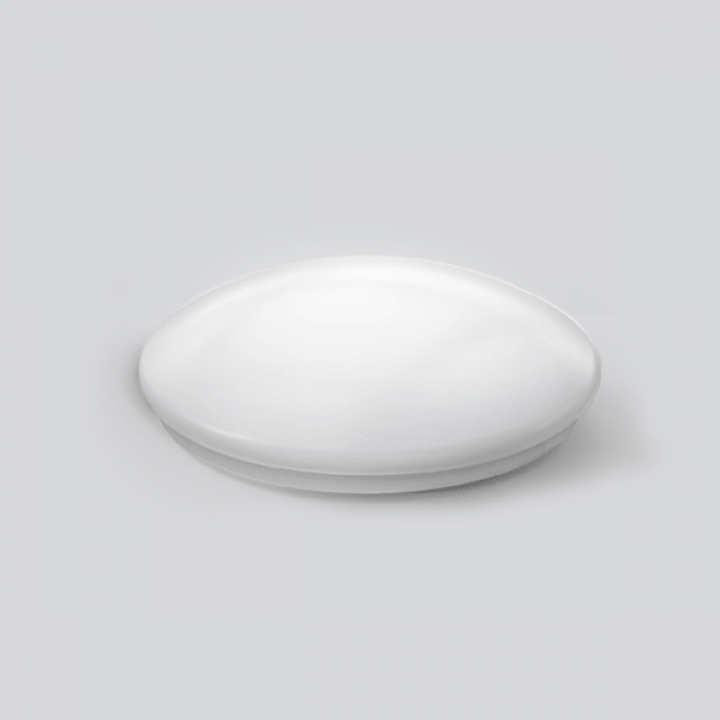

Image module

Ø 380 mm, IP20

Core

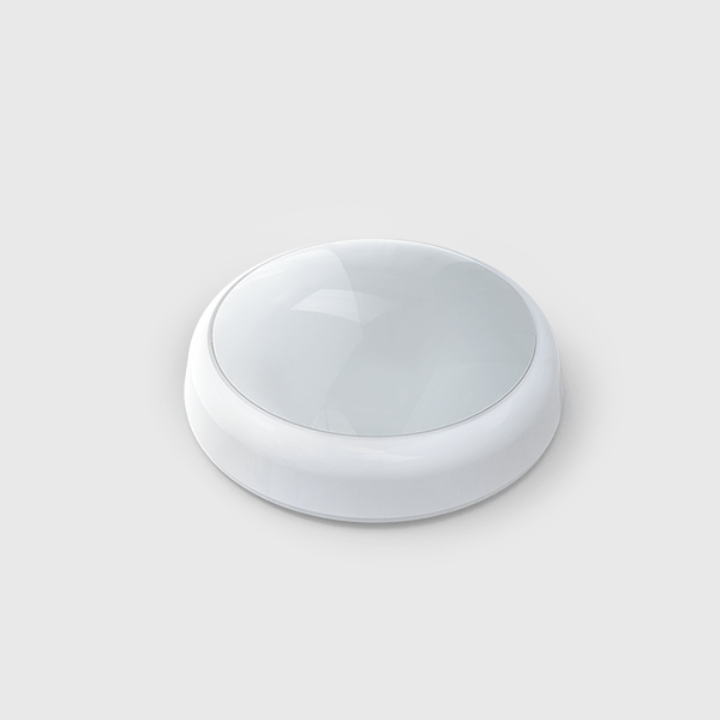

Image module

Ø 325 mm, IP54

Advanced

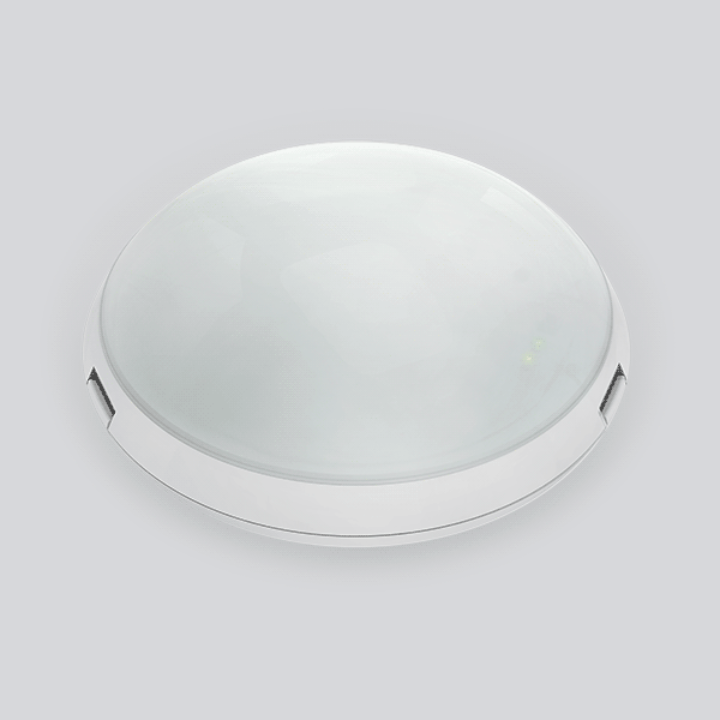

Image module

Ø 450 mm, IP65

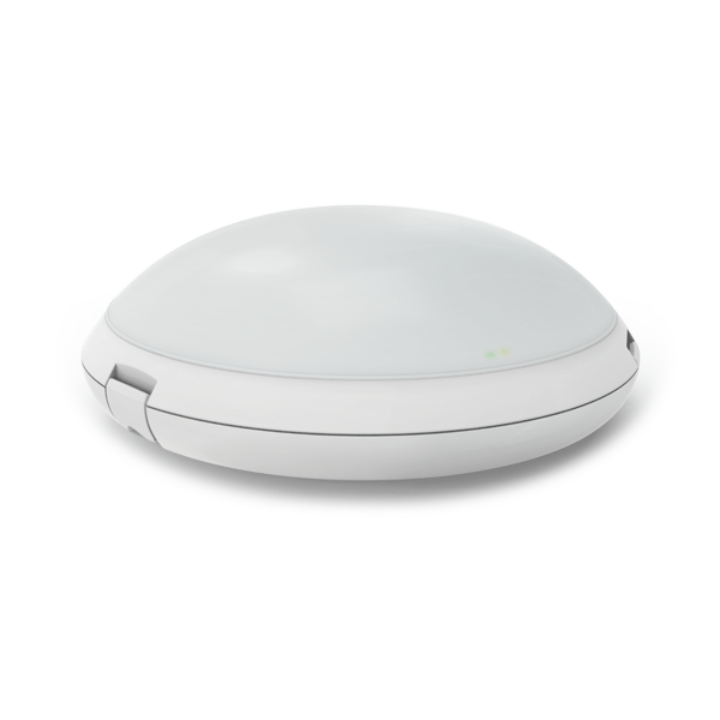

Professional
Corridor mode
Corridor mode, optimized for use in walkways available on Advanced/Lite and Professional models
DALI Certified

Fully compatible and certified to the DALI standards. DALI certification is the best way to reduce risk and ensure compatibility

Wireless mesh

With zencontrol technology the Pearl will automatically test and sync data to the zencontrol IoT Cloud

Self test

Commission the product to perform its own tests. Automate your testing with smart emergencies to reduce site time and overall costs.

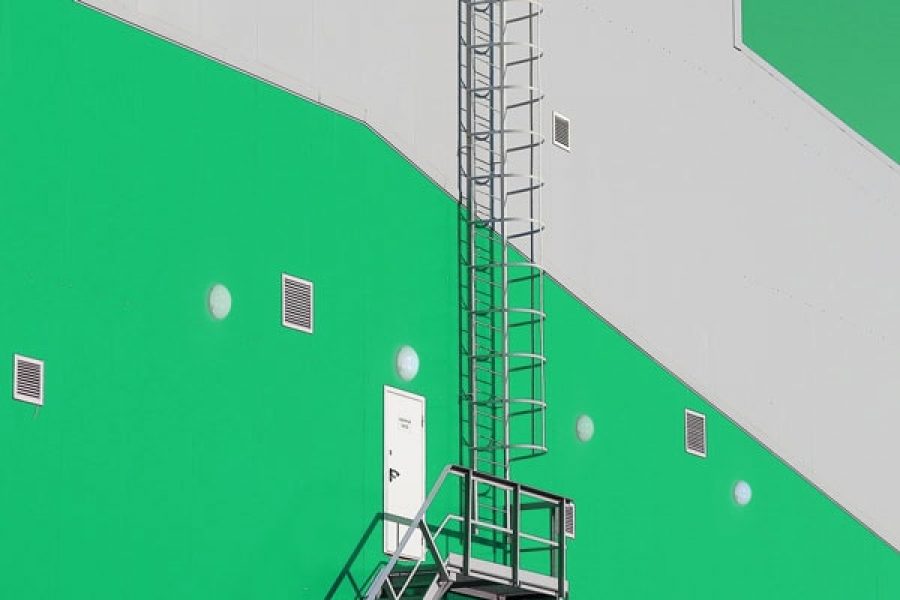

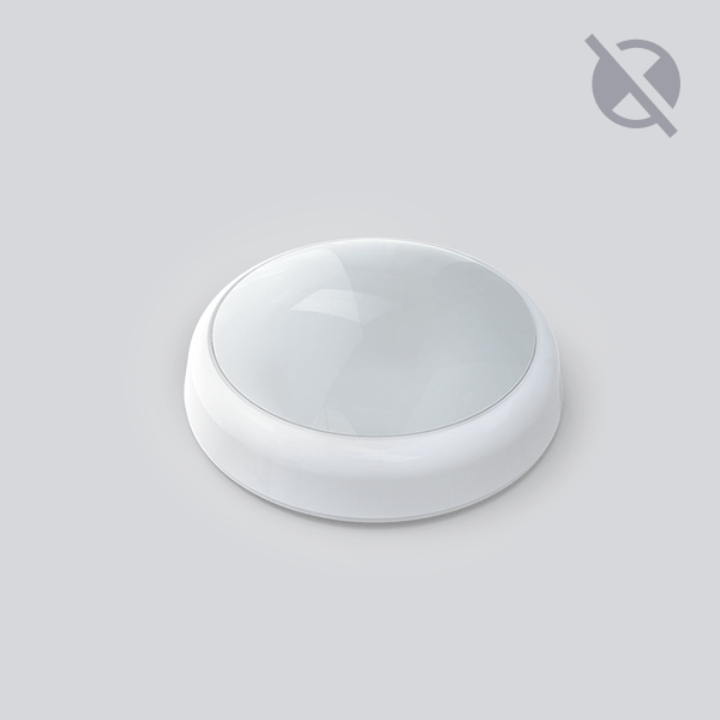

Emergency and non-emergency

Keep your lighting streamlined with matching Emergency and non-Emergency models. Both models offer the same class leading features, such as DALI dimming, corridor holding and great design.
Image module
Image module

Wireless meshing

Connect emergency product's into a wireless mesh for simpler and easier emergency testing and monitoring. Our wireless mesh is based on industry-standard DALI protocols over IEC62386-104 making it compatible with other compliant systems
More info
Image module

Software solutions

Ektor products are made to work and perfectly integrated with zencontrol smart technology meaning we can offer a range of software solutions to boost what you get out of your exit.

Head to zencontrol.com for more details
Image module
zencontrol

Onsite

An onsite headend software package and commissioning tool

zencontrol

Cloud

A state-of-the-art cloud platform that allows the maintenance of all your sites from one location

zencontrol

Commissioning

The integrators tool kit for commissioning Cloud- connected sites

zencontrol

Tablet

No Cloud-connection, 1000 devices, DALI and Wireless mesh options, can produce test results and is device-centric

Image module

Power monitoring

Inbuilt power metering allows the reporting of the device's power consumption. With the zencontrol Cloud or another compatible system, a user can understand the power consumption and its performance. Available on 4th and 3rd Generation products with wireless mesh upgrade.
Learn about Smart emergency
Image module

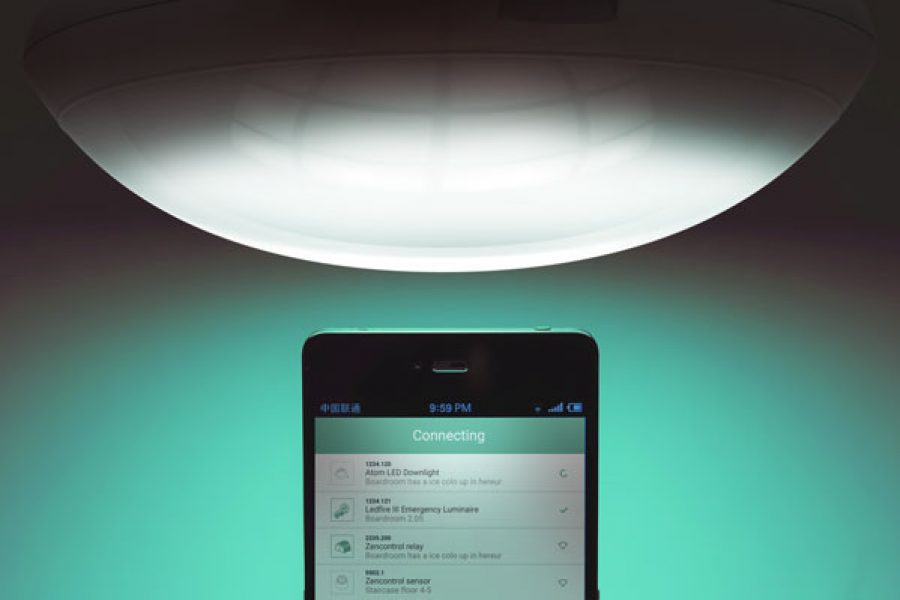

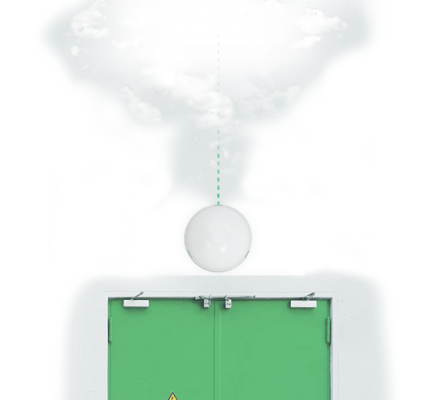

IoT Cloud

Our smart devices can be connected to the zencontrol cloud allowing remote testing and monitoring. Monitor all your sites from a single location with class leading features.
Learn about Smart emergency

Sensors

DALI Microwave sensors are available in the Professional range of Pearls and provide standalone or smart control.

Sensors provided in the Professional Pearls are fully DALI-2 compliant for use with DALI-2 control systems. Alternatively, an installer can configure the sensor via a remote for standalone control.

Image module
Image module

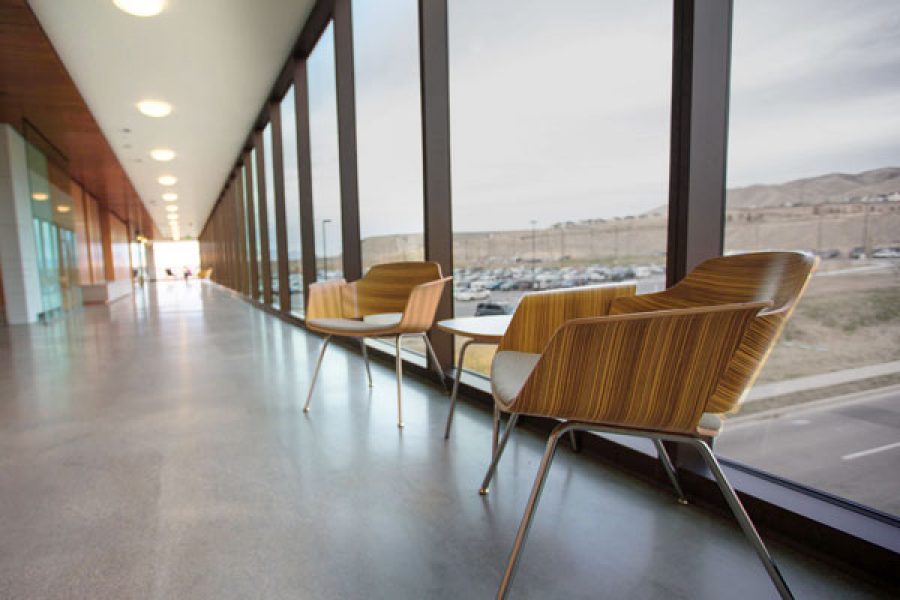

Corridor hold

Our sensor-enabled Lite/Advanced and Professional Pearl models can hold the corridor or carpark lighting at a minimum lighting level when no occupants are detected, saving money and increasing the safety of your buildings occupants.

Insect resistant

The twist and lock system on our Core/Basic and Advanced/Lite models makes for easy mounting and makes a strong seal to avoid insects getting into and accumulating inside your fitting.
Image module
Image module

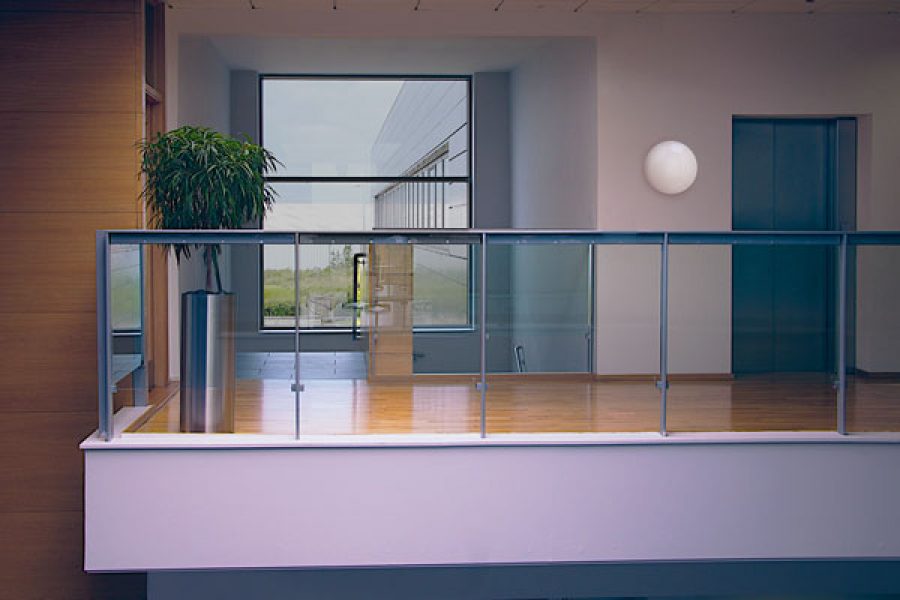

Colour change options

The Core/Basic and Advanced/Lite models are available in tri-colour or single colour options Our Professional models have colour tuneable white that allows you to adjust the colour for a better working environment. The Professional range is fully dimmable providing smooth, user-friendly control of room brightness. The sensor-enabled models also support corridor mode which has been specifically adapted for use in corridors and long rooms

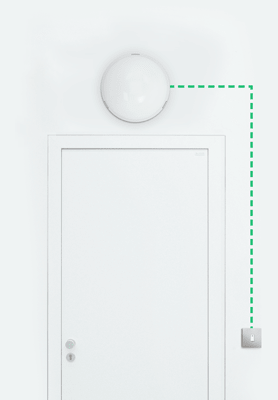

DALI-2 controls included

Our DALI enabled products also included a smart input which allows the addition of standard mains rated switches and sensors to be connected. These switches and sensors can be used within any DALI-2 control system as full function DALI-2 devices.
Learn about DALI at zencontrol.com
Image module
Image module

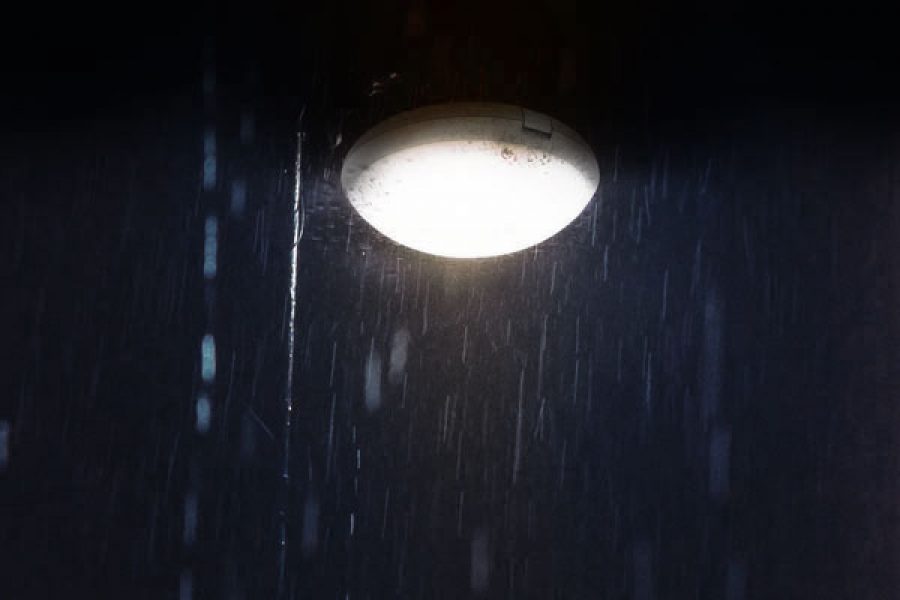

Weatherproof ratings

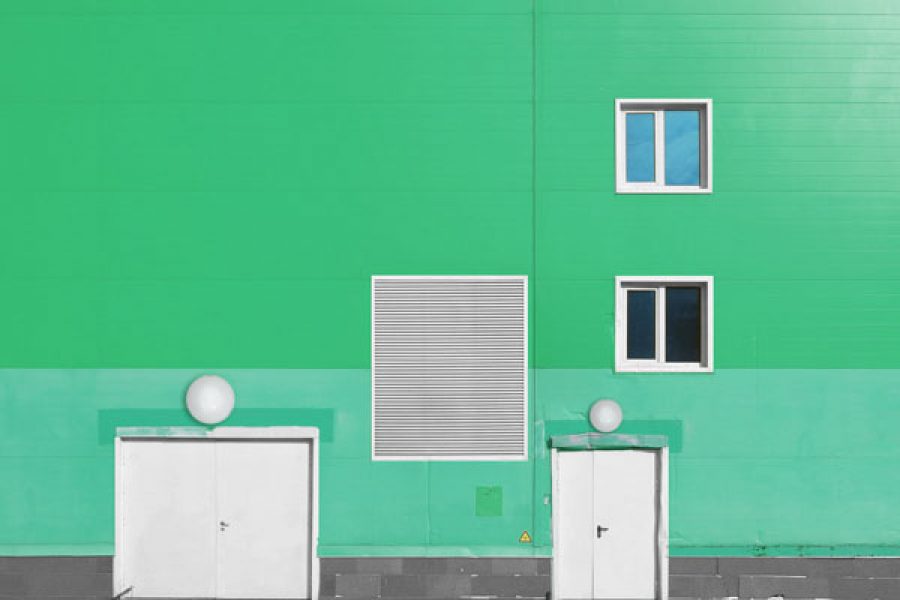

For those tougher and more demanding environments, the Pearl range provide levels of protection against dust and weather with an IP64+ ingress rating.

Full Featured DALI

The Ektor Professional range of Pearls are supplied with full DALI features without compromise.

  • DALI-2 dimming (DT6)
  • DALI-2 Tuneable white (DT8-Tc)
  • DALI emergency (DT1)
  • DALI sensors (Part 303 Motion sensors & Part 304 Light level sensors)
  • DALI switches (Part 301 Pushbutton & Part 302 Absolute)
  • DALI power metering (DT 51)
Image module

Three Value Product Lines

Choosing the correct line is essential to ensure the requirements of your application are met

Core
Reliability and Quality on a budget
  • High Quality Lithium (LiFePO4) battery
  • Emergency and non-Emergency models available
  • Tri-colour selection
  • Low power consumption
  • Fully compliant
  • 6 years design life at max. ambient
Advanced
Reliability and Quality in a standard form factor
  • High Quality Lithium (LiFePO4) battery
  • Emergency and non-Emergency models available
  • Tri-colour selection
  • Inbuilt Microwave Sensors
  • Corridor mode
  • IP54, weatherproof rating
  • Low power consumption
  • Fully compliant
  • 8 years design life at max. ambient
Popular
Professional
Class Leading Features, highest reliability and lowest power options
  • High Quality Lithium (LiFePO4) battery
  • Emergency and non-Emergency models available
  • Tuneable white (DALI device type 8)
  • DALI Microwave Sensors
  • Corridor mode
  • Fully DALI dimmable ( DT6, DT8,DT1)
  • Full DALI-2 controls, DALI switch (301, 302) and DALI sensors (303)
  • IP65, weatherproof rating
  • Lowest power consumption
  • Smart Charge
  • Self test

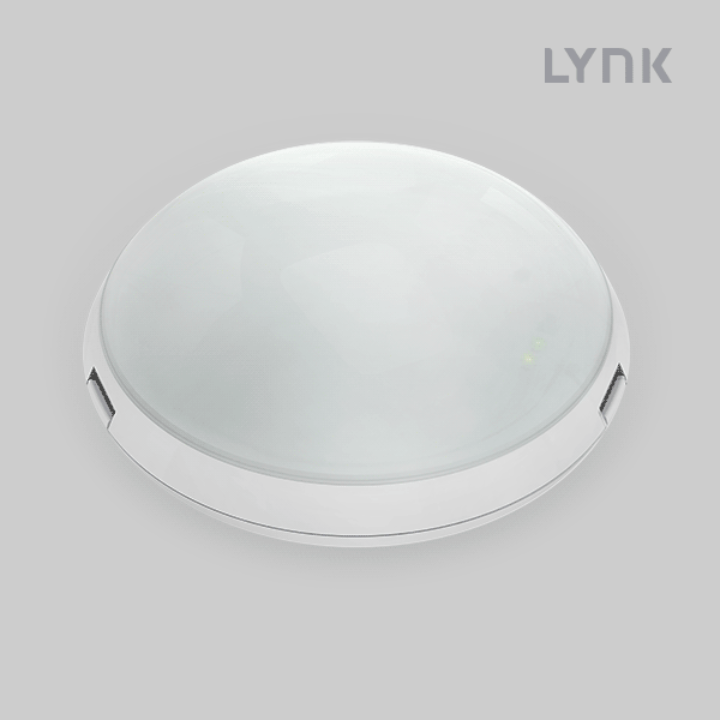

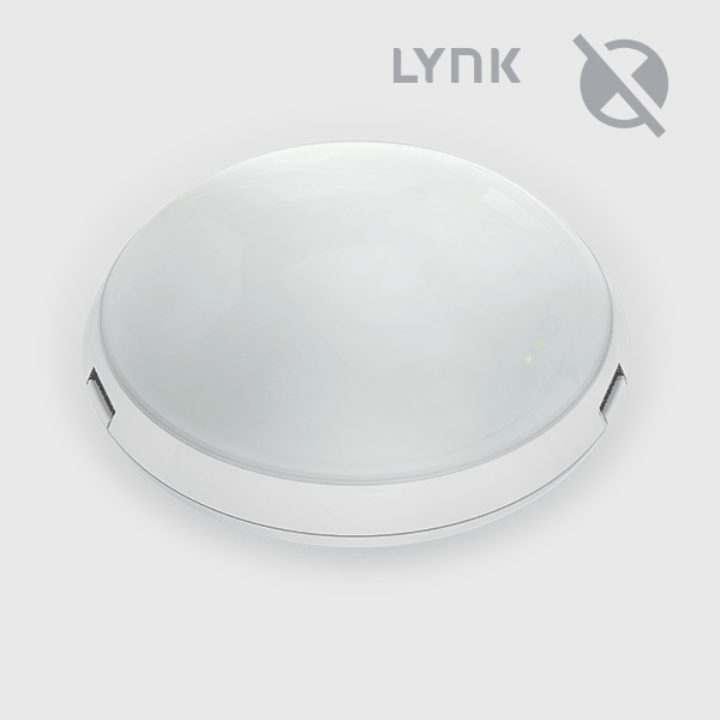

  • Lynk wireless mesh option
  • Fully compliant
  • 12 years design life at max. ambient

The Pearl range

Check out more information and downloads related to the range

Pearl Gallery

Be inspired by the Pearl range
